HELIX IK ES10.1-DVC2 MK2

IK ES10.1-DVC2 MK2 – 2 x 2 Ohms

Power handling RMS P 300 Watts

Recommended amplifier power RMS 150 - 300 Watts

Impedance z 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω

Max. linear excursion Xlin +/- 6 mm

Max. mechanical excursion Xmax +/- 15 mm

Port tuning frequency Fb 37 Hz

Sensitivity

SPL

91 dB @ 2.83V / 1m

88 dB @ 1W / 1m



Dimensions (H x W x D)

135 x 725 x 350 mm

5.3 x 28.5 x 13.8″



Integrated subwoofer chassis HELIX IK S10-DVC2

Recommended DSP settings ″Self-define″ highpass 37 Hz / Q = 1.2

EQ filter: 95 Hz / Q = 0.7 / -3 dB

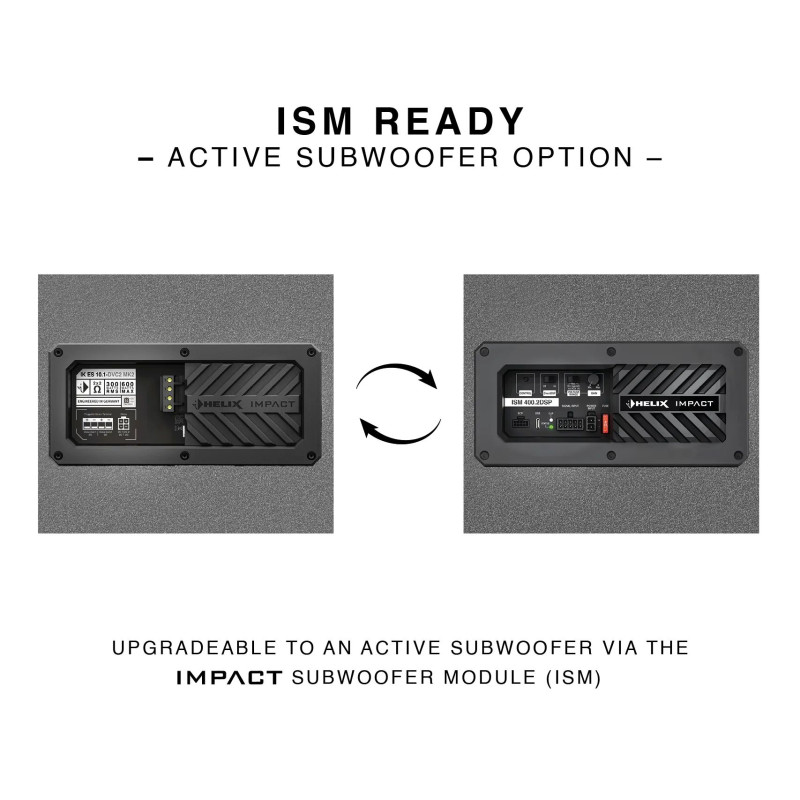

Compatibility



IMPACT Subwoofer Module:

HELIX IMPACT ISM 400.2DSP



Scope of delivery

1 x Downfire enclosure subwoofer IK ES10.1-DVC2 MK2

1 x Data sheet
