HELIX AMPLIFY 201 DIRECT

Power RMS ≤ 1% THD+N @ 14.4 V

- @ 4 Ohms 1 x 250 Watts

- @ 2 Ohms 1 x 450 Watts

- @ 1 Ohm 1 x 750 Watts*

- bridged @ 4 Ohms -

- bridged @ 2 Ohms -

Max. output power per channel Up to 850 Watts RMS @ 1 Ohm

Amplifier technology Class D

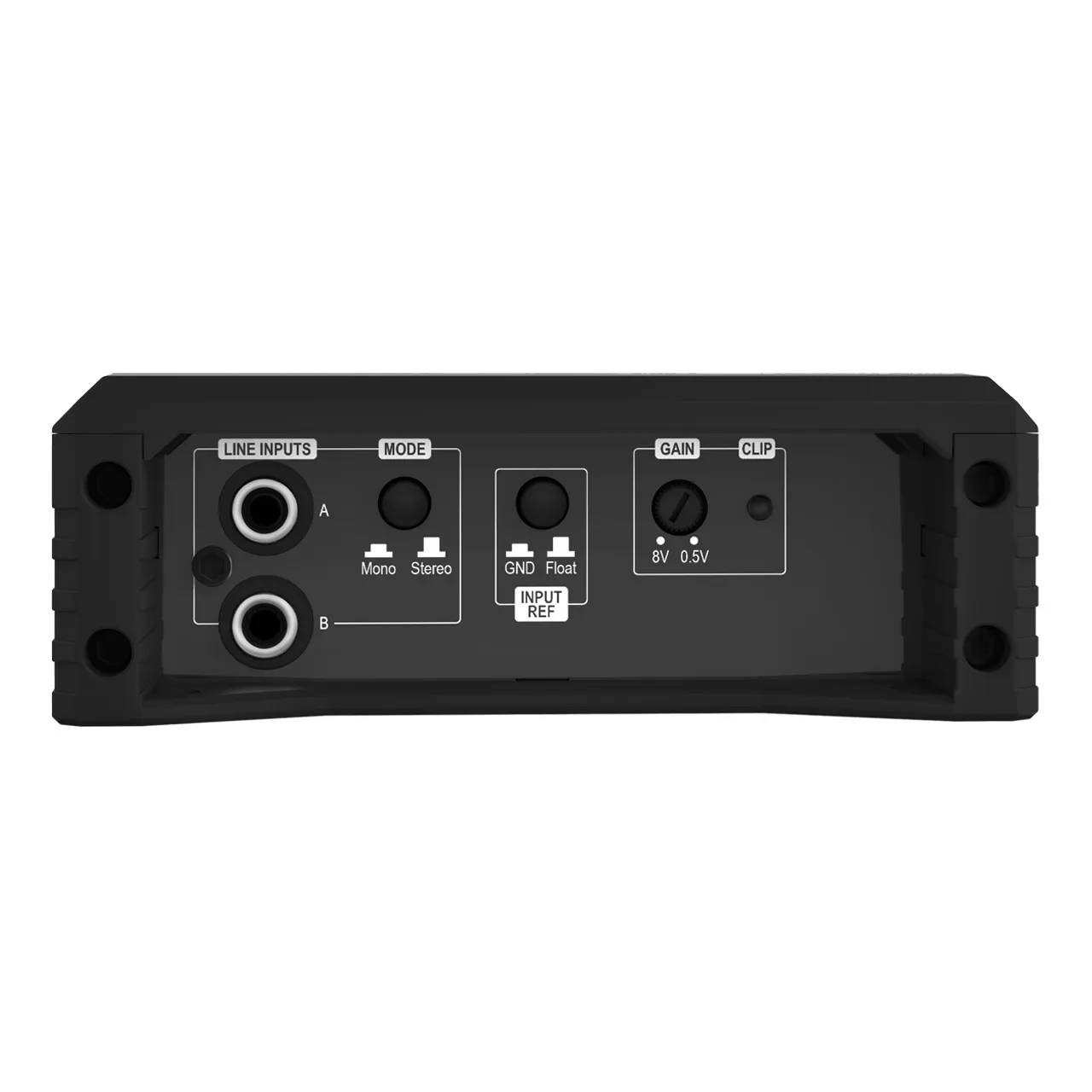

Inputs 2 x RCA / Cinch

1 x Remote In

Input sensitivity 0.5 - 8 Volts

Input impedance 8 kOhms

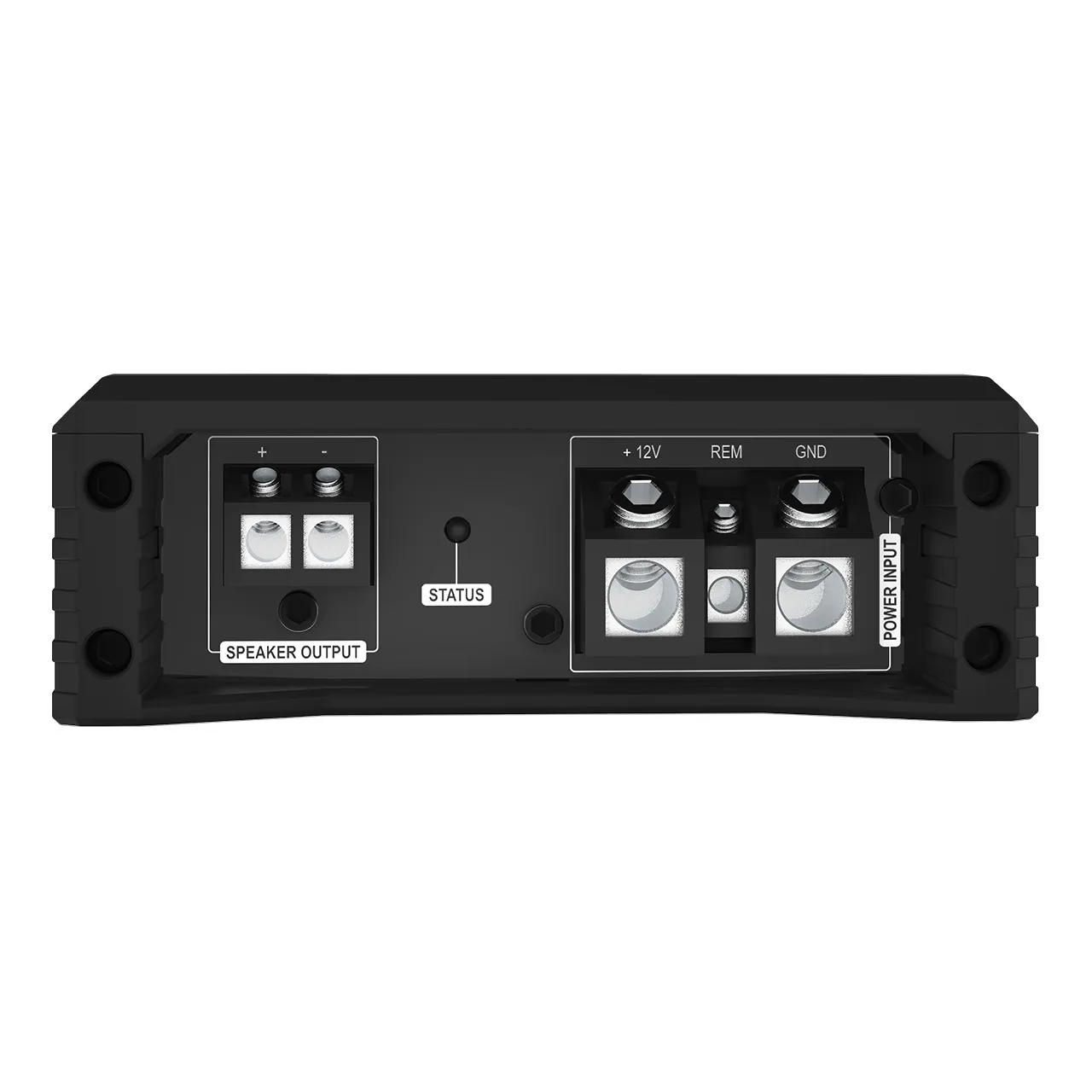

Outputs 1 x Speaker output

Output voltage RCA / Cinch -

Signal converter for digital input -

Frequency response 10 Hz - 450 Hz

Bass boost -

Highpass -

Lowpass -

Bandpass -

Subsonic -

Phase -

Slope high- / lowpass -

Slope subsonic

Slope subsonic / lowpass -

Signal-to-noise ratio (A-weighted) 114 dB @ full power

Distortion (THD @ 1 kHz, 1 W into 4 Ohms) -

Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms) -

Distortion (THD @ 100 Hz, 1 W into 4 Ohms) 0.003%

Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms) 0.02 %

Damping factor 200

Operating voltage 10.5 - 16 Volts (max. 5 sec. down to 6 Volts)

Idle current 1,100 mA

Fuse 2 x 30 A LP-Mini-fuse (APS)

Power rating DC 12 V ⎓ 80 A max.

Operating temperature range -40 °C to +70 °C

Additional features Start-Stop capability, Clipping LED, DirectDSP inputs

Dimensions (H x W x D) 40 x 248 x 114 mm /

1.58 x 9.76 x 4.49”

* Continuous 1 Ohm power achieved only with music signal



Scope of delivery

1 x Verstärker HELIX AMPLIFY 201 DIRECT

2 x Inbusschlüssel

1 x Befestigungsmaterial

2 x Sicherung

1 x Bedienungsanleitung
