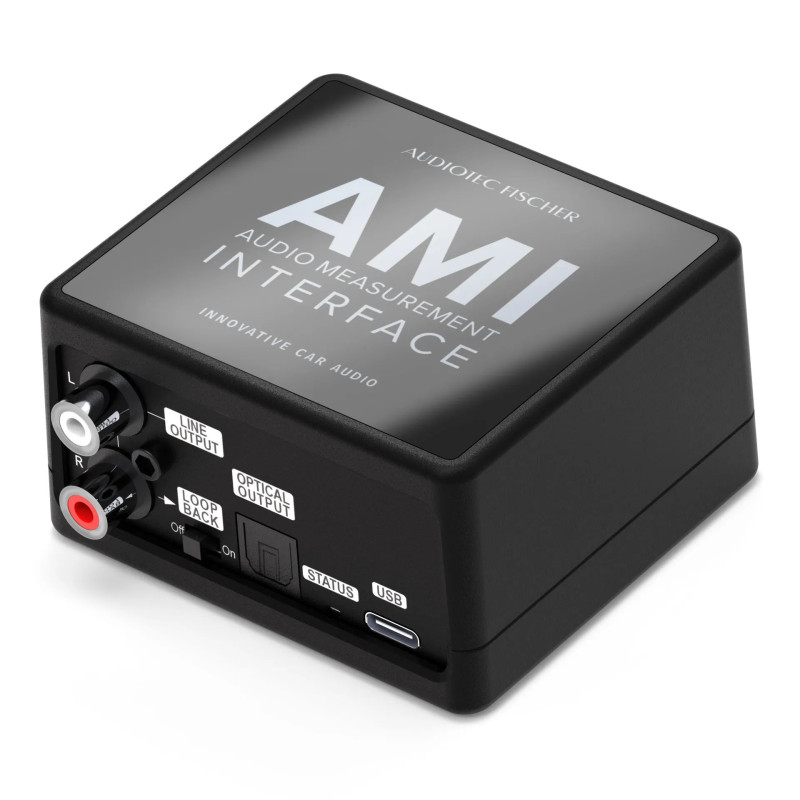

Audiotec Fischer AMI Tuning kit

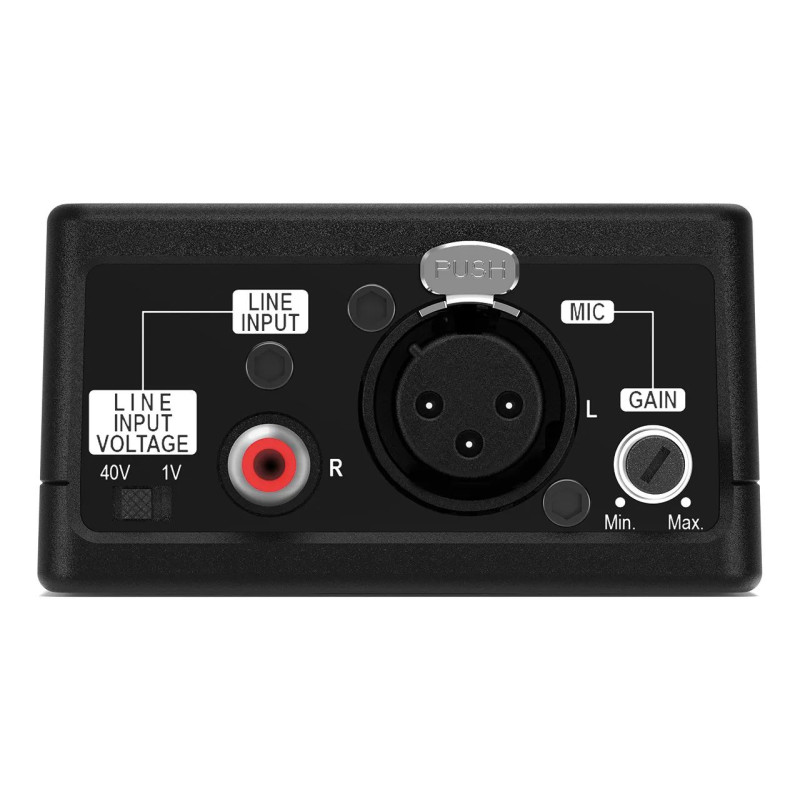

Inputs:

1 x Microphone input

1 x Line input



Microphone input specification



Frequency response:

12 Hz - 44 kHz (+/-1 dB)



Dynamic range:

95 dB (A-weighted)



Input sensitivity:

5 - 200 mV



Phantom power:

Yes (24 Volts)







Line input specification



Frequency response:

8 Hz - 44 kHz (+/-1 dB)



Dynamic range:

101 dB (A-weighted)



Input sensitivity:

max. 1 V / max. 40 V



Input impedance:

10 kOhms

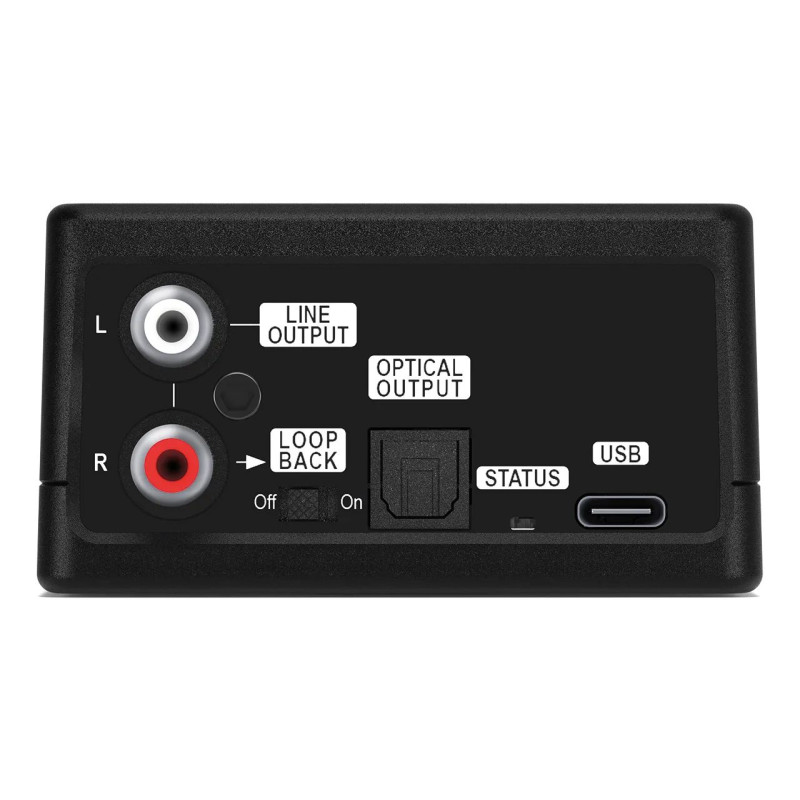

Outputs:

2 x Line output

1 x Optical output (SPDIF)





Line output specification





Frequency response:

7 Hz - 44 kHz (+/-1 dB)



Dynamic range:

100 dB (A-weighted)



Maximum output voltage:

900 mV (RMS)



Minimum load:

5 kOhms



Loopback function:

Yes





General specification





Audio sampling rate:

96 kHz / 32 Bit



USB power consumption:

max. 250 mA



Supported operating systems:

Windows, macOS, iOS and Android







Microphone





Transducer principle:

Condenser (back-electret)



Operating principle:

Pressure receiver



Frequency response:

20 – 20,000 Hz (50 – 16,000 Hz ± 1.5 dB), diffuse-field equalized



Polar pattern:

Omnidirectional



Sensitivity (0 dB = 1 V/Pa)

15 mV/Pa (= -36.5 dBV) ± 1 dB



Nominal impedance:

160 Ω



Nominal load impedance:

≥ 2.2 kΩ



Maximum SPL (Sound Pressure Level)

122 dBSPL at f = 1 kHz, k = 1%, RL = 2.2 kΩ



Signal-to-noise ratio (related to 1 Pa)

57 dB



A-weighted equivalent noise level:

Approx. 26 dB(A)



Power supply:

12 – 48 V phantom power



Current consumption:

Approx. 1.9 mA



Output:

Electronically balanced







Compatibility:

DSP PC-Tool 6

DSP PC-Tool 5

DSP PC-Tool 4







Scope of delivery:

1 x AMI (Audio Measurement Interface)

1 x Beyerdynamic MM1 Microphone

1 x Microphone holder for tripod

1 x RCA-to-Highlevel adaptor

1 x 16 GB USB 3.0 flash drive with DSP tuning tracks

1 x 3.0 m / 9.85’ USB-C to USB-C cable with USB-A adaptor

1 x 3.5 m / 11.50’ optical toslink cable

1 x 3.5 m / 11.50’ mono RCA cable

1 x 2.0 m / 6.56’ XLR microphone cable
