HELIX AMPLIFY 206 DSP

Technical data

Power RMS ≤ 1% THD+N @ 14.4 V

- @ 4 Ohms 6 x 100 Watts

- @ 2 Ohms 6 x 190 Watts

- @ 1 Ohm -

- bridged @ 4 Ohms 3 x 380 Watts

- bridged @ 2 Ohms -

Max. output power per channel* Up to 240 Watts RMS @ 2 Ohms

Up to 480 Watts RMS @ 4 Ohms bridged

Amplifier technology Class D

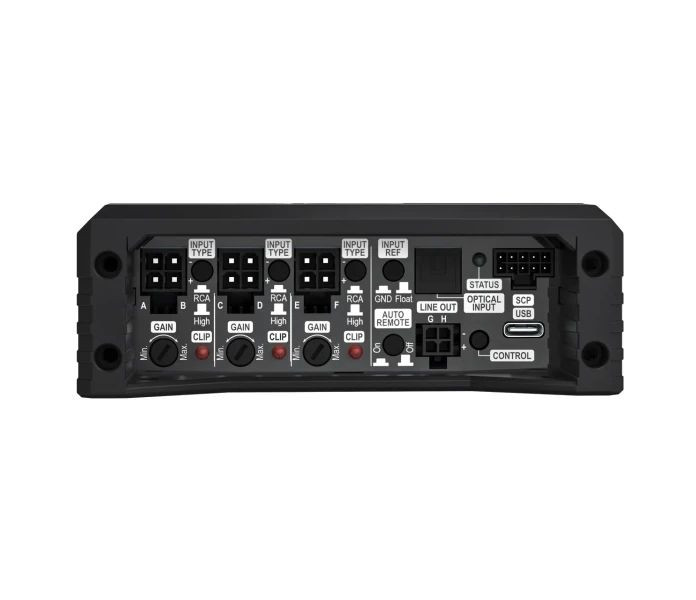

Inputs 6 x RCA / Cinch

or

6 x Highlevel speaker input

1 x Optical SPDIF (12 - 96 kHz)

2 x Remote In

Input sensitivity RCA / Cinch:1 - 8 Volts

Highlevel: 2 - 16 Volts

Input impedance RCA / Cinch 4,8 kOhms

Highlevel 9 - 33 Ohms or 20 kOhms with ADEP.3

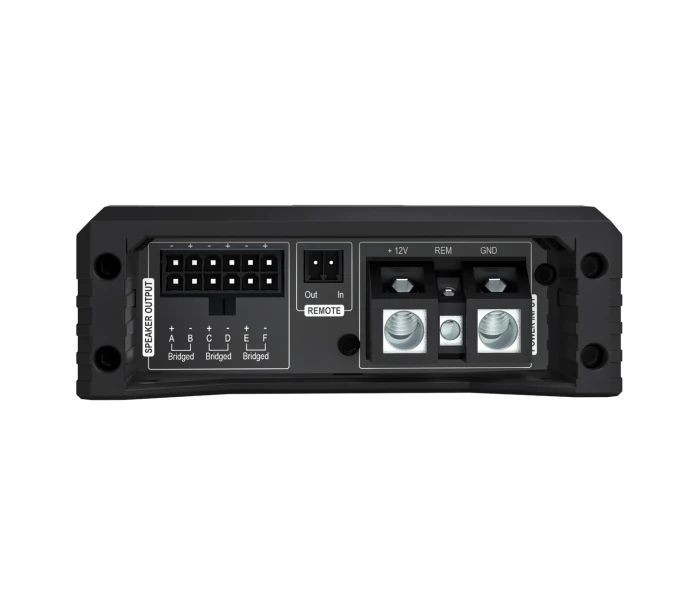

Outputs 6 x Speaker output

2 x RCA / Cinch

1 x Remote Out

Output voltage RCA / Cinch 8 Volts

Frequency response 20 Hz - 22,000 Hz

DSP resolution 64 Bit

DSP power 1 x 295 MHz (1.2 billion MAC operations/second)

Sampling rate 48 kHz

DSP type 1 x Audio signal processor

Signal converters A/D: BurrBrown 24 Bit

D/A: AKM 24 Bit

Signal-to-noise ratio (A-weighted) Analog input: 99 dB @ full power

Digital input: 102 dB @ full power

Distortion (THD @ 1 kHz, 1 W into 4 Ohms) 0.005 %

Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms) 0.02 %

Distortion (THD @ 100 Hz, 1 W into 4 Ohms) -

Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms) -

Damping factor 70

Operating voltage 10.5 - 16 Volts (max. 5 sec. down to 6 Volts)

Power rating DC 12 V ⎓ 93 A max.

Idle current 1,100 mA

Max. remote output current 500 mA

Operating temperature range -40 °C to +70 °C

Fuse 3 x 25 A LP-Mini-fuse (APS)

Additional features ADEP.3 circuit, Smart Control Port, Auto Remote switch, 32 Bit CoProcessor

Dimensions (H x W x D) 40 x 263 x 114 mm / 1.58 x 10.35 x 4.49”

* One channel driven (≤ 10 % THD+N @ 14.4 V)



Scope of delivery

1 x Amplifier HELIX AMPLIFY 206 DSP

2 x Allen key

1 x Mounting material

5 x Connection cable

1 x USB cable

3 x Fuse

1 x Instruction manual
