HELIX AMPLIFY 206 DIRECT

Technical data

Power RMS ≤ 1% THD+N @ 14.4 V

- @ 4 Ohms 6 x 100 Watts

- @ 2 Ohms 6 x 190 Watts

- @ 1 Ohm -

- bridged @ 4 Ohms 3 x 380 Watts

- bridged @ 2 Ohms -

Max. output power per channel* Up to 240 Watts RMS @ 2 Ohms

Up to 480 Watts RMS @ 4 Ohms bridged

Amplifier technology Class D

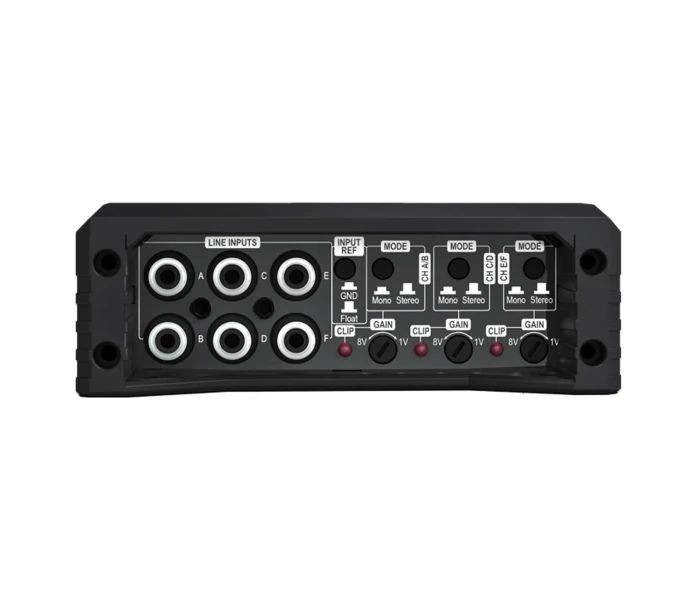

Inputs 6 x RCA / Cinch

1 x Remote In

Input sensitivity 1 - 8 Volts

Input impedance 6 kOhms

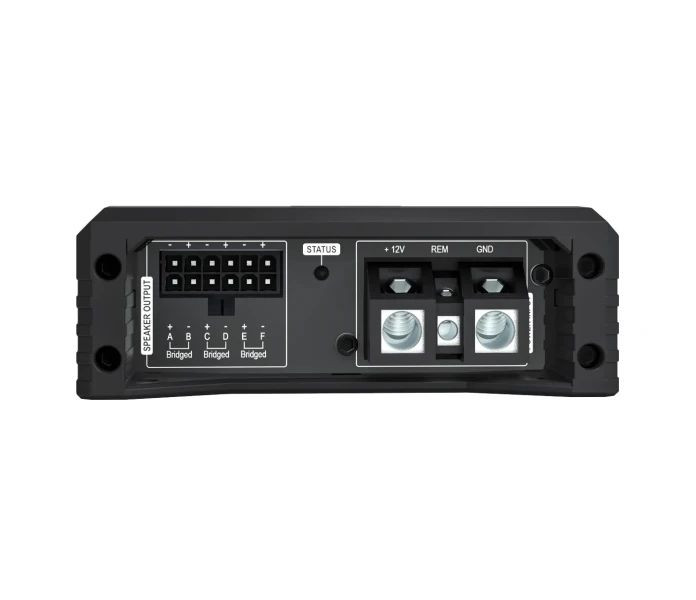

Outputs 6 x Speaker output

Output voltage RCA / Cinch -

Signal converter for digital input -

Frequency response 10 Hz - 22,000 Hz

Bass boost -

Highpass -

Lowpass -

Bandpass -

Subsonic -

Phase -

Slope high- / lowpass -

Slope subsonic -

Slope subsonic / lowpass -

Signal-to-noise ratio (A-weighted) 103 dB @ full power

Distortion (THD @ 1 kHz, 1 W into 4 Ohms) 0.003%

Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms) 0.015 %

Distortion (THD @ 100 Hz, 1 W into 4 Ohms) -

Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms) -

Damping factor 70

Operating voltage 10.5 - 16 Volts (max. 5 sec. down to 6 Volts)

Idle current 1,100 mA

Fuse 3 x 25 A LP-Mini-fuse (APS)

Power rating DC 12 V ⎓ 93 A max.

Operating temperature range -40 °C to +70 °C

Additional features Start-Stop capability, Clipping LED, DirectDSP inputs

Dimensions (H x W x D) 40 x 263 x 114 mm /

1.58 x 10.35 x 4.49”

* One channel driven (≤ 10 % THD+N @ 14.4 V)



Scope of delivery

1 x Amplifier HELIX AMPLIFY 206 DIRECT

2 x Allen key

1 x Mounting material

1 x Connection cable

3 x Fuse

1 x Instruction manual
