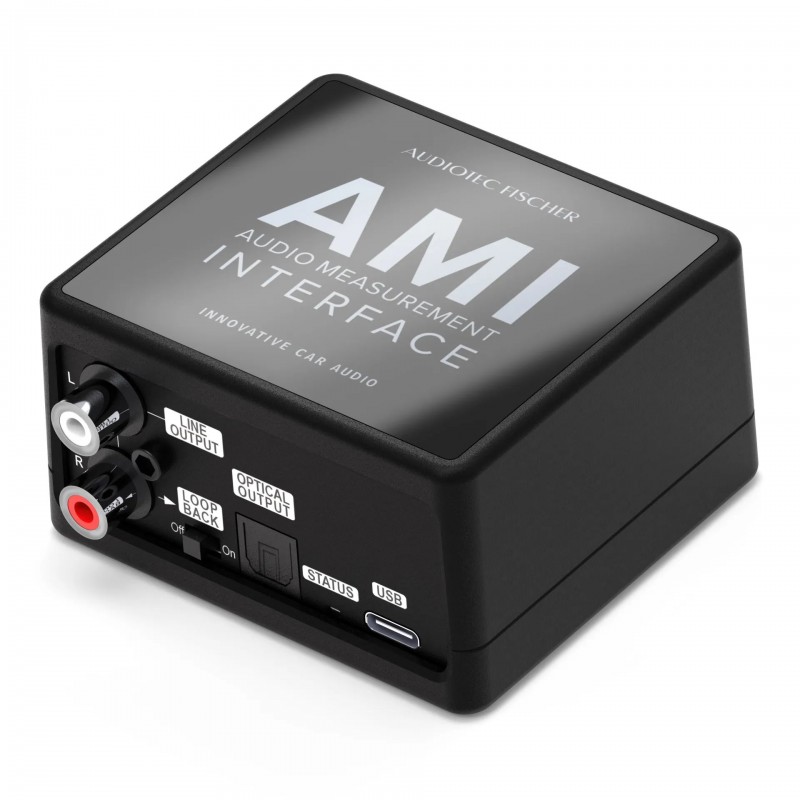

Audiotec Fischer AMI

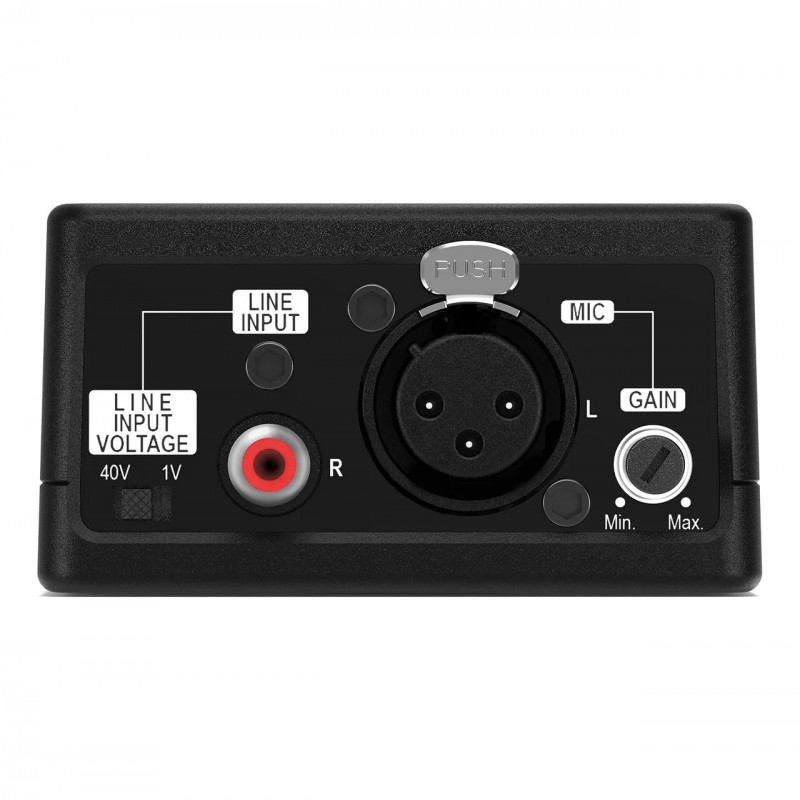

Inputs:1 x Microphone input

1 x Line input



Microphone input specification



Frequency response:

12 Hz - 44 kHz (+/-1 dB)



Dynamic range:

95 dB (A-weighted)



Input sensitivity:

5 - 200 mV



Phantom power:

Yes (24 Volts)





Line input specification





Frequency response:

8 Hz - 44 kHz (+/-1 dB)



Dynamic range:

101 dB (A-weighted)



Input sensitivity:

max. 1 V / max. 40 V



Input impedance:

10 kOhms

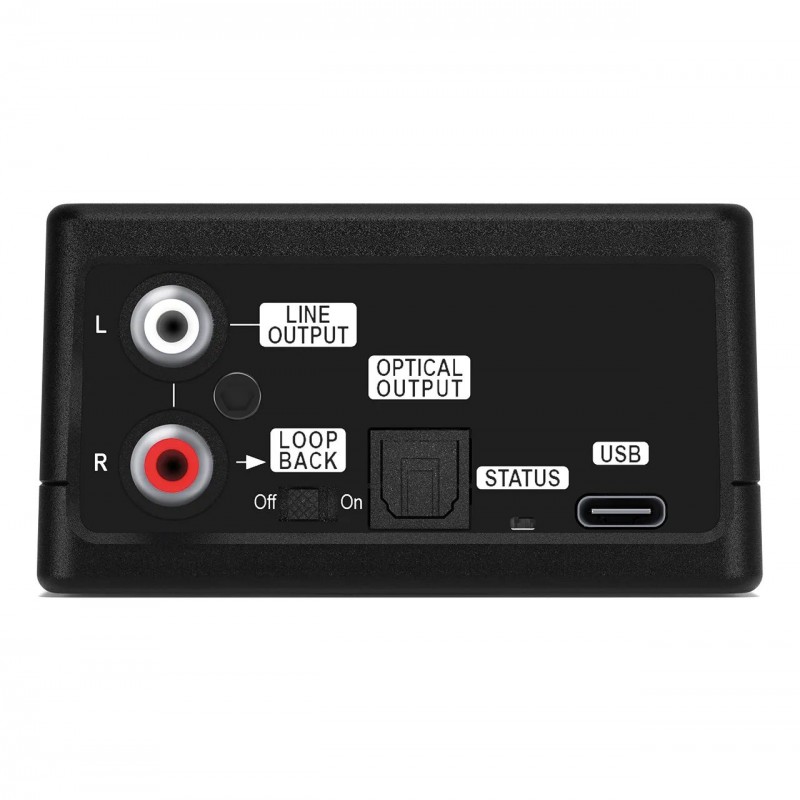

Outputs:

2 x Line output

1 x Optical output (SPDIF)





Line output specification





Frequency response:

7 Hz - 44 kHz (+/-1 dB)



Dynamic range:

100 dB (A-weighted)



Maximum output voltage:

900 mV (RMS)



Minimum load:

5 kOhms



Loopback function:

Yes





General specification





Audio sampling rate:

96 kHz / 32 Bit



USB power consumption:

max. 250 mA



Supported operating systems:

Windows, macOS, iOS and Android





Compatibility

DSP PC-Tool 6

DSP PC-Tool 5

DSP PC-Tool 4





Scope of delivery

1 x AMI (Audio Measurement Interface)

1 x 3.0 m / 9.85’ USB-C to USB-C cable with USB-A adaptor

1 x RCA-to-Highlevel adaptor

1 x 16 GB USB 3.0 flash drive with DSP tuning tracks
