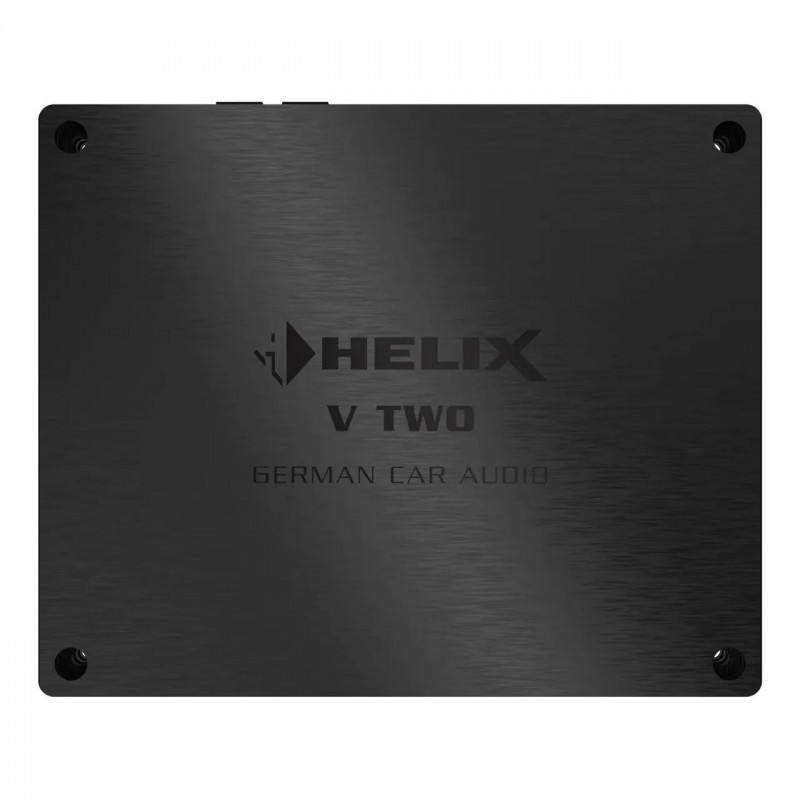

HELIX NEXT V TWO

Power RMS ≤ 1% THD+N

- @ 4 Ohms 2 x 200 Watts

- @ 2 Ohms 2 x 400 Watts

- @ 1 Ohm -

- bridged @ 4 Ohms 1 x 800 Watts

- bridged @ 2 Ohms -

Max. output power per channel* Up to 500 Watts RMS @ 2 Ohms

Up to 1000 Watts RMS @4 Ohms bridged

Amplifier technology Class D

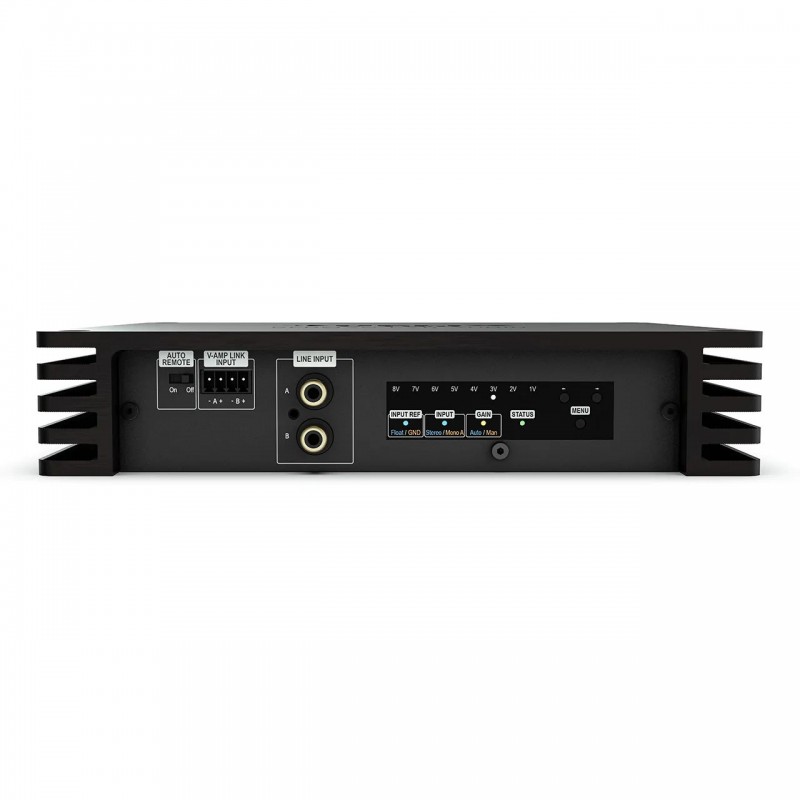

Inputs 2 x RCA / Cinch

2 x V-AMP Link

1 x Remote In

Input sensitivity RCA / Cinch: 0.5 - 8 Volts

V-AMP Link: 1.5 - 21 Volts

Input impedance RCA / Cinch: 3 kOhms

V-AMP Link: 13 Ohms

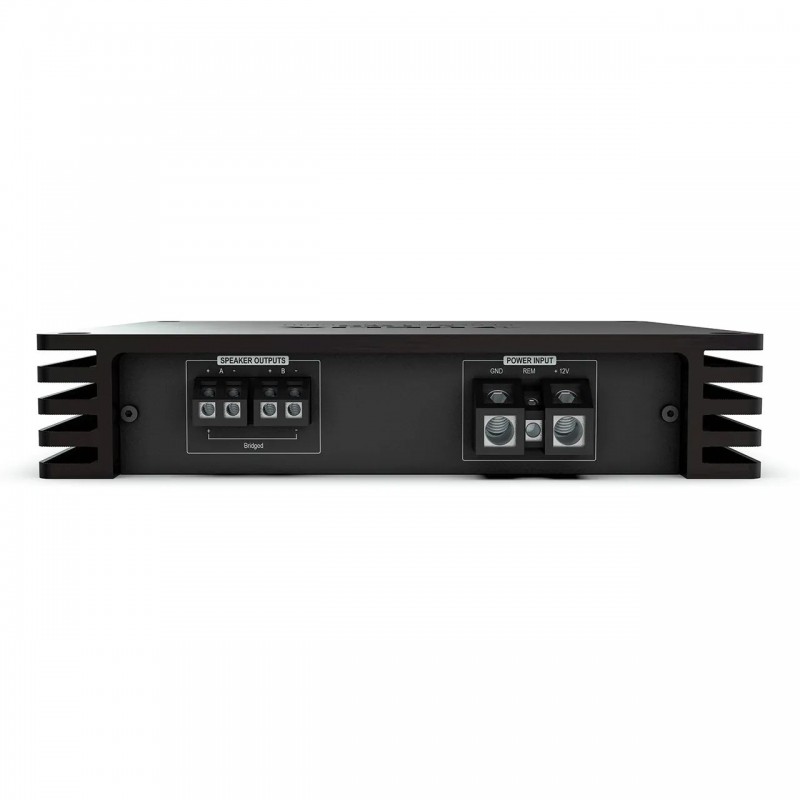

Outputs 2 x Speaker output

Output voltage RCA / Cinch -

Signal converter for digital input -

Frequency response 10 Hz - 22,000 Hz

Bass boost -

Highpass -

Lowpass -

Bandpass -

Subsonic -

Phase -

Slope high- / lowpass -

Slope subsonic -

Slope subsonic / lowpass -

Signal-to-noise ratio (A-weighted) 109 dB

Distortion (THD @ 1 kHz, 1 W into 4 Ohms) 0.003%

Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms) 0.004 %

Distortion (THD @ 100 Hz, 1 W into 4 Ohms) -

Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms) -

Damping factor 350

Operating voltage 10.5 - 18 Volts (max. 5 sec. down to 6 Volts)

Idle current 1,400 mA

Fuse 3 x 30 A LP-Mini-fuse (APS)

Power rating DC 12 V ⎓ 86 A max.

Operating temperature range -40 °C to +70 °C

Additional features Auto-Gain-Ranging, Mono / Stereo Mode, Start-Stop capability, V-AMP Link, regulated power supply

Dimensions (H x W x D) 44 x 220 x 180 mm /

1.73 x 8.66 x 7.09”

* In typical applications as subwoofer amplifier







Scope of delivery

1 x Amplifier HELIX NEXT V TWO

2 x Allen key

3 x Fuse

1 x Mounting material

1 x Instruction manual
