Stūres vadības adapters Citroen/Fiat/Peugeot/Toyota vehicles Quadlock PDC

Citroën

Citroën Berlingo (7) 06/2008 - 03/2012

Citroën Berlingo (7) 04/2012 - 05/2015

Citroën Berlingo (7) 06/2015 - 06/2018

Citroën C2 (J) 12/2004 - 12/2009

Citroën C3 (F) 10/2005 - 01/2010

Citroen C3 (S) 01/2010 - 03/2013

Citroen C3 (S) 04/2013 - 01/2017

Citroën C4 (L) 11/2004 - 08/2010

Citroën C5 (D) 10/2004 - 04/2008

Citroën C8 (E) 01/2008 - 07/2012

Citroën C8 (E) 07/2012 - 06/2014

Citroën DS3 (S) 03/2010 - 07/2014

Citroen Jumpy (V) 02/2007 - 05/2016

Citroen Jumpy (V) 09/2016 - 01/2024*

Citroen Nemo (A) 08/2008 - 12/2015

Citroen Spacetourer (V) 03/2016 - 03/2024*

Citroen Xsara Picasso (C) 03/2004 - 02/2010



Fiat

Fiat Scudo (ZAF 270) 02/2007 - 07/2016



Opel

Opel Vivaro C (V) 09/2019 - 01/2024*

Opel Zafira Life V (V) 02/2019 - 01/2024*



Peugeot

Peugeot 207 (WC) 06/2006 - 06/2009

Peugeot 207 (W) 06/2009 - 07/2015

Peugeot 208 (C) 04/2012 - 04/2015

Peugeot 307 (3/3 Break/3 SW/3 CC) 06/2005 - 03/2009

Peugeot 308 (4/4 GTI/4 SW/4 CC) 09/2007 - 07/2015

Peugeot 407 (6/6 SW/6 Coupé) 05/2004 - 07/2008

Peugeot 407 (6/6 SW/6 Coupé) 02/2006 - 03/2011

Peugeot 607 (9) 10/2004 - 04/2009

Peugeot 807 (E) 07/2002 - 02/2008

Peugeot 807 (E) 02/2008 - 06/2014

Peugeot 3008 (OU) 06/2009 - 10/2013

Peugeot 5008 (O) 10/2009 - 10/2013

Peugeot Bipper (A) 12/2007 - 12/2015

Peugeot Expert (X) 02/2007 - 08/2016

Peugeot Expert (X) 03/2016 - 2024

Peugeot Partner (7) 05/2008 - 03/2012

Peugeot RCZ (4J) 04/2010 - 09/2015

Peugeot Traveller 03/2016 -2024*



Toyota

Toyota Proace 03/2013 - 08/2016

Toyota Proace (V) 03/2016 - 04/2024*

Toyota Proace Verso (V) 03/2016 - 04/2024*

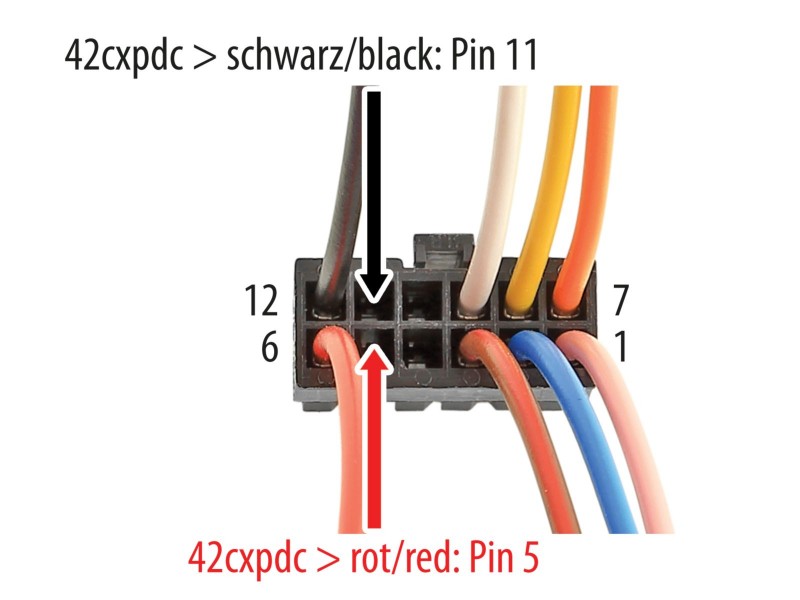

Following signals are provided:



Reimported vehicles or vehicles with different software may be incompatible in functions.



pink: +12V ignition clamp 15 1,5A max.

orange: +12V illumination clamp 58 0,1A max.

white: +12V reverse gear signal 1,5A max.

yellow/green yellow/red: speed pulse signal



SWC



vehicle settings supported



*vehicles with PDC and Clarion MQ-RD6 OEM HU monochrome display and central rotary knob

*vehicle settings not supported
