HELIX NEXT V EIGHT DSP ULTIMATE

Technical data

Power RMS ≤ 1% THD+N

- @ 4 Ohms Channel 1 - 8: 8 x 110 Watts

- @ 2 Ohms Channel 5 - 8: 4 x 220 Watts

- @ 1 Ohm -

- bridged @ 4 Ohms -

- bridged @ 2 Ohms -

Max. output power per channel* Channel 1 - 8: up to 140 Watts RMS @ 4 Ohms

Channel 5 - 8: up to 270 Watts RMS @ 2 Ohms

Amplifier technology Class HD

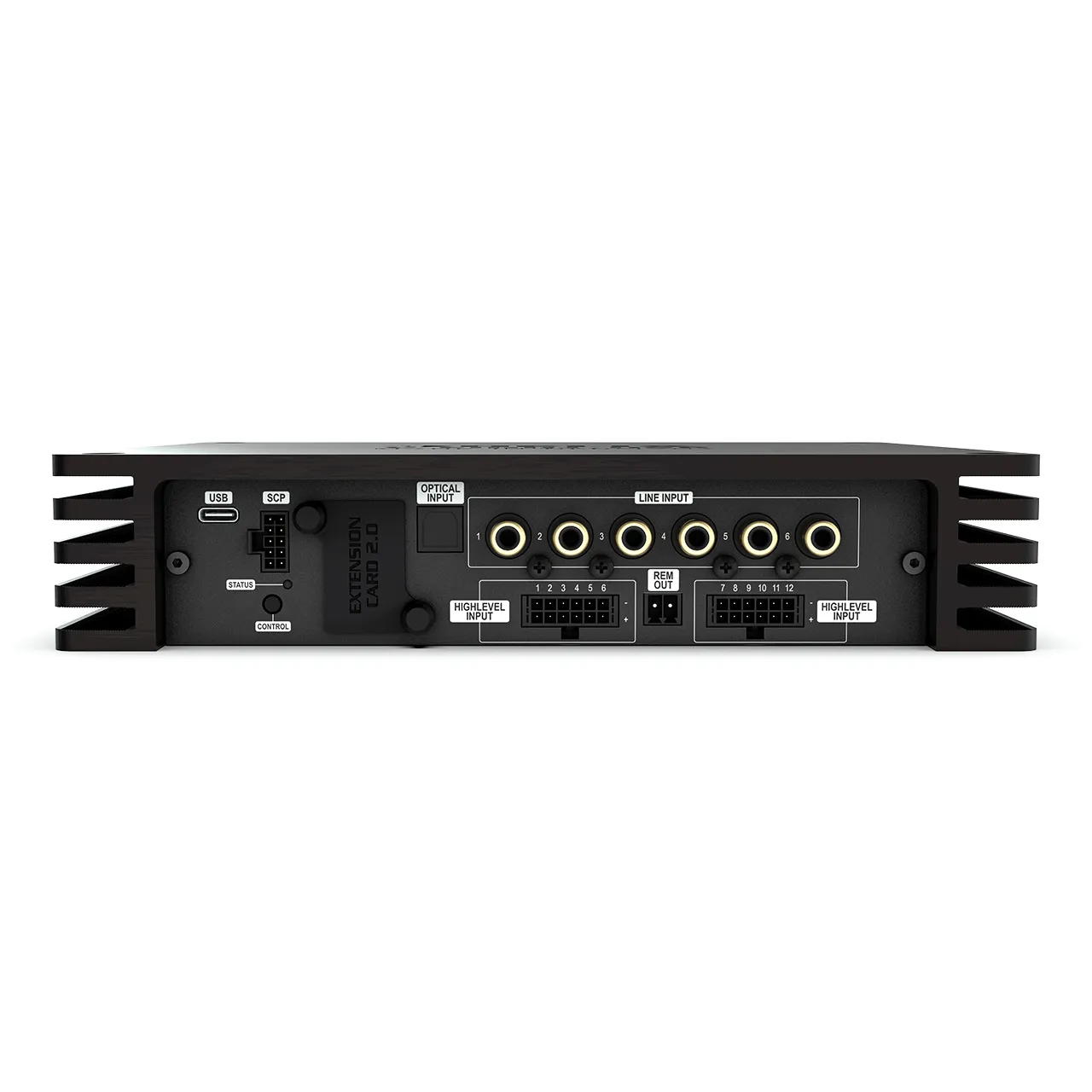

Inputs 6 x RCA / Cinch

12 x Highlevel speaker input

1 x Optical SPDIF (12 - 96 kHz)

1 x Remote In

1 x USB Audio

Input sensitivity RCA / Cinch: 1 - 8 Volts

Highlevel: 4 - 32 Volts

Input impedance RCA / Cinch: 25 kOhms

Highlevel: 9 - 33 Ohms with ADEP.3

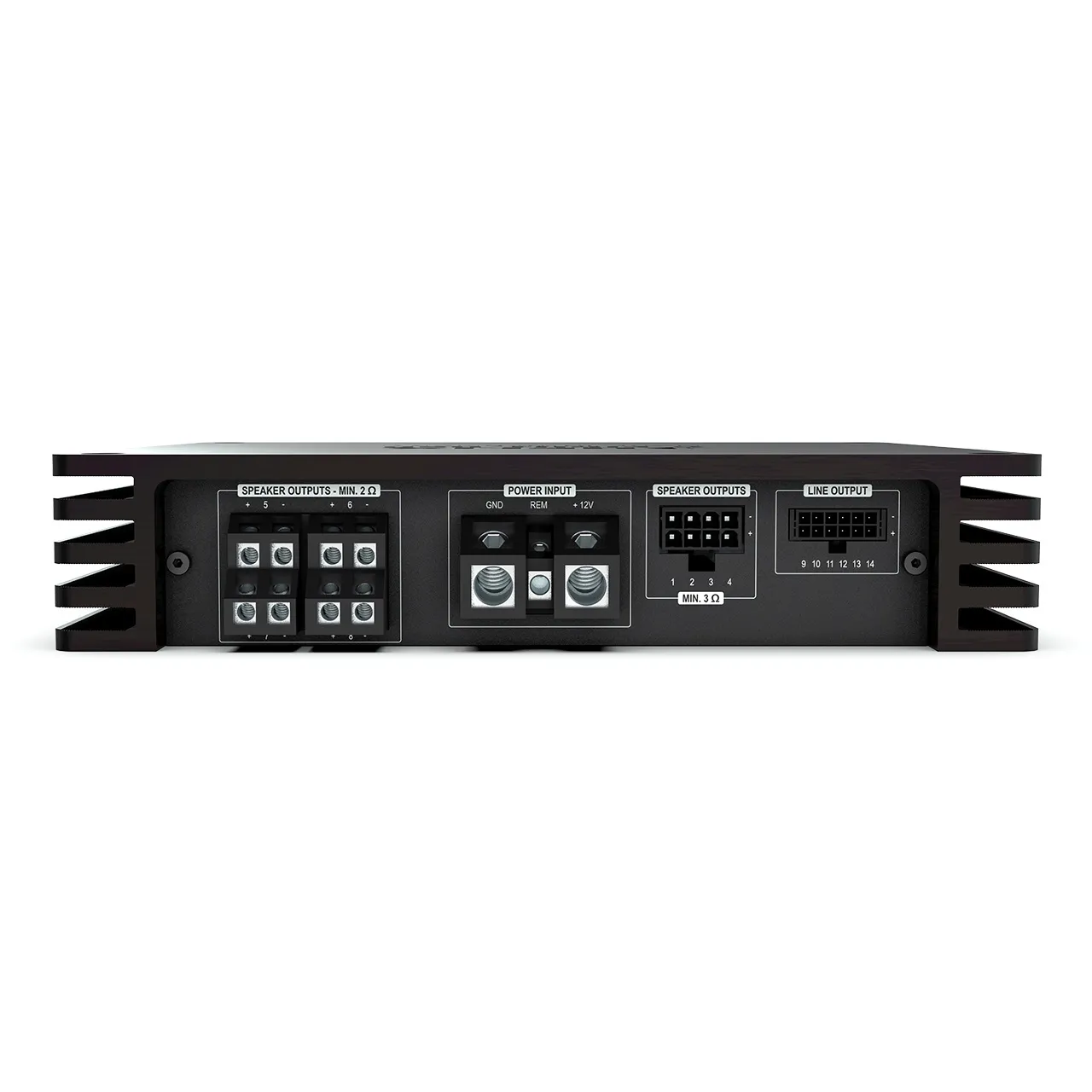

Outputs 8 x Speaker output

6 x RCA / Cinch

2 x Remote Out

Output voltage RCA / Cinch 3 Volts

Frequency response 15 Hz - 22,000 Hz

DSP resolution 64 Bit

DSP power 295 MHz (1.2 billion MAC operations/second)

Sampling rate 48 kHz

DSP type Audio signal processor

Signal converters A/D: BurrBrown 24 Bit

D/A: BurrBrown 24 Bit

Signal-to-noise ratio (A-weighted) Digital input: 107 dB

Analog input: 102 dB

Distortion (THD @ 1 kHz, 1 W into 4 Ohms) 0.007 %

Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms) 0.009 %

Damping factor 100

Operating voltage 10.5 - 18 Volts (max. 5 sec.down to 6 Volts)

Power rating DC 12 V ⎓ 110 A max.

Idle current 750mA

Max. remote output current 500 mA

Operating temperature range -40 °C to +70 °C

Fuse 2 x 40 A LP-Mini-fuse (APS)

Additional features 32 Bit CoProcessor, Extension Card 2.0 slot, ADEP.3 circuit, Auto Remote switch, Smart Control Port, USB-C, USB PerfectStream

Dimensions (H x W x D) 44 x 220 x 180 mm /

1.73 x 8.66 x 7.09”



Scope of delivery

1 x Amplifier HELIX NEXT V EIGHT DSP ULTIMATE

1 x USB-C cable with USB-A adaptor

2 x Allen key

4 x Connection cable

1 x Mounting material

1 x Instruction manual
