HELIX IK E10.1-DVC2 MK2

Technical data

IK E10.1-DVC2 MK2 – 2 x 2 Ohms

Power handling RMS P 300 Watts

Recommended amplifier power RMS 150 - 300 Watts

Impedance z 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω

Max. linear excursion Xlin +/- 8 mm

Max. mechanical excursion Xmax +/- 18.5 mm

Port tuning frequency Fb 43 Hz

Sensitivity

SPL

91 dB @ 2.83V / 1m

88 dB @ 1W / 1m



Dimensions (H x W x D)

1187 x 471 x 375 mm

7.4 x 18.5 x 14.8″



Integrated subwoofer chassis HELIX IK W10-DVC2

Recommended DSP settings ″Self-define″ highpass 37 Hz / Q = 1.5

EQ filter: 115 Hz / Q = 0.7 / -2 dB



Compatibility

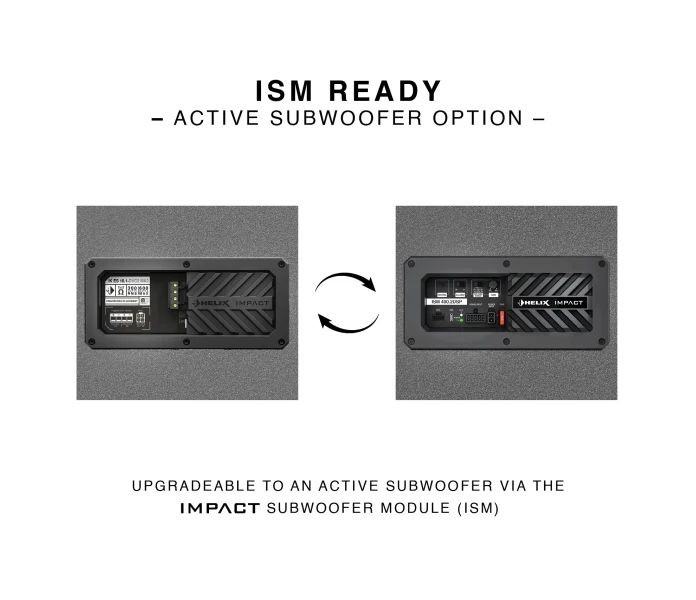

IMPACT Subwoofer Module:

HELIX IMPACT ISM 400.2DSP



Scope of delivery

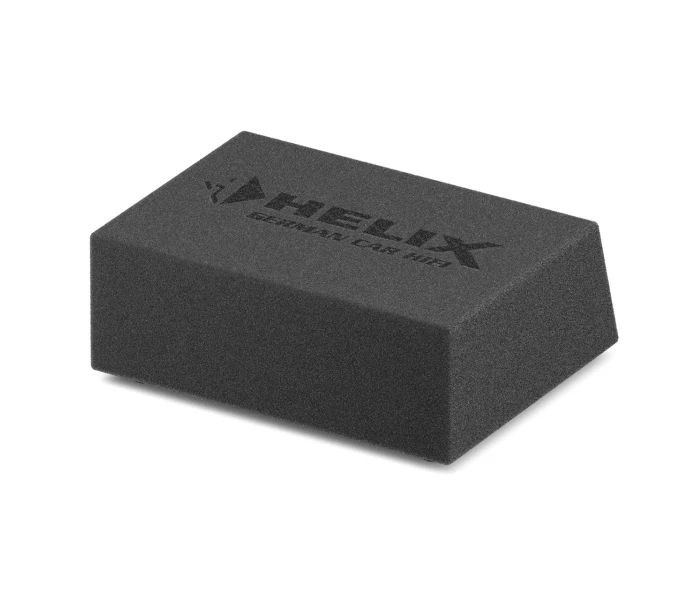

1 x Downfire enclosure subwoofer IK E10.1-DVC2 MK2

1 x Data sheet
