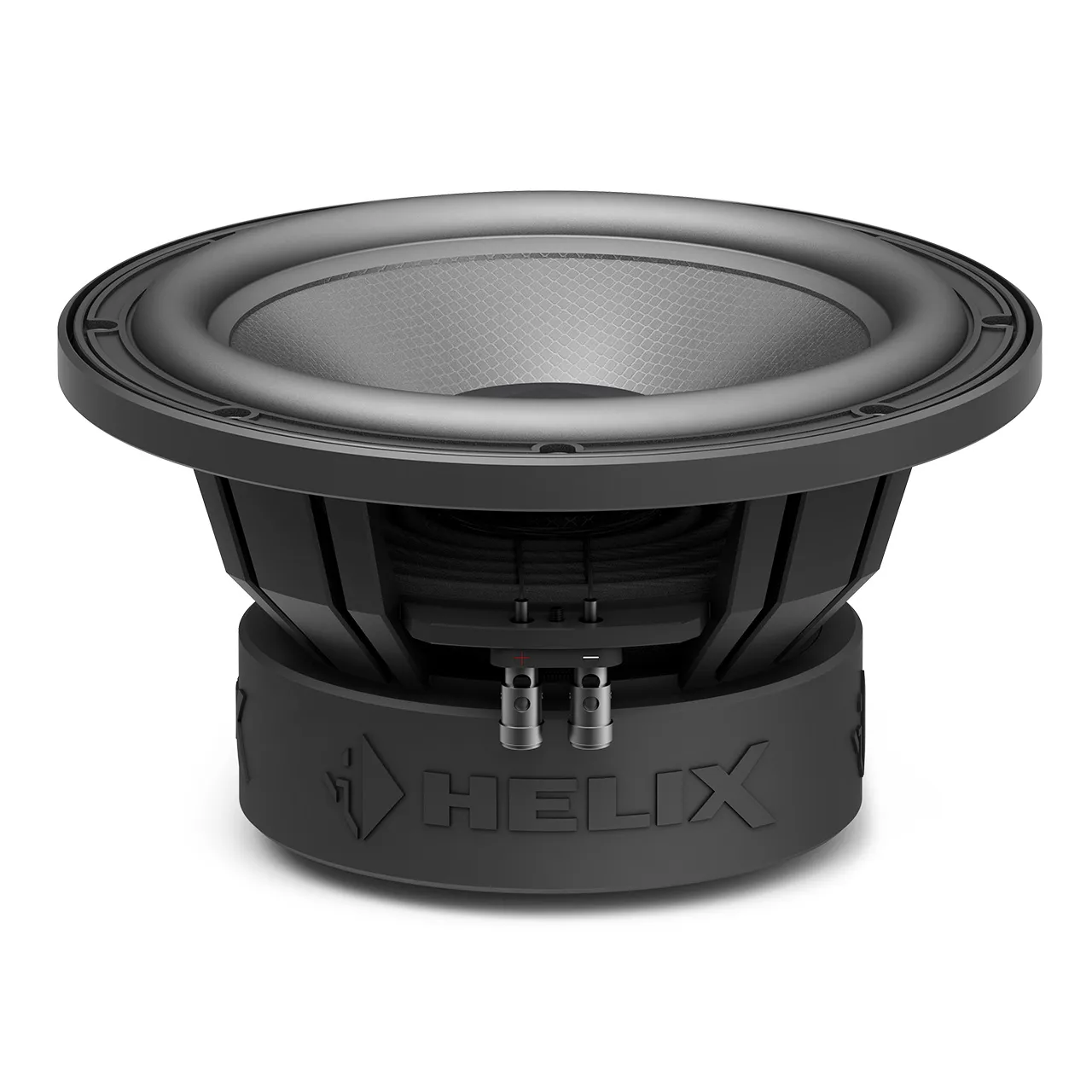

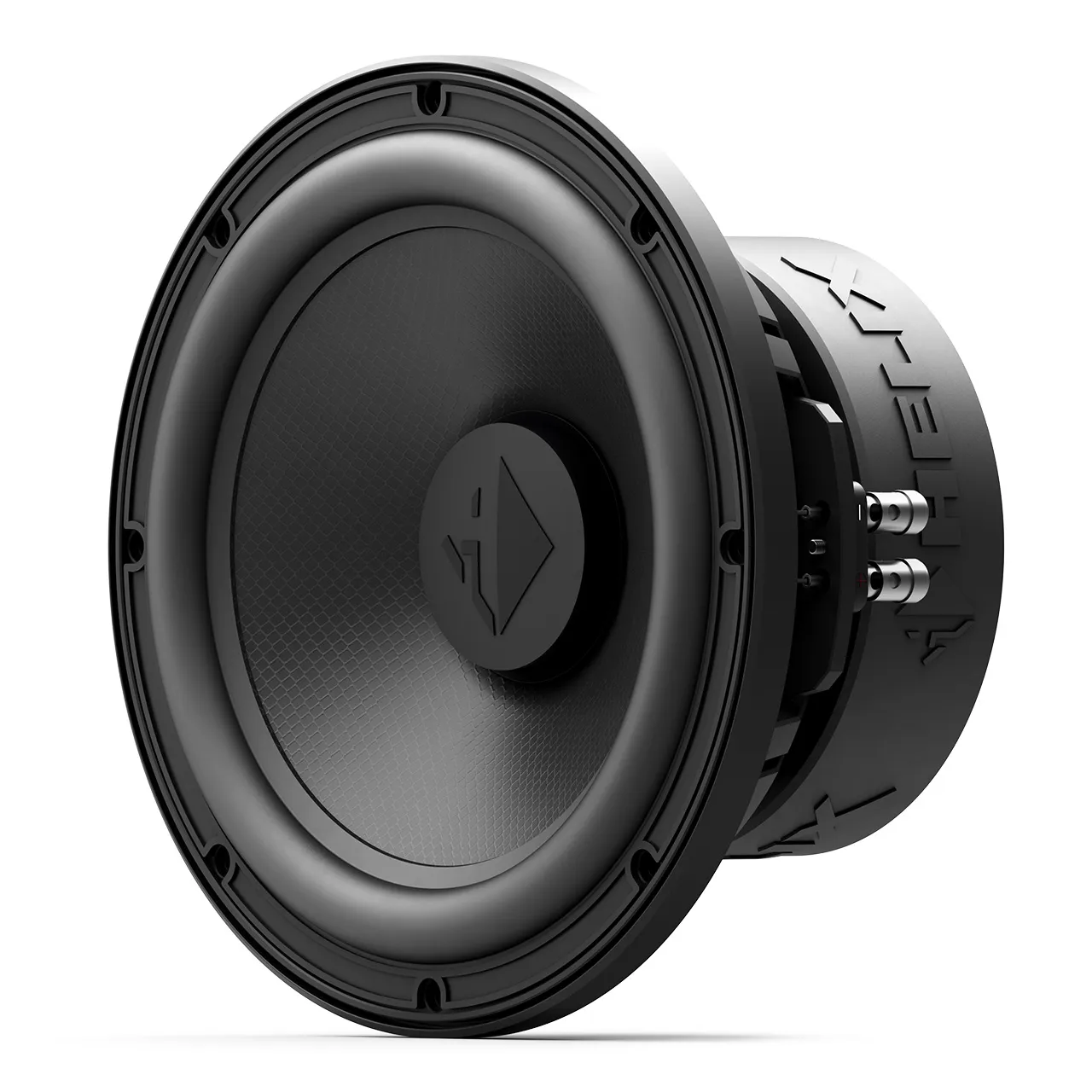

HELIX IQ W10-DVC2

Technical data

– +1 TM +2 TM +3 TM

Power handling RMS / max. P 750 / 1,500 Watts

Recommended amplifier power RMS from 300 Watts

Impedance Z 2 x 2 Ω

DC resistance Re 2 x 1.9 Ω

Resonance frequency Fs 38 Hz 34 Hz 30 Hz 28 Hz

Mechanical Q factor Qms 6.0

Electrical Q factor Qes 0.46 0.52 0.61 0.70

Total Q factor Qts 0.43 0.48 0.55 0.63

Compliance Cms 115 μm/N

Equivalent air volume Vas 21 L

Force factor B*I 17.8 Tm

Sensitivity SPL 89 dB @ 2.83V / 1m

86 dB @ 1W / 1m

Cone area Sd 363 cm²

Moving mass Mms 158 g 211 g 264 g 317 g

Cone material Fiberglass-Mylar honeycomb cone

Mechanical resistance Rms 6.2 kg/s

Voice coil diameter ø 63 mm

Voice coil winding height 32 mm

Max. linear excursion Xmax +/- 12 mm

Outer diameter ø 275 mm / 10.83″

Installation diameter ø 234.6 mm / 9.24″

Installation depth 134.5 mm / 5.30″



Sealed box

Minimum: Net volume 13L



Bassreflex-box

Minimum: Net volume 27L





TM = Tuning Mass

Scope of delivery

1 x Subwoofer IQ W10-DVC2

1 x Installation gasket

2 x Mounting material

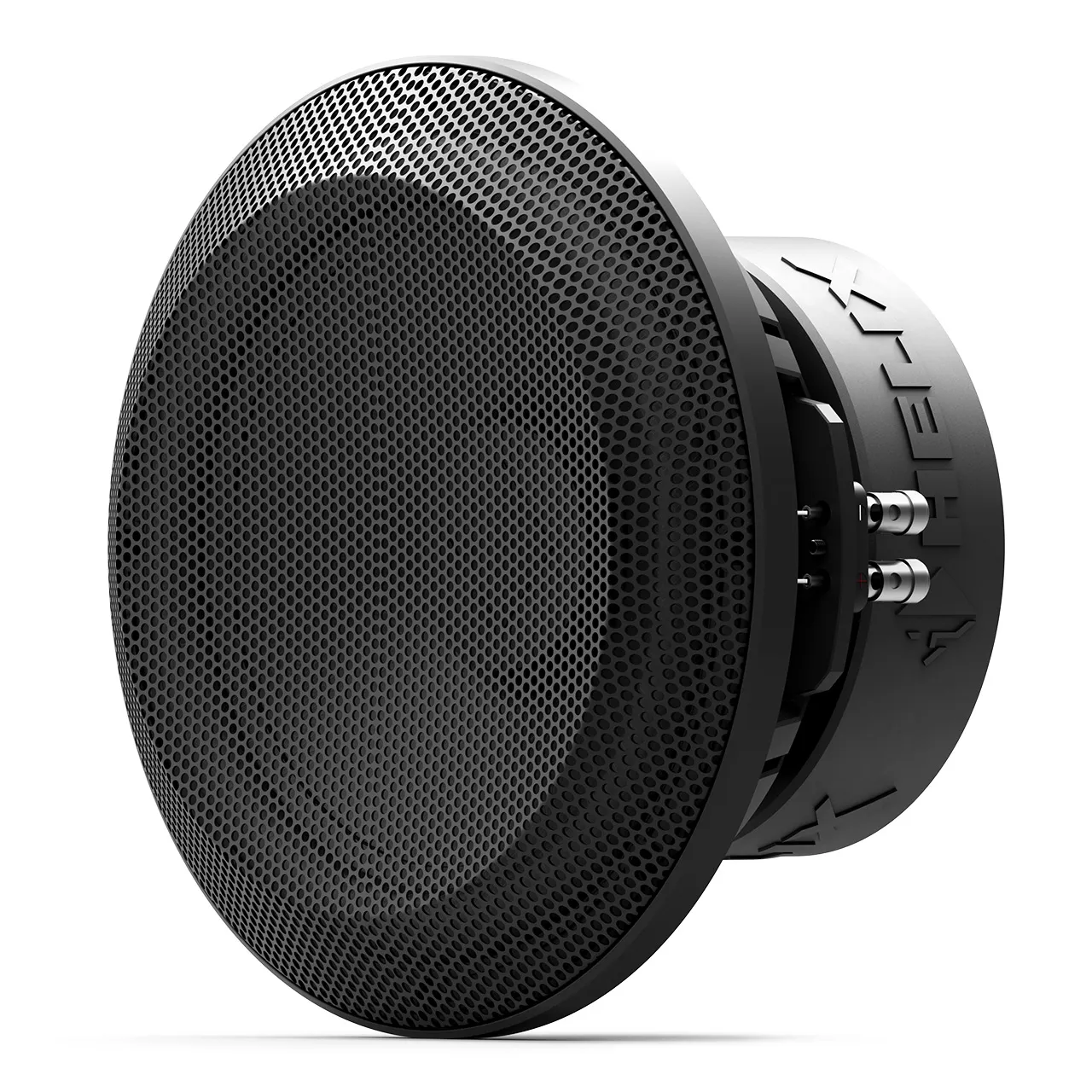

1 x Grille

2 x Grille removal tool

3 x Tuning mass (TM)

1 x Data sheet
