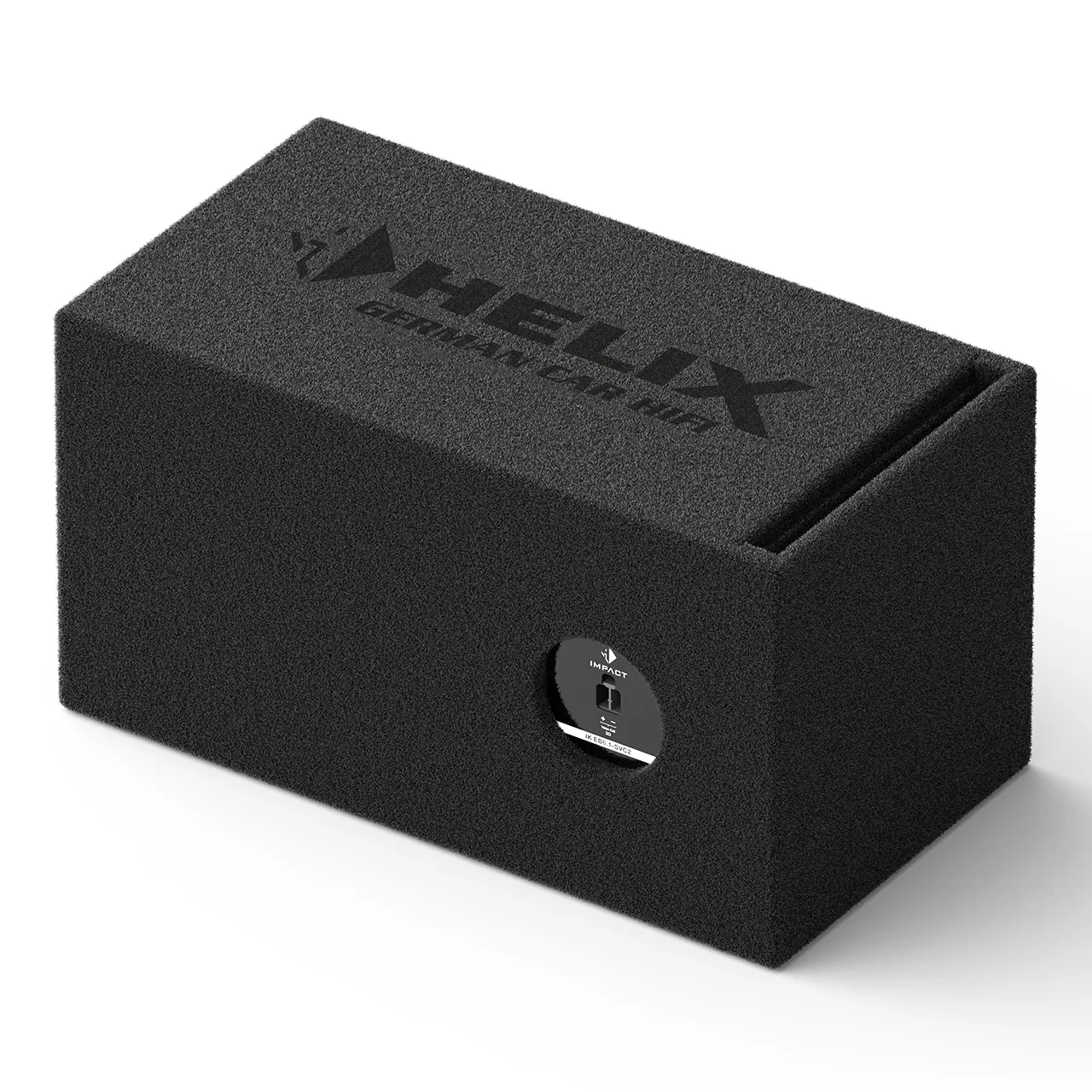

HELIX IK EB6.1-SVC2

Power handling RMS P 150 Watts

Recommended amplifier power RMS 75 - 150 Watts

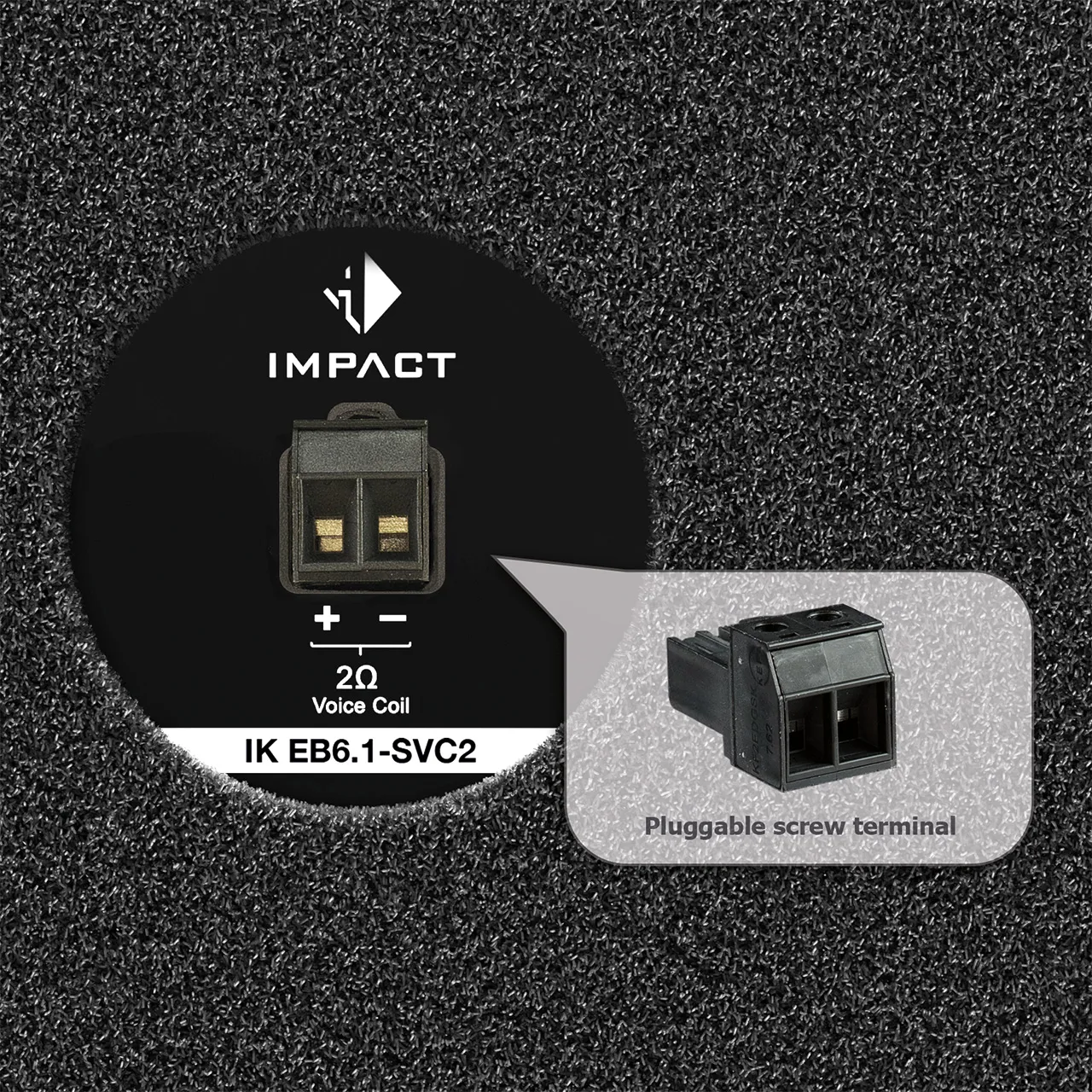

Impedance z 1 x 2 Ω

Max. linear excursion Xmax +/- 6.0 mm

Port tuning frequency Fb 48 Hz

Sensitivity SPL 92 dB @ 2.83V / 1m

86 dB @ 1W / 1m

Dimensions (H x W x D) 175 x 175 x 340 mm /

6.9 x 6.9 x 13.4“

Integrated subwoofer chassis HELIX IK W6-SVC2

Recommended DSP settings ″Self-define″ highpass 40 Hz / Q = 1.0

EQ filter: 55 Hz / Q = 2.0 / -2 dB
