AI-SONIC S2-A150.2

RMS POWER (2ohm) 12v 1%THD 2x225W

RMS POWER (4ohm) 12v 1%THD 2 x 150W

BRIDGED POWER(4ohm) 12v 1%THD 1 x450W

T.H.D 0,02% 4ohm, 0.04 % 2ohm

BANDWIDTH: 10Hz-40KHz

S/N RATIO (A-WEIGHTED): 105dB

CHANNEL SEPARATION: 45dB

INPUT SENSITIVITY :0.5-6V

LOW PASS x1: 50Hz- 500Hz x10: 500Hz-5KHz

HIGH PASS x1: 12Hz-250Hz x2Q: 250Hz-5KHz

BAND PASS(FRONT ): 12Hz- 5KHz

CROSSOVER SLOPE: 12dB/oct

BASS BOOST: 0/6dB(@45Hz)

POWER FUSE: 2 x 30A

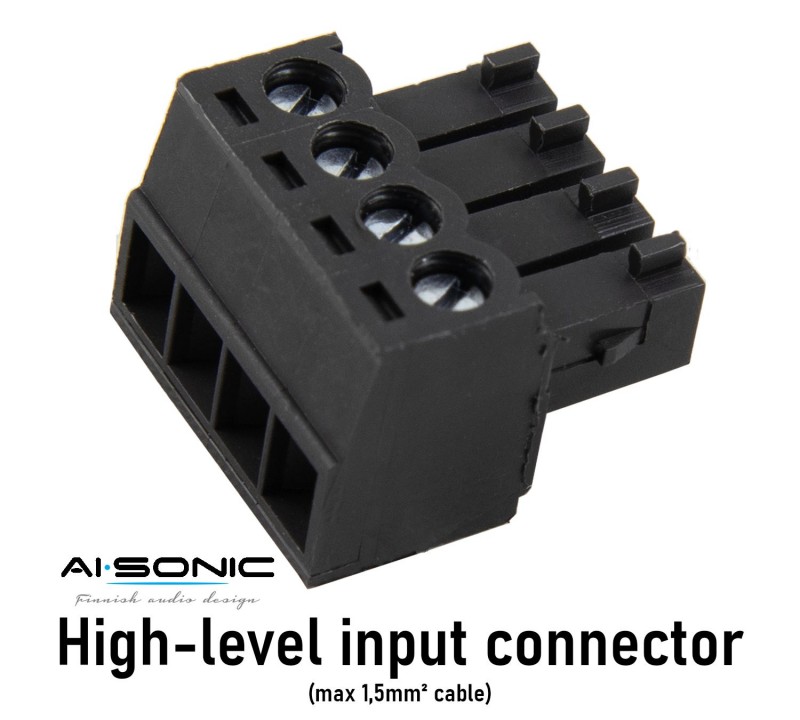

HIGH-LEVEL VOLTAGE: 0.75-9V



Cable fitting size:

+12V = 20mm2

GND = 20mm2

REM = 6mm2

SPEAKER = 6mm2



Current Draw (Max): 52A



DIMENSIONS W: 183mm / (7.2 IN)

H: 60mm / (2.4 IN)

L: 374mm / ( 14.7IN).
