HELIX IK ER8.2-DVC2

Power handling RMS P 600 Watts

Recommended amplifier power RMS 150 - 600 Watts

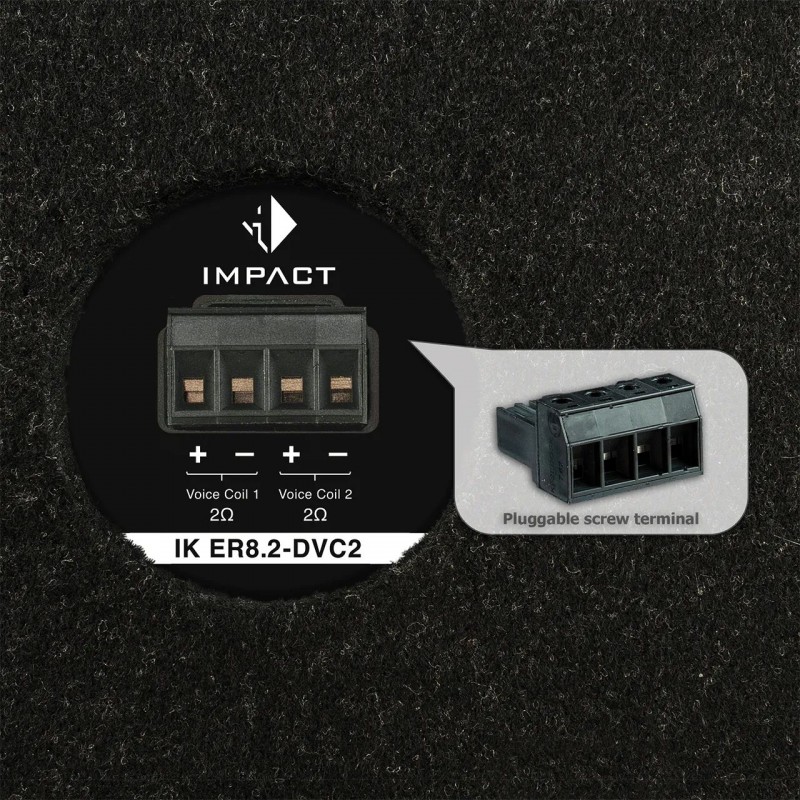

Impedance z 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω

Max. linear excursion Xmax +/- 8.0 mm

Port tuning frequency Fb 41 Hz

Sensitivity

SPL

92 dB @ 2.83V / 1m

89 dB @ 1W / 1m



Dimensions (D x H) 580 x 160 mm /

22.8 x 6.3”

Integrated subwoofer chassis HELIX IK W8-SVC2

Recommended DSP settings ″Self-define″ highpass 35 Hz / Q = 1.0

EQ filter: 60 Hz / Q = 1.0 / -1 dB
