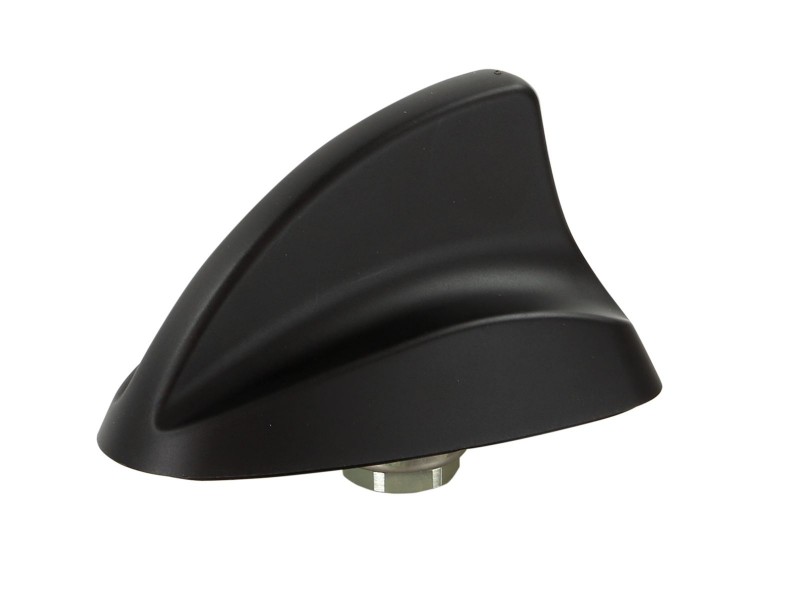

Antena Roof antenna AM/FM DAB/DAB+ GNSS(GPS/GLONASS) Shark II (7677890)

Reception mode:

AM/FM

DAB/DAB+

GNNS



Installation:

installation point: roof rear

drill hole round: 19 mm

drill hole square: 15 mm x 15 mm

tightning torque: 6,5 nm +/- 20%



Dimensions:

antenna socket: L = 117 mm / W = 76 mm / H = 62 mm

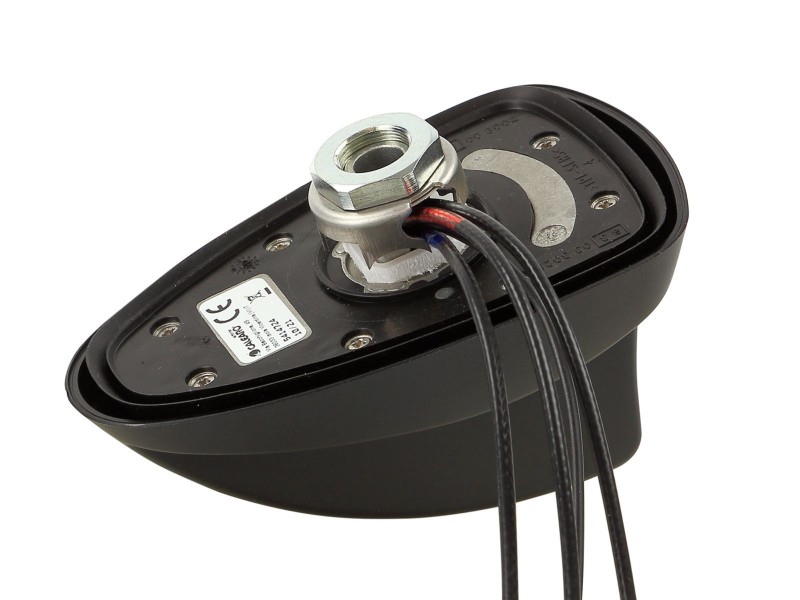

Connections:

AM/FM: Fakra B(m) white RG174 / L=250 mm

DAB/DAB+: Fakra G(f) grau RG174 RG174 / L=200 mm

GNSS: Fakra C(f) blue RG174 / L=350 mm

power supply external: blade terminal 6,3 mm



Frequency range:

AM: 150 kHz - 1710 kHz

FM:  87,5 MHz - 108 MHz

DAB/DAB+: 174 MHz - 240 MHz

GNSS: 1559 MHz - 1065 MHz



Benefit(dB):

DAB/DAB+: 2dBi

GNSS: 28dBi



Power supply:

AM/FM: 12V external / 12V phantom power

DAB+: 12V external / 12V phantom power

GNNS: 3V - 5V phantom power



Power consumption:

AM/FM: 80 mA max

DAB/DAB+: 33 mA max

GNSS: 31 mA max



Impedance:

AM/FM: 50 Ohm

DAB/DAB+: 50 Ohm

GNSS: 50 Ohm



VSWR:

DAB/DAB+: <3:1

GNSS: 1,7:1



Noise figure:

FM: 3,5 db

DAB/DAB+: 2 db

GNSS: 1,4 db



Polarization:

FM: Linear-Vertikal

DAB/DAB+: Linear-Vertikal

GNSS: rechtshändig zirkular RHCP
