BRAX RX2 PRO Black Digital

Power RMS ≤ 1% THD+N RX2 PRO with digital input module

- @ 4 Ohms 2 x 300 Watts

- @ 2 Ohms 2 x 510 Watts

- @ 1 Ohm -

- bridged @ 4 Ohms 1 x 930 Watts

- bridged @ 2 Ohms -

Amplifier technology PURIFIs ″EIGENTAKT″ Class D

Inputs 1 x Optical SPDIF (32 - 96 kHz)

1 x Coaxial SPDIF (32 - 192 kHz)

1 x Remote In

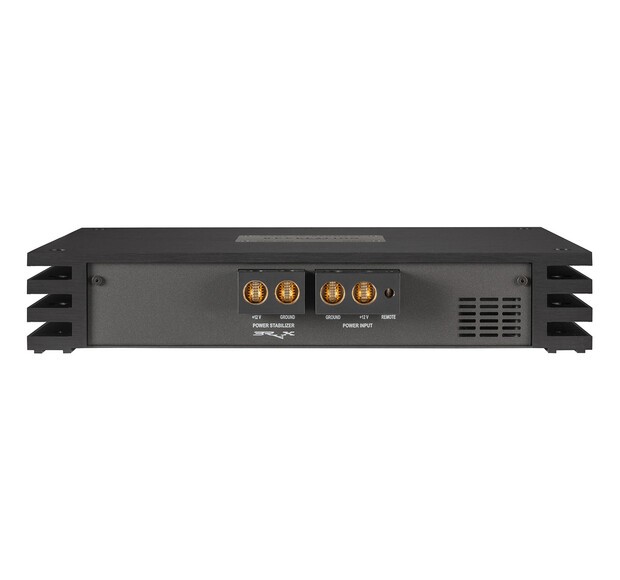

1 x Power Stabilizer Input

Input sensitivity

Input impedance RCA / Cinch

Input impedance highlevel -

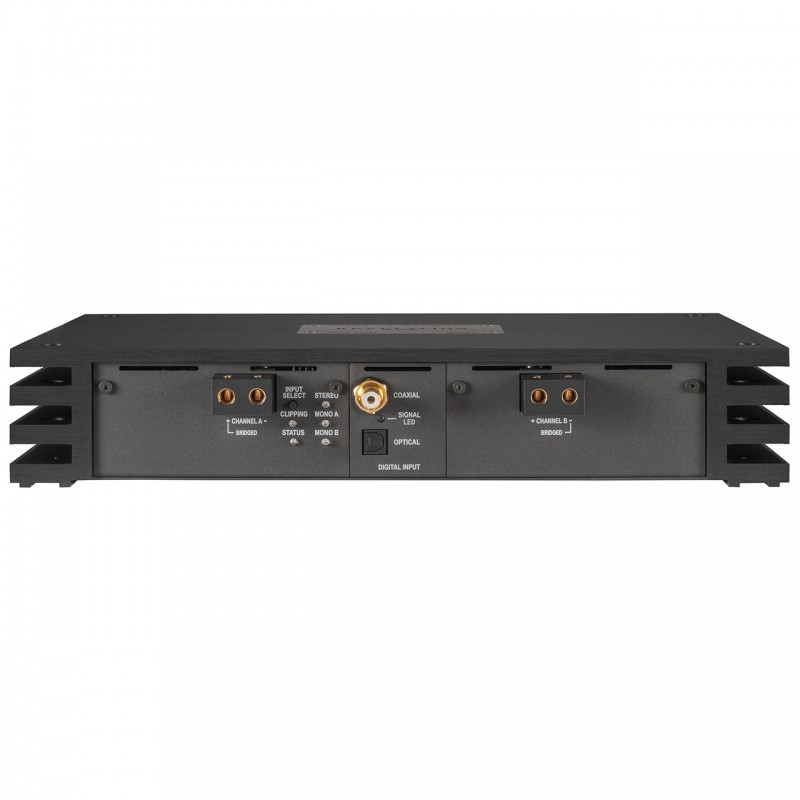

Outputs 2 x Speaker output

Output voltage RCA / Cinch -

Signal converter for digital input ESS 9039Q2M with HyperStream IV Dual DAC technology and advanced ­SABRE HiFi architekture / Supports ­Audiotec ­Fischers proprietary DiSAC technology

Operationsverstärker Analogeingang -

Frequency response 10 Hz - 60 kHz

Bass boost -

Highpass -

Lowpass -

Bandpass -

Subsonic -

Phase -

Slope high- / lowpass -

Slope subsonic / lowpass -

Signal-to-noise ratio digital input 125 dB (A-weighted)

Signal-to-noise ratio analog input -

Distortion (THD) 0.0002 %

Damping factor 10,000

Operating voltage 9 - 18 Volts (max. 5 sec. down to 6 Volts)

Idle current 1.5 A

Power rating DC 12 V ⎓ 160 A max.

Fuse 3 x 30 A LP-Mini-fuse (APS)

Operating temperature range -20° C to +70° C

Additional features Based on Purif′s EIGENTAKT technology, BRAX Power Stabilizer connector, Start-Stop capability, input mode switch

Dimensions (H x W x D) 56 x 310 x 200 mm /

2.21 x 12.21 x 7.87″

Net weight 4.0 kg
