VW CRAFTER/TGE atpakaļskata kamera

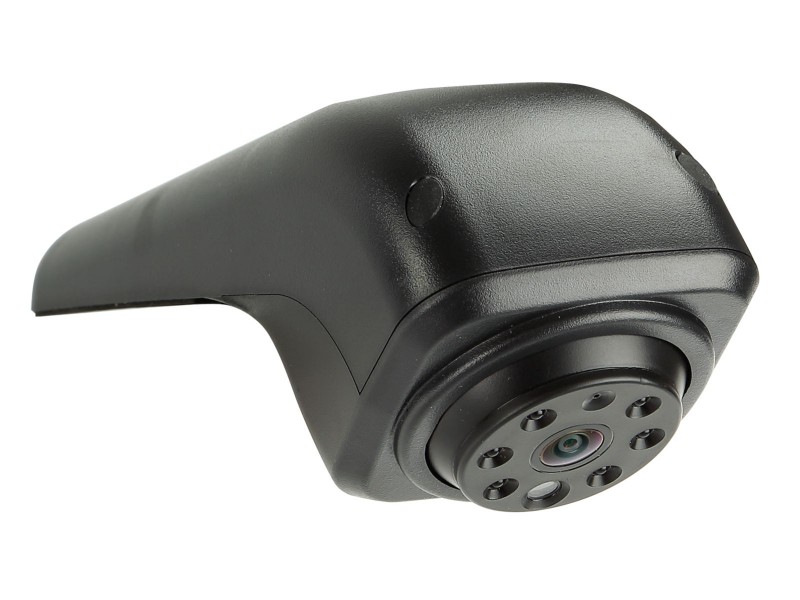

Kamera ar infrasarkano apgaismojumu, kas ir uzstādāma uz centrāla bremžu signāla.

VW Crafter II (SX/SY/SZ) 03/2017 - 2023

Design: plastic

Color: black / red

Extras: guiding lines via jumper, nightview and 20° adjustable view angle

Image sensor: 1/3" CMOS

TV system: NTSC

Effective pixels: 976 x 592

Lens: 1,9mm / F 2.0

Min.Lux: 0 Lux during night view

Resolution: 600 TV lines

Lens angle diagonal: 160° + 5°

View angle: horizontal 115° vertical 75° + 5°

IP Rating: IP 67

Terminal: 4-pin mini-plug ( male ) 5,2 mm

Power supply: DC 12V + 10%

Current consumption: 150mA during active night vision function

Operating temperature: -30°C - 75°C

Storage temperature: -40°C - 80°C

Measurements: see 3´rd OEM brake light

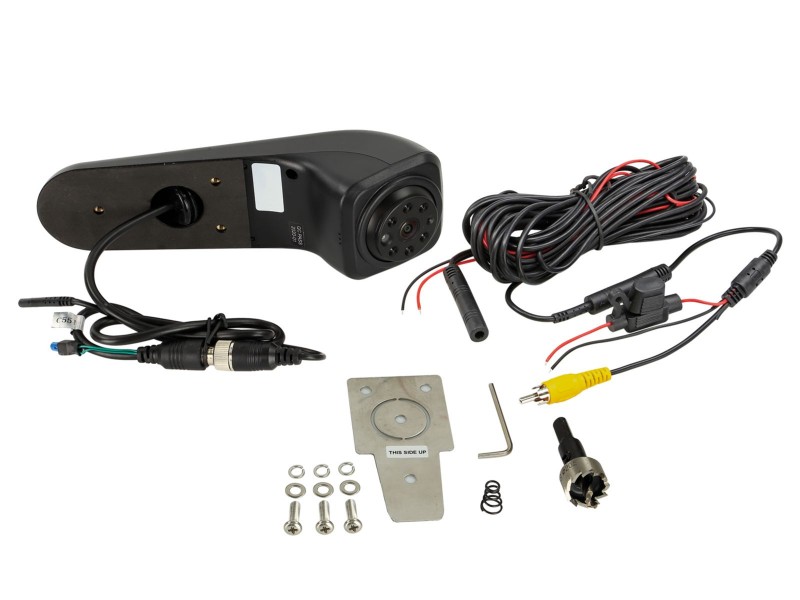

Pigtail at the camera:

1 Meter cable with 4-Pin mini plug (male) 5,2 mm incl. 1 jumper

Cable kit:

6,5 Meter extension cable incl. 3 meter power wire to connect at the reverse light and inlay cable to connect at the power from the device

4-Pin mini plug (female) 10 mm and plug (male) 5,2 mm

0,2 Meter power wire harness incl. fuse and video connector (RCA)
