HELIX PF K130.2

5.25″ 2-way component set

Power RMS / Max. 50 / 100 Watts

Frequency response 65 Hz - 22,000 Hz

Impedance 3 Ω

Sensitivity 91.0 dB @ 2.83V / 1m

87.0 dB @ 1W / 1m

Cone material TW: Silk dome

M:

W: Injected polypropylene with embedded carbon fibers

Crossover Separate, 12/12 dB slope and tweeter protection

Outer diameter TW: - 33.1 mm / 1.30″

- OE mount: 36 mm / 1.42”

- flush mount: 42 mm / 1.65”

- angle mount: 36 mm / 1.42”

M: -

W: 129 mm / 5.08″

Installation diameter TW: - 33.1 mm / 1.30″

- OE mount: 36 mm / 1.42”

- flush mount: 36 mm / 1.42”

- angle mount: –

M: -

W: 112 mm / 4.41″

Installation depth TW: - 9.8 mm / 0.38″

- OE mount: 16,8 mm / 0.66”

- flush mount: 11 mm / 0.43”

- angle mount: –

M: -

W: 52 mm / 2.05″

Dimensions crossovers 75.5 x 35.1 x 24 mm / 2.97 x 1.38 x 0.95”





Scope of delivery

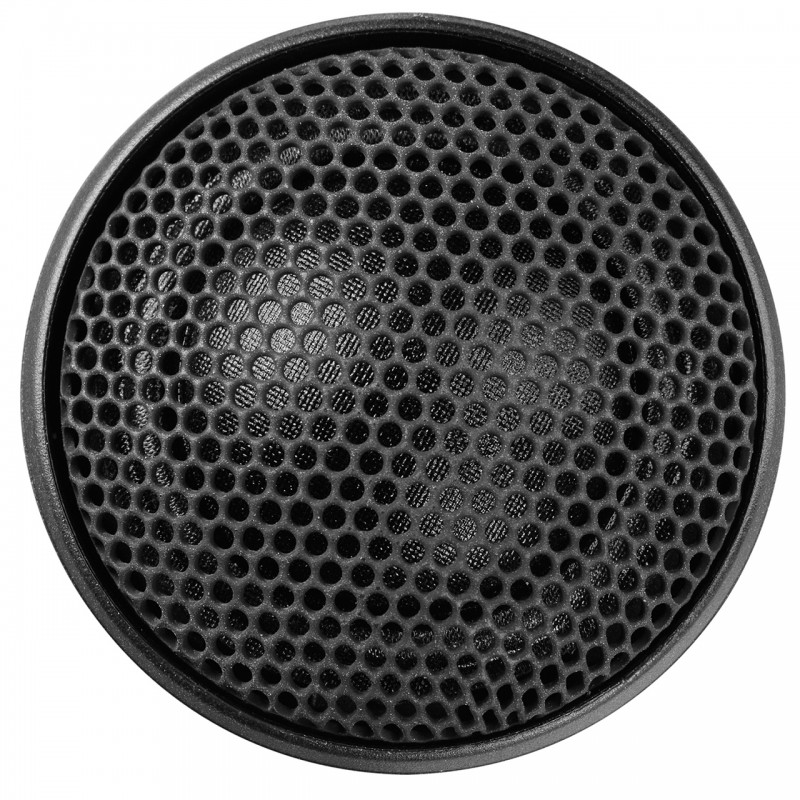

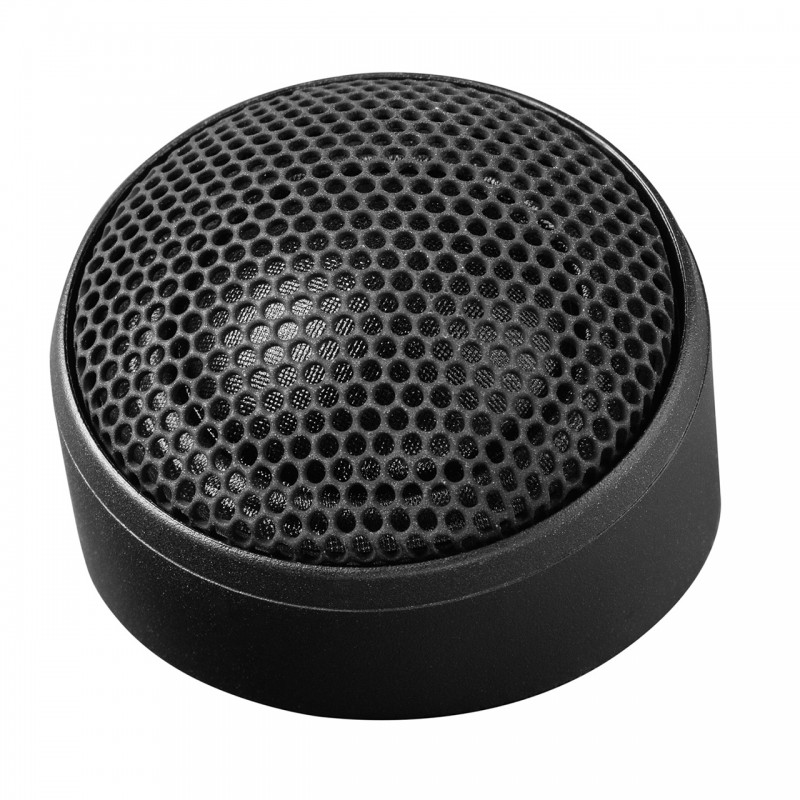

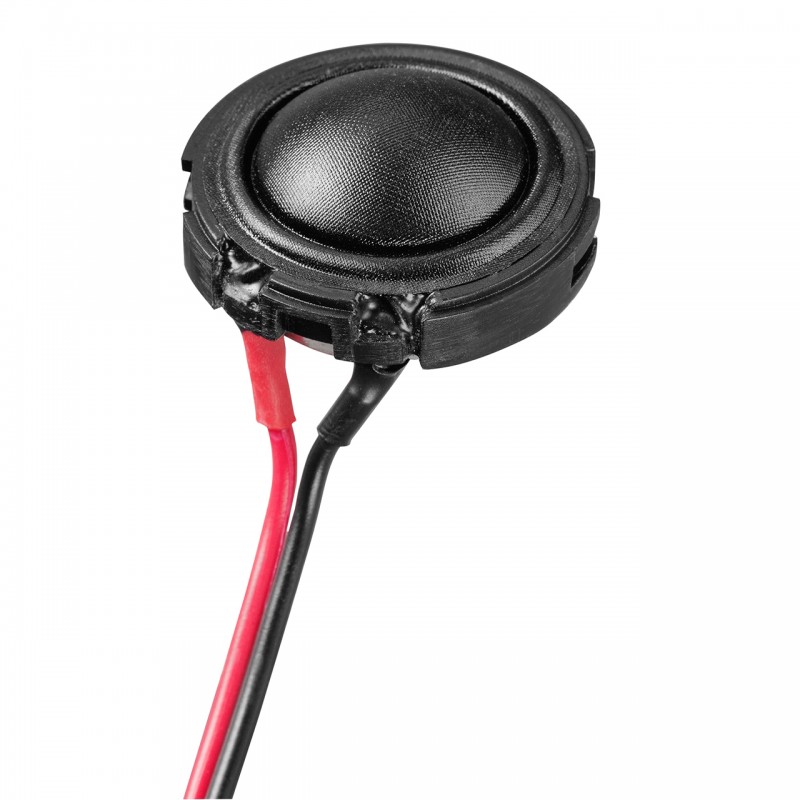

2 x Tweeter HELIX PF T20-S

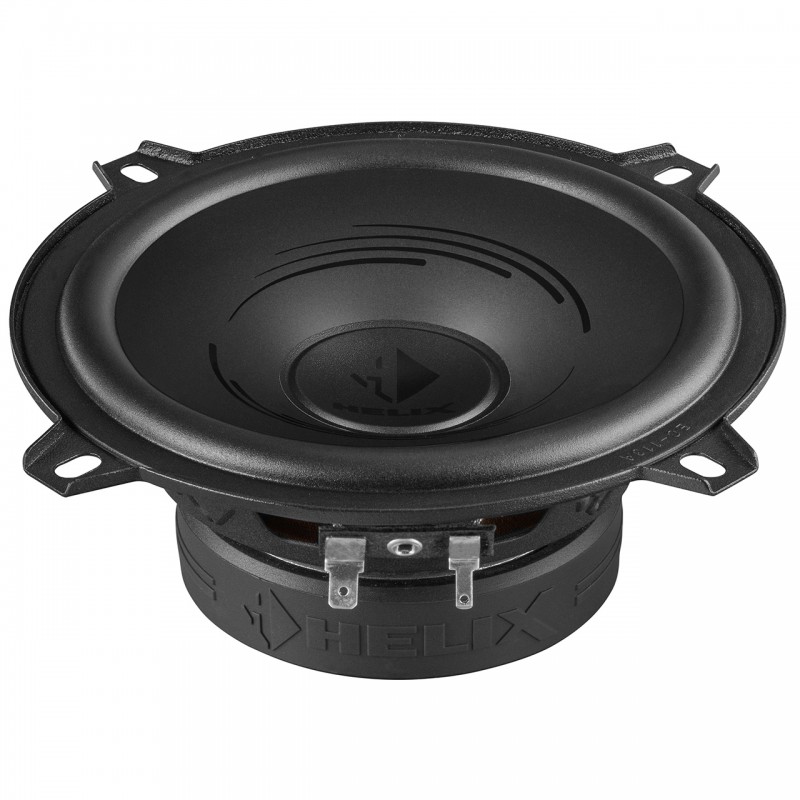

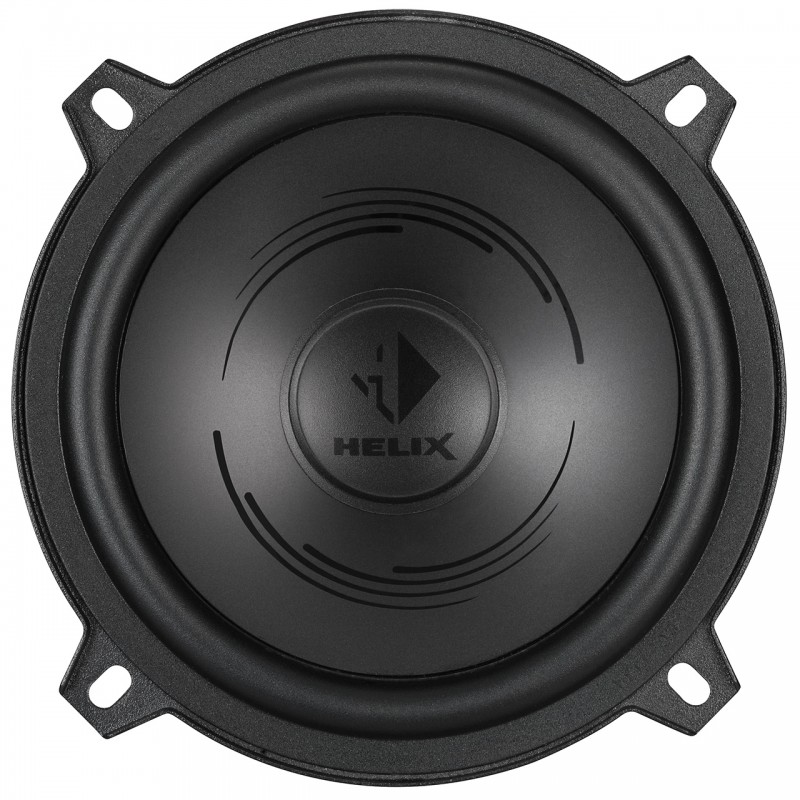

2 x Woofer HELIX PF W130

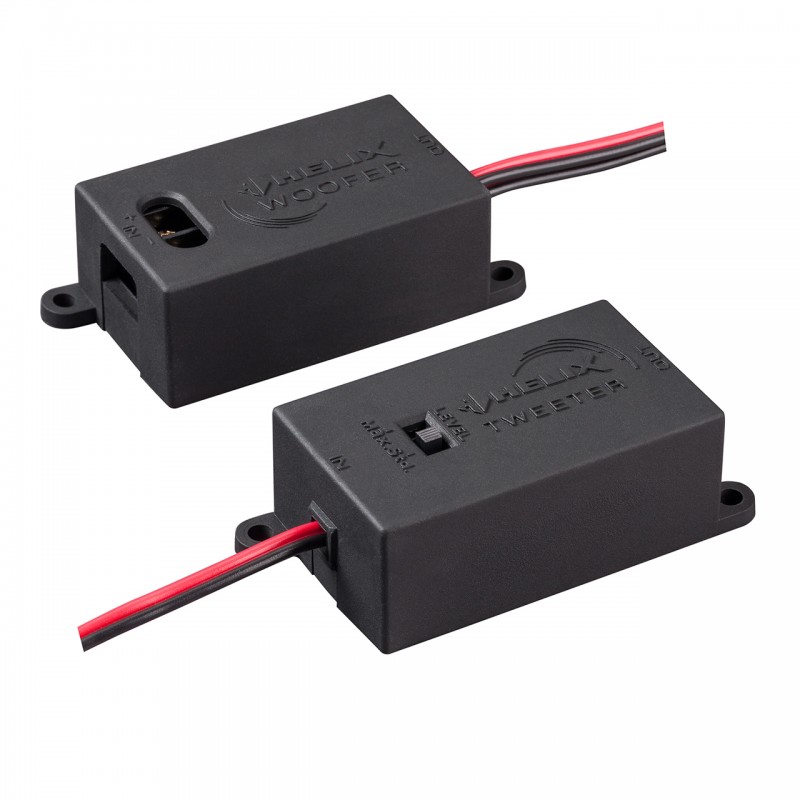

2 x Two-part Flex-Crossover

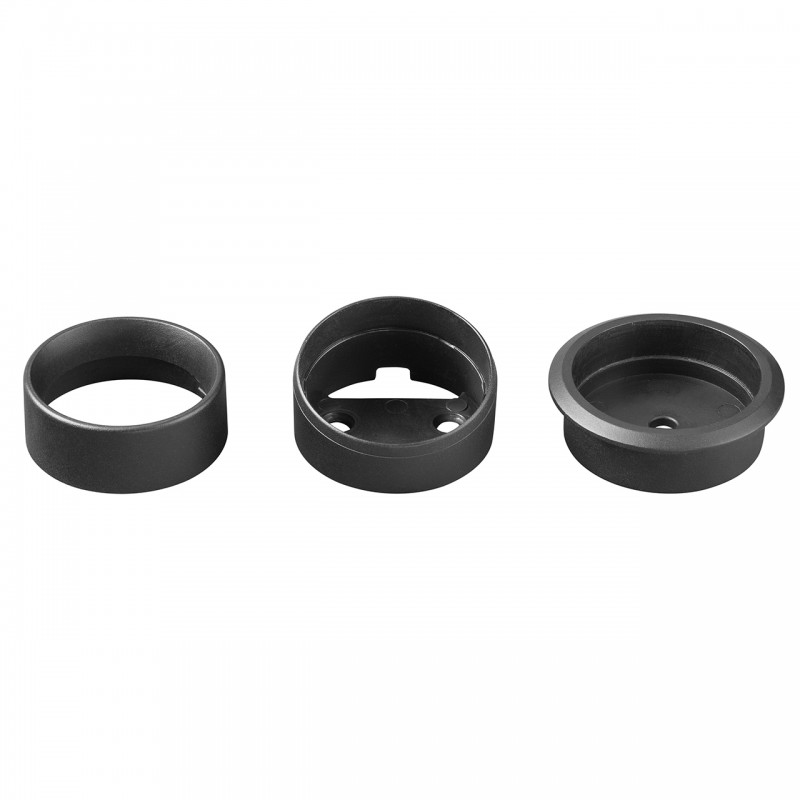

6 x Tweeter mounting accessories

1 x Mounting material

1 x Instruction manual

1 x Mounting pattern
