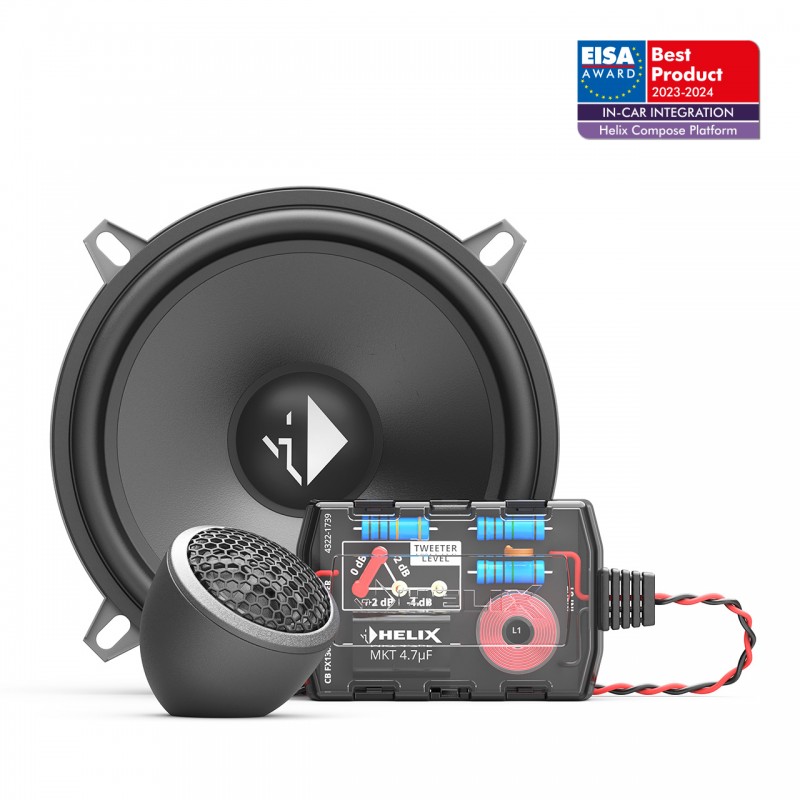

Helix Ci3 K130.2-S3 - 3Ohm

Power handling RMS / Max. P 90 / 135 Watts

Frequency response 80 Hz - 25,000 Hz

Impedance Z 3 Ω

Sensitivity SPL 91 dB @ 2.83V / 1m

87 dB @ 1W / 1m

Outer diameter ø

Tweeter: 32.0 mm / 1.26”

Midbass: 130.0 mm / 5.12”



Installation diameter ø

Tweeter: 32.0 mm / 1.26”

Midbass: 116.5 mm / 4.59”



Installation depth

Tweeter: 9.8 mm / 0.39”

Midbass: 55.4 mm / 2.18”



Dimensions crossover

103.3 x 50.4 x 25.0 mm /

4.07 x 1.98 x 0.98”





Midbass

Impedance Z 3 Ω

DC resistance Re 3.1 Ω

Resonance frequency Fs 89 Hz

Mechanical Q factor Qms 3.11

Electrical Q factor Qes 0.97

Total Q factor Qts 0.74

Compliance Cms 350 μm/N

Equivalent air volume Vas 4.6 L

Force factor B*l 4.0 Tm

Cone area Sd 98 cm2

Moving mass Mms 9.1 g

Mechanical resistance Rms 1.65 kg/s

Voice coil diameter ø 25 mm

Voice coil winding height



10.5 mm

Max. linear excursion Xmax +/- 3.2 mm



Tweeter

Impedance Z 4 Ω

Resonance frequency Fs 1800 Hz

Voice coil diameter ø 20 mm



Features

Tweeter

Ultra compact, titanium dome, neodymium magnet and FlexMount20



Midbass

Paper with Cenosphere coating and ProConnect terminal



Crossover

Tweeter: 12 dB highpass, protection and level adjustment

Midbass: 6 dB lowpass



Compatibility

FlexMount20

WireKits



Scope of delivery

2 x Tweeter Ci3 T20FM-TI

2 x Midbass Ci3 W130-S3

2 x Crossover Ci3 FX-UNI.2

2 x Lowpass cable crossover Ci3 FX-WLP.2

2 x Tweeter mounting accessories

2 x COMPOSE Connect Kit

1 x Mounting material
