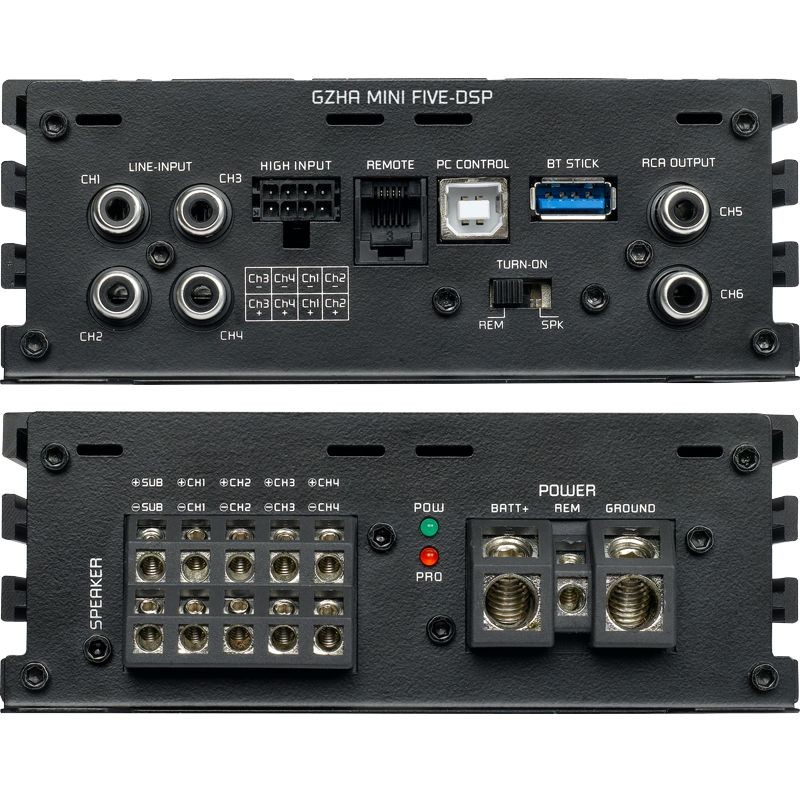

Ground Zero GZHA MINI FIVE-DSP

Adjustable crossover (HPF / LPF / BPF from 20 Hz to 20 kHz)

Solid heatsink with engraved Ground Zero lettering

High-level input with auto-on function

Download DSP-software here: https://www.ground-zero-audio.com/en/produkt/gzha-mini-five-dsp/

Channels 5+7 DSP

Output Power (@ 4Ω) 4x 75 + 190 Watts RMS

Output Power (@ 2Ω) 4x 125 + 320 Watts RMS

Output Power (@ 1Ω) (subwoofer channel) 500 Watts RMS

max. Output Power (CEA-2006A / 10%THD+N) 1200 Watts

Damping factor 100

Input sensitivity (RCA) 300 mV – 1.0 V

Frequency Response: 20 Hz – 20 kHz

HPF / LPF / BPF: DSP

Bass Boost / Phase switch: DSP

High level input / Auto-on

Fuse(s) 2x 40A (internal)

Dimensions (W x L x H) 135 x 322 x 52 mm / 5.31″ x 12.68″ x 2.05″

Frequency range 20 Hz – 20 kHz (-3 dB)

SNR / line input ≥115 dB

SNR / high level input ≥105 dB

THD / line input 0.002 %

THD / high level input 0.010 %

DSP chipset 2x Analog Devices SigmaDSP

Input impedance Line input (RCA) ≥20 kΩ

High-level input 39 Ω

Remote input voltage 10 V

Switching voltage / speaker input 1.3 V

Turn on delay 8 seconds

Software compatibility Microsoft Windows™ XP SP3, Vista, 7, 8, 8.1,10

Preset memory 6 presets (individually assignable)

Gain range -60 bis +6 dB

Equalizer 8x 10 band EQ (20 Hz – 20 kHz) with adjustable Q

Time delay 0 – 8 ms / 0 – 272 cm / 0 – 107“

Crossover 6 / 12 / 18 / 24 dB/oct. slope with selectable filter

characteristic

Phase correction 0° / 180°
