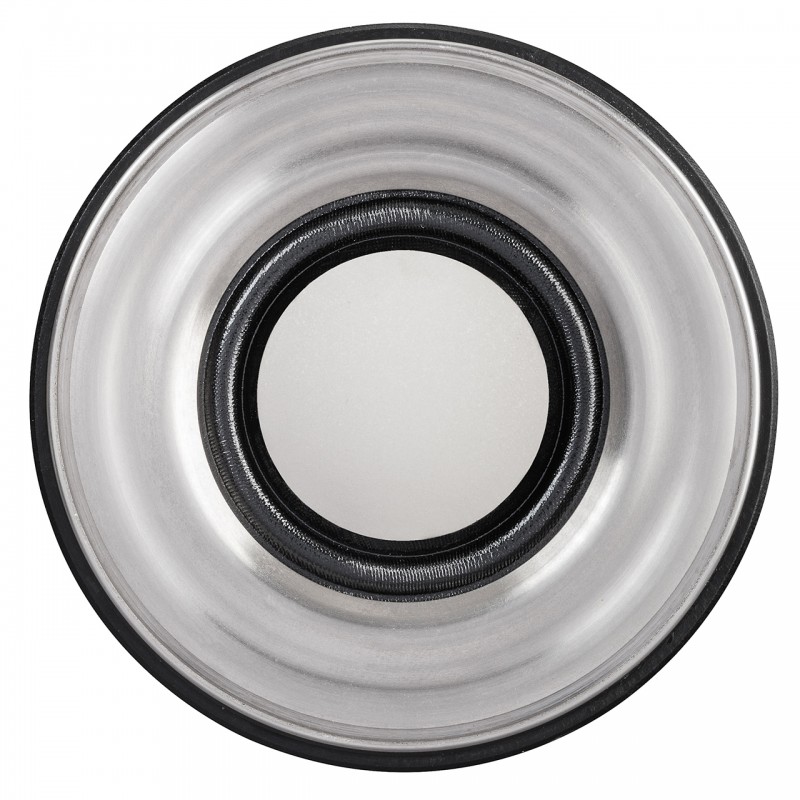

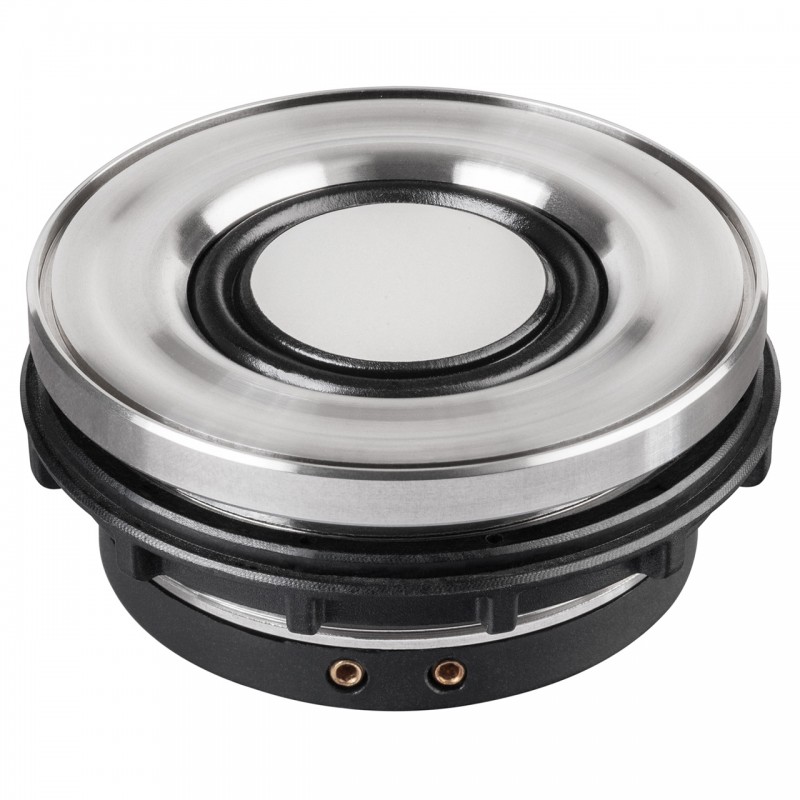

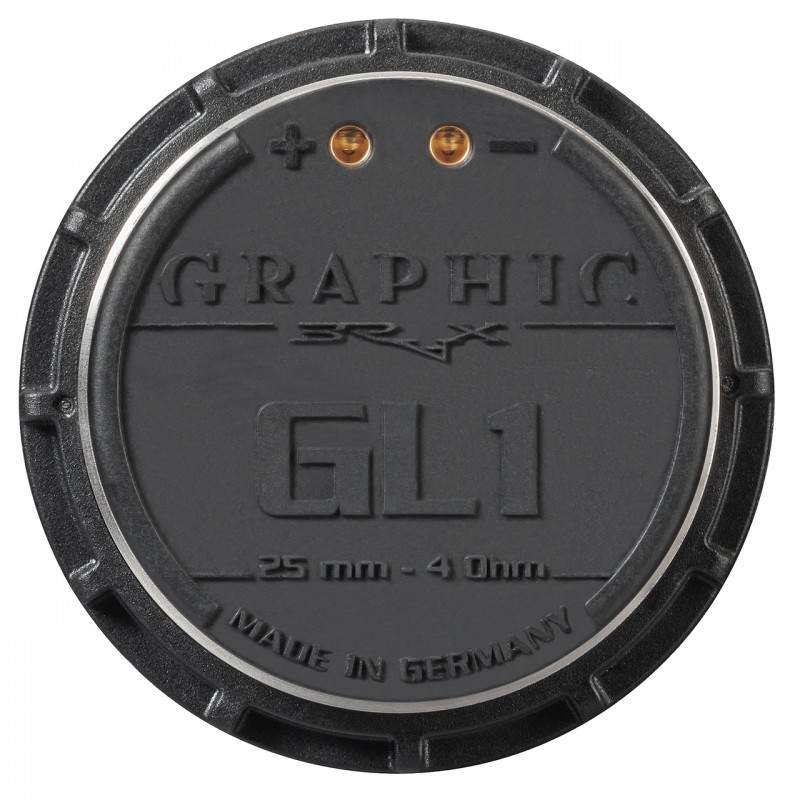

BRAX GRAPHIC GL1 MK2

Power handling RMS / max. P 100 / 150 Watts

(highpass 3,000 Hz at 12 dB/Oct.)

Impedance Z 4 Ω

DC resistance Re 3.4 Ω

Frequency response 2,000 Hz - 25,000 Hz

Resonance frequency Fs 900 Hz

Sensitivity SPL

93 dB @ 2.83V / 1m

90 dB @ 1W / 1m

Voice coil diameter ø 25 mm / 1″

Cone area Sd 4.9 cm²

Moving mass Mms 0.36 g

Cone material Ceramic aluminum hard dome

Outer diameter ø 60 mm / 2.4″

Installation diameter ø 52 mm / 2.0″

Installation depth 21.5 mm / 0.9″



Recommended crossover frequencies for the highpass

Slope Minimum crossover frequency

6 dB/Octave 4,000 Hz

12 dB/Octave 3,000 Hz

24 dB/Octave 2,000 Hz



Scope of delivery

2 x High-End Tweeter BRAX GRAPHIC GL1 MK2

2 x Mounting ring

2 x Grille

1 x Allen key

1 x Data sheet
