MATCH UP 8DSP MK2

Technical data

Power RMS ≤ 1% THD+N

- @ 4 Ohms Channels A - F: 65 Watts (min. 3 Ohms*)

Channels G - H: 75 Watts (min. 3 Ohms*)

- @ 2 Ohms Channels G - H: 125 Watts

- @ 1 Ohm -

- bridged @ 4 Ohms -

- bridged @ 2 Ohms -

Max. output power per channel** Channels A - F: up to 80 Watts RMS @ 4 Ohms

Channels G - H: up to 90 Watts RMS @ 4 Ohms

Channels G - H: up to 160 Watts RMS @ 2 Ohms

Amplifier technology Class GD

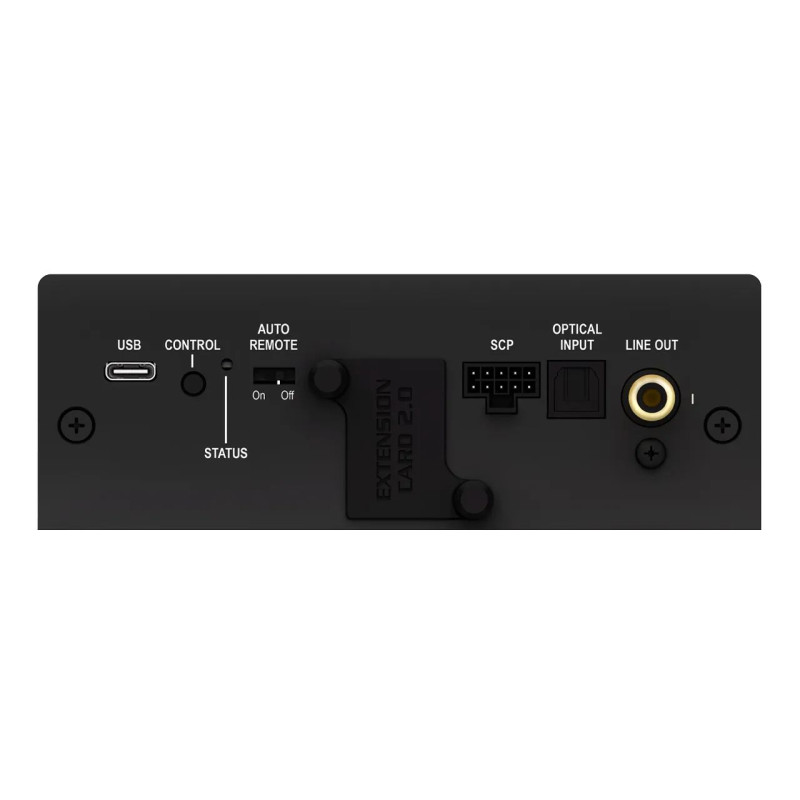

Inputs 6 x Highlevel speaker input

1 x Optical SPDIF (12 - 96 kHz)

1 x Extension Card 2.0

Input sensitivity 2.8 - 11 Volts

Input impedance RCA / Cinch -

Input impedance highlevel 9 - 33 Ohms with ADEP.3

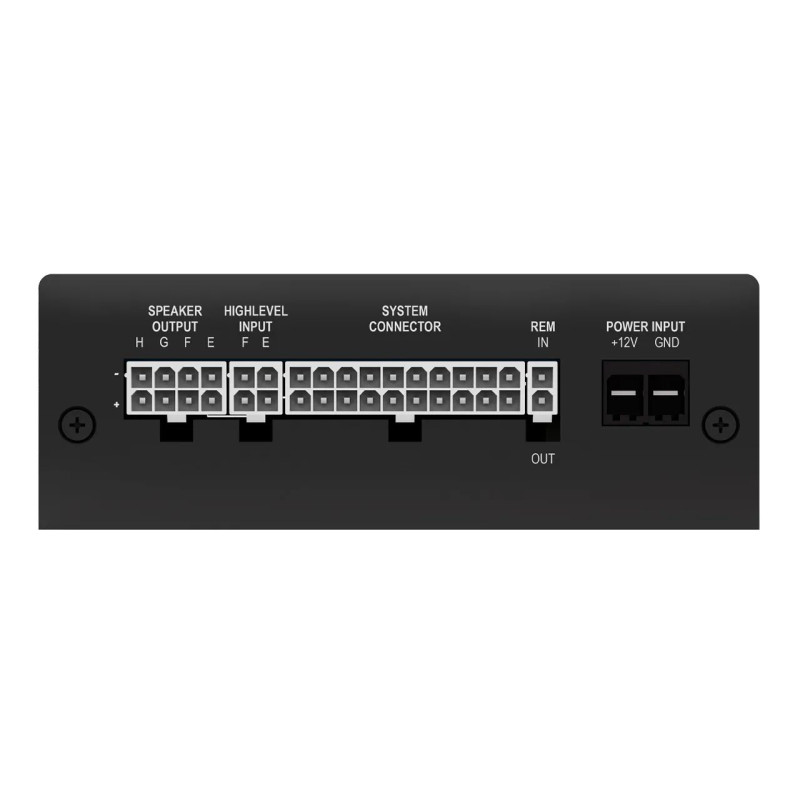

Outputs 8 x Speaker output

1 x RCA / Cinch

1 x Remote Out

Output voltage RCA / Cinch 3 Volts RMS

Frequency response 15 Hz - 22,000 Hz

DSP resolution 64 Bit

DSP power 295 MHz (1.2 billion MAC operations/second)

Sampling rate 48 kHz

DSP type Audio signal processor

Signal converters A/D: BurrBrown

D/A: BurrBrown

Signal-to-noise ratio digital input 104 dB (A-weighted)

Signal-to-noise ratio analog input 100 dB (A-weighted)

Distortion (THD @ 1 kHz, 1 W into 4 Ohms) 0.015 %

Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms) 0.02 %

Distortion (THD @ 100 Hz, 1 W into 4 Ohms) -

Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms) -

Operating voltage 10.5 - 18 Volts (max. 5 sec. down to 6 Volts)

Power rating DC 12 V ⎓ 40 A max.

Idle current 380 mA

Max. remote output current 500 mA

Operating temperature range -40° C to +70° C

Fuse 2 x 25 A LP-Mini-fuse (APS)

Additional features Class GD technology with dynamically controlled power supply, 32 Bit CoProcessor, ADEP.3 circuit, Start-Stop capability, Smart Control Port, USB-C, Auto Remote switch

Dimensions (H x W x D) 46 x 130 x 153 mm /

1.81 x 5.12 x 6.02″

* DC resistance min. 3.0 Ohms

** In typical multi-channel applications
