DD AUDIO BASSKIT MINI6

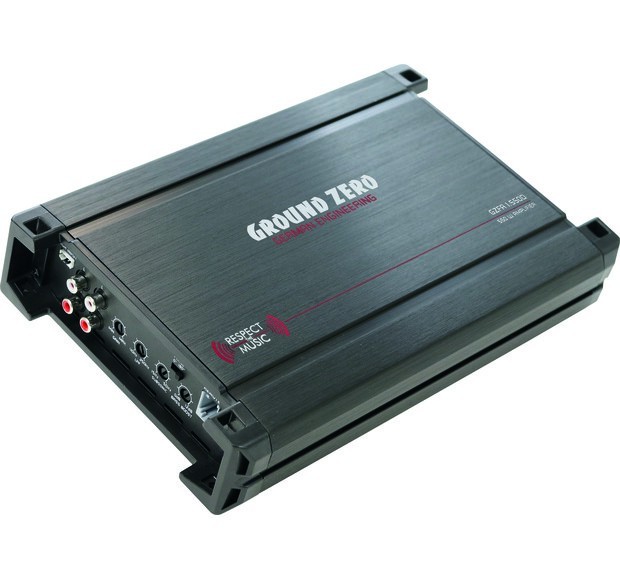

GZFA 1.550D

Amplifier type: Mono Class D

Output power (RMS) @ 4 Ω: 185 W (1% THD+N)

Output power (RMS) @ 2 Ω: 280 W (1% THD+N)

Output power (RMS) @ 1 Ω: 350 W (1% THD+N)

Output power (RMS) @ 1 Ω: 550 W (10% THD+N)

Low pass filter: 40 Hz – 250 Hz (12 dB/oct)

High pass filter: 15 Hz – 50 Hz (12 dB/oct)

Frequency range: 15 Hz – 250 Hz

Signal-to-Noise ratio (SNR): 90 dB

Overall distortion (THD+N): 0.3%

Damping factor: 100

Input sensitivity: 200 mV – 4 V

Recommeded speaker wiring: ≥ 2.5 mm2 / 14 AWG

Recommended power wiring: ≥ 20 mm2 / 4 AWG

Fuse(s): 2x 30A

Dimensions (W x H x L): 180 x 53 x 277 mm.

DD Audio LE-M06d

Recommended amplifier: 250-500 W

Voice coil diameter: 2″

Impedance: 2x 2ohms

Dimensions: 355 x 203 x 266 mm

Shipping Weight: 12 kg
