MAIN FEATURES
- 1-DIN DAB+ infotainer
- Autochip AC8227L Quad-Core ARM Cortex A7 1.3 GHz CPU with 2 GB RAM and 16 GB flash memory
- Android 9.0 operating system for installing Android apps
- Navigation function can be upgraded by installing a suitable Android app*1
- Capacitive, touch-sensitive 10.1"/ 25 cm screen with 1024 x 600 pixel resolution, adjustable display*2
- OSD menu in various EU languages (German, English, Italian, French, Spanish etc.)
- DAB+ tuner with MOT slideshow, station list and DLS text*3
- FM RDS radio with 18 station presets on three selectable FM1 / FM2 / FM3 bands
- Bluetooth 4.0 hands-free module with A2DP music streaming
- Three USB 2.0 ports for A/V file playback*4 and connection of Android smartphones*5
- Control of up to two camera systems with automatic switchover function
- Connection to target vehicles via external SWC/CAN interface*6
- EasyConnection for screen mirroring and integration of Android and iOS smartphone apps
- RGB multicolor sensor key illumination
- Integrated 4 x 45 watt power amplifier
- Integrated WiFi module (WiFi IEEE 802.11 b / g / n)
BLUETOOTH
- MTK6625 Bluetooth 4.0 hands-free module
- Synchronization of 1000 phone book contacts with 3 phone numbers each
- Search function for phone book contacts
- A2DP BT music streaming with display of iD3 tag and AVRCP 1.3
- Internal and external Bluetooth microphone*7
MULTIMEDIA + AUDIO
- DAB+ receiver with single tuner
- FM RDS radio with 18 station presets
- Three USB 2.0 ports on the back of the device for playing A / V files from a USB data carrier
- EasyConnection for Android OS and Apple iOS smartphones
- Audio software DSP:
- - Runtime correction for front and rear channels with 0 to 20 mS delay
- - Balance, fader, loudness and SmartBass adjustment options
- - High pass crossover with 6 selectable crossover frequencies
- A2DP BT music streaming with AVRCP 1.3
- 1 x HDMI input for accessories and compatible mobile devices
- Integrated 4 x 45 watts power amplifier
CONNECTIONS
- 4.2 RCA preamp outputs (3 V)
- 2 x RCA A / V input for camera video signal (CVBS) with switched power supply
- 1 x DIN FM antenna input
- 1 x SMA DAB antenna input with 12 V power supply
- 1 x RCA video output (CVBS, NTSC)
- 1 x RCA A / V input with NTSC / PAL auto switching (CVBS)
- 3 x USB 2.0 port, each with 700 mA charging current for Android smartphones
- 1 x HDMI input
- 1 x 3.5 mm jack input for external Bluetooth microphone
- 1 x input for connecting the teachable steering wheel button interface
- 1 x IR-In input for connecting an external SWC / CAN interface
- 1 x SMA input for GPS receiver
*1 The R-D111 infotainer allows the installation of navigation apps for Android systems

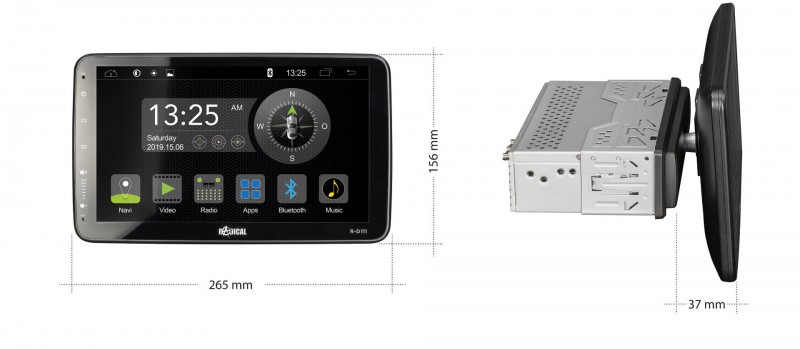

*2 Display tilt angle adjustable via ball joint (+20° to -20°) and adjustable display height base position (+30 mm to -30 mm)
*3 The active DAB antenna is included in the set
*4 Supported A / V file formats: MP3, FLAC, AAC, WMA, AVI, MPEG-1/2, MPEG4, M4V (H.264), MKV 1080p, XviD
*5 With 700 mA charging current per connected smartphone
*6 External SWC / CAN interface must be purchased separately for the target vehicle
*7 The external microphone is included in the set
