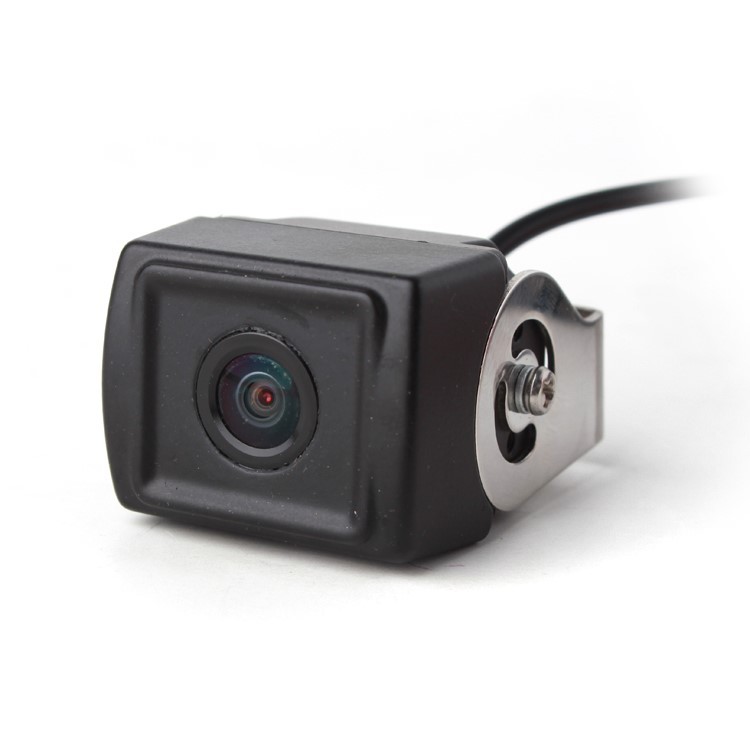

UNIVERSAL REAR VIEW CAMERA Kenwood CMOS130

Key Features

Wide-angle mirror view image

1/4-inch colour CMOS sensor

380,000 pixels

NTSC Video Signal Out (RCA)

Waterproof unit (iP67)

flexible mount base

Camera Unit

Camera Type    1/4-inch colour CMOS sensor

Effective number of pixels roughly    380000

High sensitivity Pixels    Yes

Output video    wide angle mirror image

Waterproof chassis    Yes

Mounting system    Fexible mount base

Installation positions    Rear

High voltage protection    Yes

Wide angle lens    Yes

Focal length    f: 1.12mm, F value 2.2

Horizontal Angle view    +/- 129°

Vertical Angle View    +/- 104°

Illumination range    approx. 0.9 to 100000 lux

Iris System    Electronic

White balance    Automatically

Scanning System    Interlace

Synchronizing System    Internal

Video output level    1Vpp, 75Ω

Video signal format    NTSC (Mirror view)

Connection cable (DC+video)    0.7 m

General Specifications

Operating voltage    14.4V (9 ~ 16V Allowable)

Maximum Current Consumption    0.06A

Dimensions (WxHxD)    23.4 x 23.4 x 23.9mm

Weight    21 gr.
