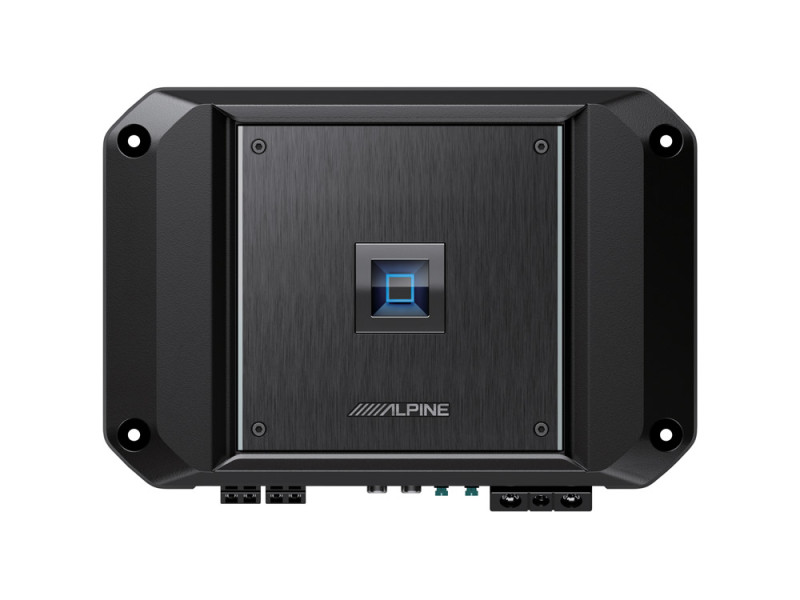

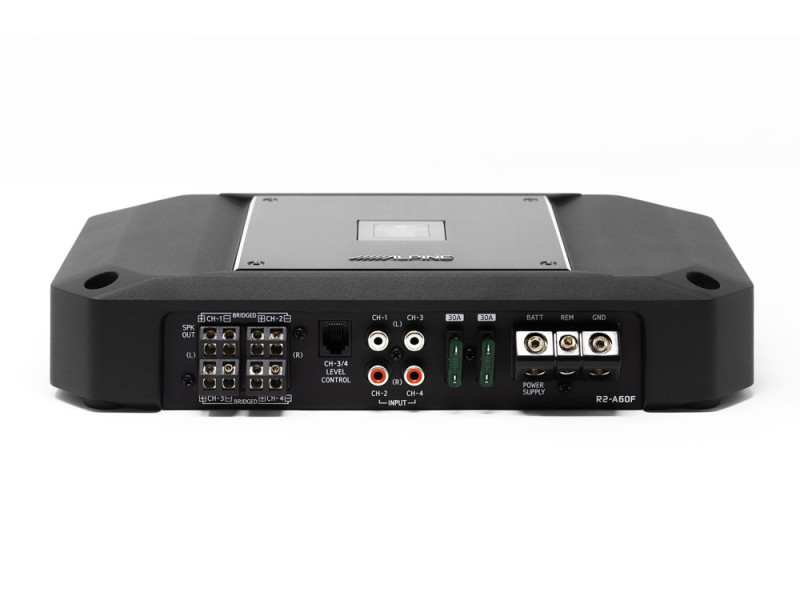

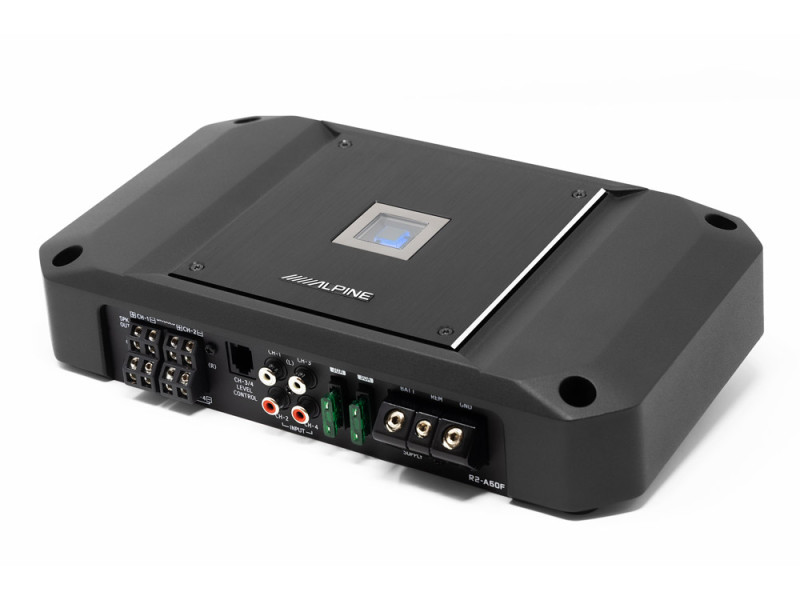

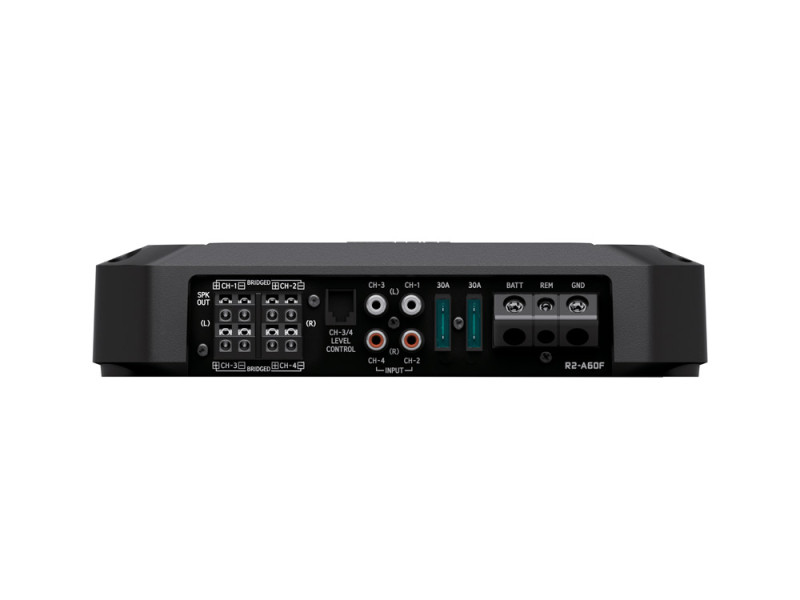

Alpine R-A60F

Max Power Output Ratings

• Total Max Power: 1200W

RMS Power Ratings

• Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 4 x 150W


• Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 4 x 100W


• Bridged, 4 Ohms, 14.4V: 2 x 300W

Sound Tuning

• Crossover: Variable HPF/LPF: 50-400Hz (-12dB/oct )


• Crossover: Variable HPF-H: 400Hz-6kHz

General

• Power Requirements: 14.4 V.DC (9 - 16 V allowable)


• Input Sensitivity (RCA Input): Hi: 0.5V - 10V / Low: 0.2V - 4.0V


• High Level Input with automatic power on


• Cable size: Power Cable AWG 4, SPK Cable AWG 8


• Frequency Response (+0/ -3dB: 1W into 4 Ohms): 10Hz – 45kHz


• THD+N (@ 10W into 4 Ohms): <0.03%


• Damping Factor: >500


• Weight: 3.2kg

Dimensions

• Heat Sink (WxHxD) mm: 273 x 50.8 x 200


• With attached brackets: 273 x 50.8 x 223
