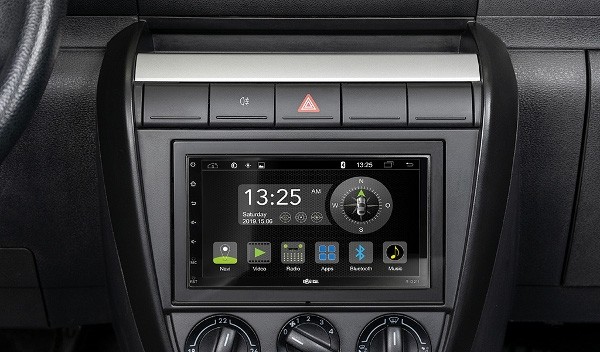

2-DIN Android car radio R-D211

Fits in all vehicles with 2-DIN installation slot

Capacitive, touch-sensitive 7"/ 17.8 cm touchscreen

DAB+, FM, USB, Bluetooth, WiFi / WLAN, app mirroring

MAIN FEATURES

    2-DIN DAB+ infotainer

    Autochip AC8227L Quad-Core ARM Cortex A7 1.3 GHz CPU with 2 GB RAM and 16 GB Flash memory

    Open System Android 9.0 OS for the installation of Android apps

    Navigation function upgradable by installation of suitable Android app*1

    Capacitive, touch-sensitive 7” / 17.8 cm display screen with 1024 x 600 pixels resolution

    OSD menu in various EU languages (German, English, Italian, French, Spanish, etc.)

    DAB+ tuner with MOT slideshow, station list and DLS-text*2

    FM RDS radio with 18 pre-set stations on selectable FM1/FM2/FM3 bands

    Bluetooth hands-free module and A2DP music streaming

    Three USB 2.0 ports for A/V-file playback*2 and connection of Android smartphones*4

    Control of up to two camera systems with auto switching function

    Target vehicle integration via external SWC / CAN interface*5

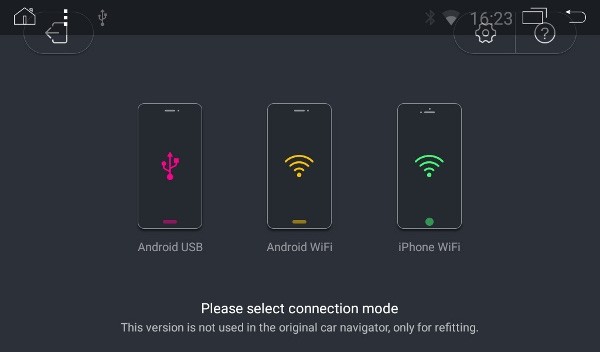

    EasyConnection for screen mirroring and the integration of Android and iOS smartphone apps

    RGB multicolour soft key illumination

    Integrated 4 x 45 watts amplifier

    Integrated WiFi module (WLAN IEEE 802.11 b/g/n)

BLUETOOTH

    MTK6625 Bluetooth 4.0 hands-free module

    Synchronization of 1,000 phone book contacts and 3 numbers each

    Search function for phone book contacts

    A2DP BT music streaming with iD3-tag and AVRCP 1.3

    Internal and external Bluetooth microphone*6

MULTIMEDIA + AUDIO

    DAB+ receiver with single-tuner

    FM RDS radio with 18 pre-set stations

    Three USB 2.0 ports on the rear for A/V-file playback

    EasyConnection for Android OS and Apple iOS smartphones

    Audio software DSP for: Time alignment for front and rear channels with 0 to 20 mS delay, 10-bands graphical equalizer, 4 predefined sound-profiles, Balance, Fader, Loudness and SmartBass adjustment options, high-pass crossover with 6 selectable crossover frequencies

    A2DP BT music streaming with AVRCP 1.3

    HDMI input for compatible accessories and mobile devices

    Integrated 4 x 45 watts amplifier

CONNECTIONS

    4.2 RCA line pre-outs (3 V)

    2 x RCA A/V input for camera video signal (CVBS) and switched power supply

    1 x DIN FM antenna input socket

    1 x SMA DAB antenna input socket with 12 V phantom power supply

    1 x RCA video output (CVBS, NTSC)

    1 x RCA A/V input with NTSC/PAL auto switching (CVBS)

    3 x USB 2.0 port with 700 mA charging current for each smartphone

    1 x HDMI input

    1 x 3.5 mm jack connector for external Bluetooth microphone

    Input for the connection of the programmable SWC interface

    1 x IR-In input for connection of an external SWC/CAN interface

    1 x SMA input for GPS receiver

*1 The R-D211 allows the installation of navigation apps for Android systems

*2 The active DAB antenna is included in the set

*3 Supported A/V file formats: MP3, FLAC, AAC, WMA, AVI, MPEG-1/2, MPEG4, M4V (H.264), MKV 1080p, XviD

*4 With 700 mA charging current for each connected smartphone

*5 External SWC / CAN interface for target car must be purchased separately

*6 The external microphone is contained in the set
