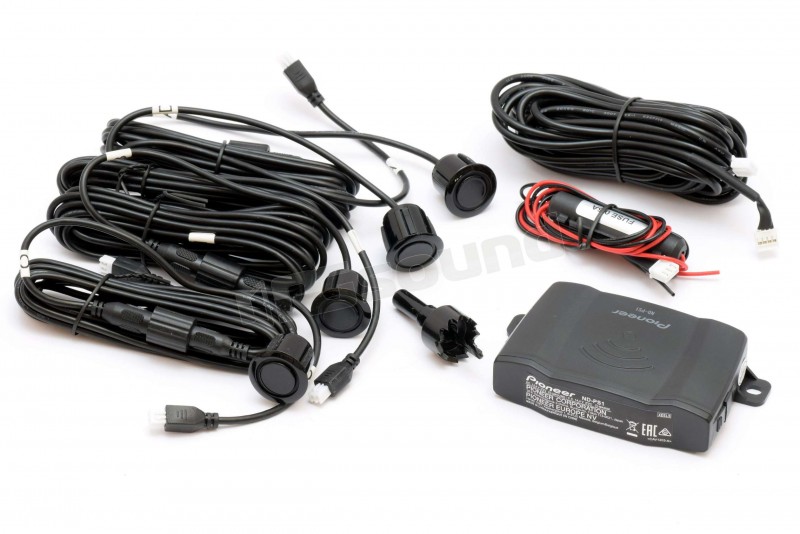

Pioneer ND-PS1 Parking sensori priekš SPH-10BT

Control box specification Nominal voltage    14.4 V DC Operating voltage    10.8 ~ 15.1 V DC Rated current    10 ~ 30 mA at 14.4 V DC Detection Range    0.3 m ~ 2.5 m Operation temperature range    -30°C ~ 80°C Dimensions (WxHxD)    105.3 mm x 21.8 mm x 56.0 mm Weight    50 g / 1 pc Cable length Power cable    1 m Connection cable:    5 m Sensor specifications Center frequency    40 kHz Directivity X-axis    70° Directivity Y-axis    70° Maximum input voltage    120 Vp-p (at 40 kHz) IP code    IP67 Dimensions    φ 23.5 mm x 19.8 mm (exclude cable) Cable length    2.5 m
