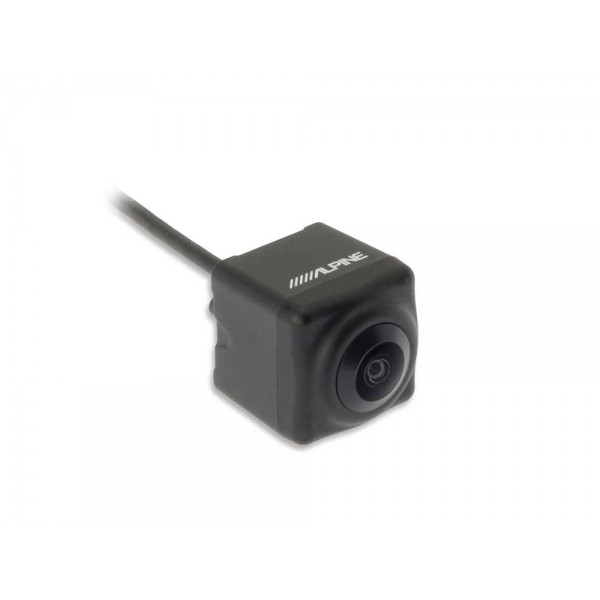

ALPINE HCE-C2600FD

Dimensions

• Camera: 23.6 x 23.6 x 26.1mm (excluding projection on the rear)


• Camera Cable Length: 1m


• Camera Extension Cable Length: 3m

General

• Power Requirement: 6.0V DC (5.0 to 9.0VDC allowable)


• Ground Type: Negative Ground


• Max. Power Consumption: 1.2W (6.0V)

Camera

• Output Image: Normal image, CVBS (NTSC Video signal), for 16:9 wide-screen


• Image Output Impedance: 75 Ohms (1Vp-p)


• Image Sensor: 1/4" Type Color CMOS Image Sensor, Aspect Ratio 16:9


• Effective Number of Pixels: 1280 (horizontal) x 720 (vertical) approximately 1.2 Mega pixels


• Lens: Focal Length: f=1.27mm


• Lens: Brightness: F=1:1.8


• Angle of Field: Horizontal = 180° , Vertical = 70°


• S/N Ratio: 41 dB or more


• Resolution (Horizontal. Center Area): 330 TV Lines


• Operating Temperature: -30°C - +70°C


• Illumination Range: Approximatly 1.5Lx to 100kLx


• Weight: 41g (including cable but not including bracket and screw)
