DLS Scandcase 2

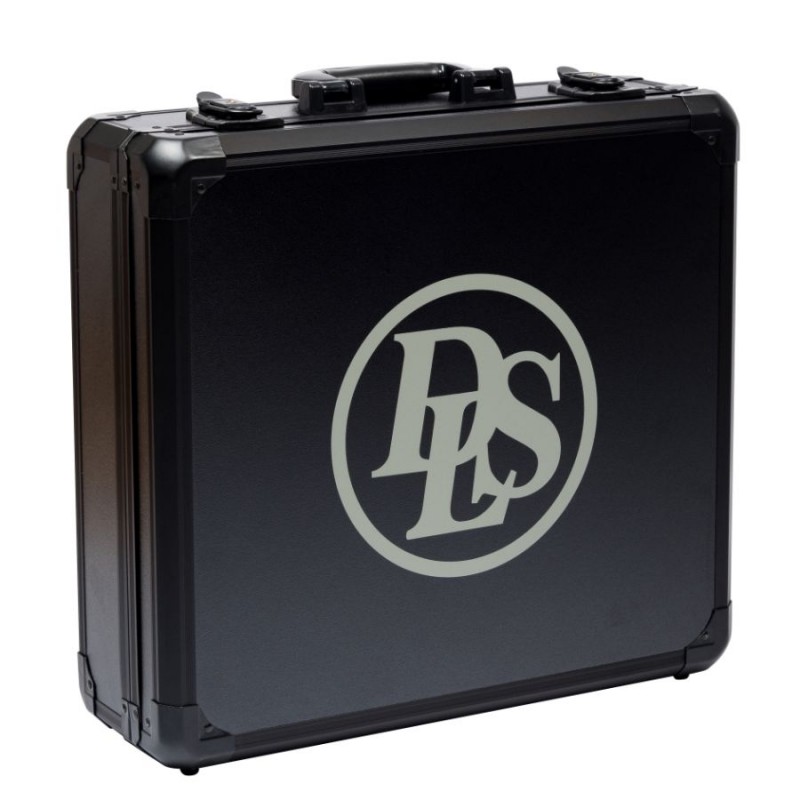

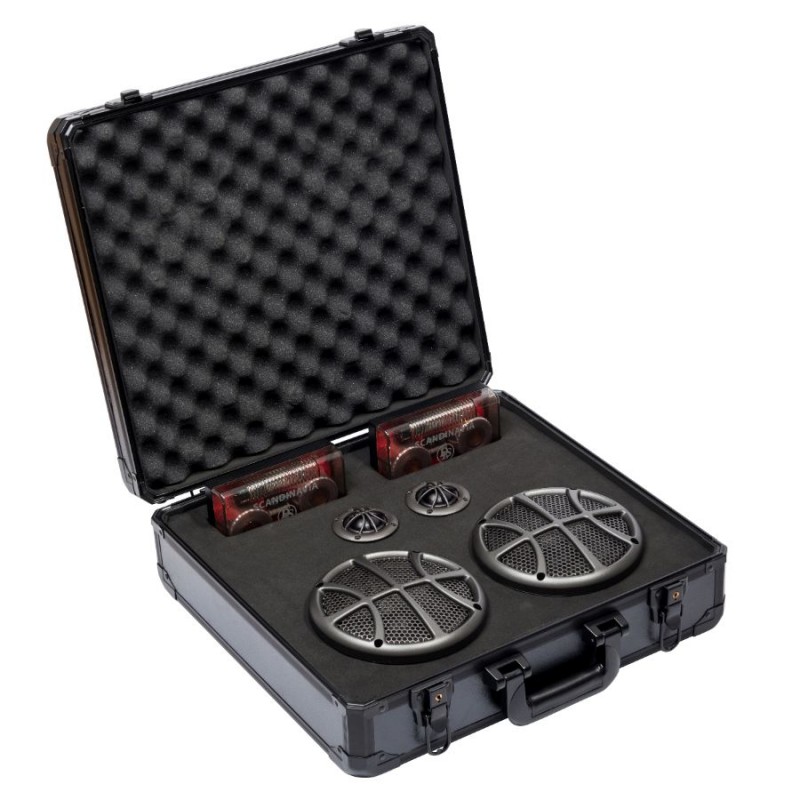

Scandinavia Pro 6.5inch  2-way Component System in Flight Case 200 WRMS



SCANDCASE 2



SCAND-165 Woofer 6,5” / 165mm

SCAND-30 Tweeter 30mm Soft Dome

XO2 2-way Crossover 2-way filter with slope: LP 6 dB / HP 12 dB



Recomended Amplifier 50W - 200W RMS

Impedence 4Ohm



Single componets



Scandinavia 6.5" Woofer with Fibre Glass Cone 50 - 200 WRMS

SCAND-165

DLS Scandinavia 165 is a bass driver specially designed for competition use. The speaker data makes it perfect as mid bass in 2-way configurations.

The extreme audio performance makes it a winner in every Pro installation.

Come in pairs.

Grilles are included.

Fibre glass cone body.

FEATURES AND BENEFITS:

Extreme audio performance, transparent and clear sound

Great imaging and staging capabilities

High resolution and dynamics

Extremely low distortion

Rec. X-over frequency high pass: 50-60 Hz

Rec X-over frequency low pass: 3-4 kHz

Rec. speaker cable: DLS HQS 2 x 2,5 mm.

Optimized for door panel mount but can also be used in sealed boxes of 9 litre (0,31 cuft)

Specifications

Description / type 6,5" mid bass driver

Outer diameter 165 mm / 6,5"

Impedance 4 ohm

Recommended amplifier 50 - 200 Watt

Frequency range 50-4500 Hz

Fs - Resonant frequency 61 Hz

Sensitivity 91,9 dB

Mounting hole 140 mm / 5,51"

Mounting depth 65 mm / 2,56"

T/S parameters

single V/C

Fs 61 Hz Hz Re 3,3 Ohm Qms 15,6

Vas 10,2 liter Vas 0,36 Cuft Qes 0,55

Qts 0,54 Sd 131 cm² BL 6,1

EAN Bar code 73316440824701

Scandinavia 2-way Crossover Kit - 1 x pair



A passive crossover designed for use with Scandinavia 165 bass / midrange driver and Scandinavia 30 tweeter.

High quality ribbon air coils and MXP polypropylene capacitor in the tweeter section.

The tweeter level can be adjusted in 2 steps,



Specifications



Impedance 4 ohm

Description / type 2-way filter with slope: LP 6 dB / HP 12 dB

Crossover point (Hz) 4 kHz

Dimension (W x D x H) 145 x 85 x 45 mm / 5,7 x 3,35 x 1,77"
