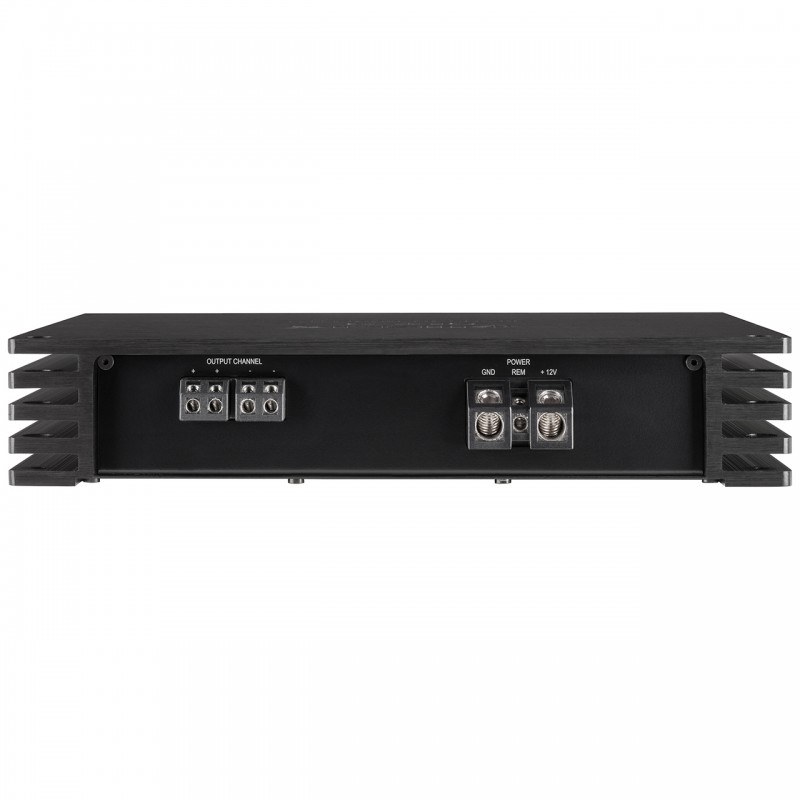

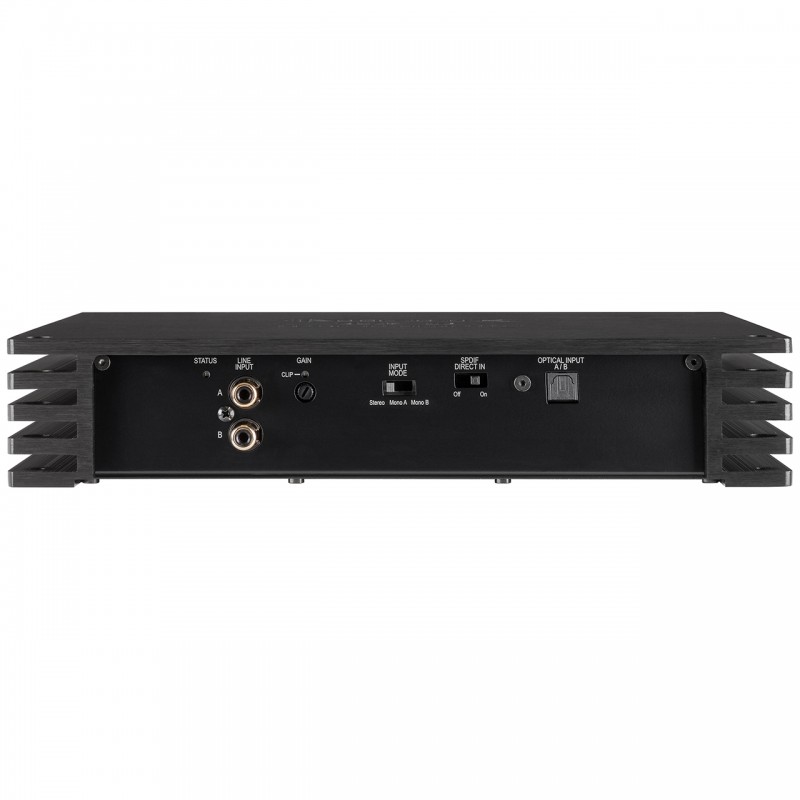

HELIX P ONE MK2

Power RMS  ≤ 1% THD+N

- @ 4 Ohms     1 x 500 Watts

- @ 2 Ohms     1 x 880 Watts

- @ 1 Ohm     1 x 1,500 Watts

- bridged @ 4 Ohms     -

- bridged @ 2 Ohms     -

Max. output power per channel*     Up to 1.800 Watts RMS @ 1 Ohms

Amplifier technology     Class D

Inputs     2 x RCA / Cinch

1 x Remote In

1 x Optical SPDIF (28 - 96 kHz)

Input sensitivity     RCA / Cinch 0.5 - 8 Volts

Input impedance RCA / Cinch     20 kOhms

Input impedance highlevel     -

Outputs     1 x Speaker output

Output voltage RCA / Cinch     -

Signal converter for digital input     BurrBrown 32 Bit DA converter

Frequency response     21 Hz - 40,000 Hz

Bass boost     -

Highpass     -

Lowpass     -

Bandpass     -

Subsonic     21 Hz

Phase     -

Slope high- / lowpass     -

Slope subsonic / lowpass     Butterworth 48 dB/Oct.

Signal-to-noise ratio digital input     110 dB (A-weighted)

Signal-to-noise ratio analog input     110 dB (A-weighted)

Distortion (THD)     < 0.01 %

Damping factor     > 450

Operating voltage     10.5 - 17 Volts (max. 5 sec. down to 6 Volts)

Idle current     1500 mA

Fuse     4 x 30 A LP-Mini-fuse (APS)

Power rating     DC 12 V ⎓ 160 A max.

Additional features     Input mode switch, SPDIF Direct In switch, Start-Stop capability

Dimensions (H x W x D)     50 x 260 x 190 mm
