ALPINE X-A90V

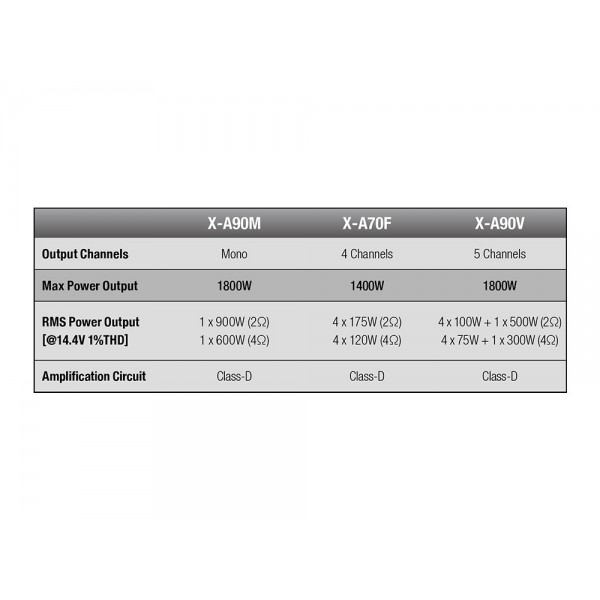

Max Power Output Ratings

• Total Max Power: 1800W

RMS Power Ratings

• Per Channel into 4ohms, 14.4V (≤1%THD+N): 75W RMS x 4 + 300W RMS x 1


• Per Channel into 2ohms, 14.4V (≤1%THD+N): 100W RMS x 4 + 500W RMS x 1


• Bridged into 4ohms, 14.4V (≤1%THD+N): 200W RMS x 2

Sound Tuning

• Subsonic Filter (Subwoofer): 8-40 Hz (-24dB/oct) for Mono


• Crossover Frequency (LPF): 50-400 Hz (-24dB/oct) Mono


• Crossover Frequency (HPF): 50-400 Hz (-12dB/oct) Full-Range


• Equalizer (Bass EQ): 0-12dB

General

• Power Requirements: 14.4 V.DC (9 - 16 V allowable)


• Input Sensitivity (Speaker Level Input): 0.5 - 10V (CH1/2, CH3/4), 0.4 - 10V (Subwoofer)


• Input Sensitivity (RCA Input) : 0.2 - 4V (CH1/2, CH3/4), 0.1 - 4V (Subwoofer)


• High Level Input with automatic power on


• Cable size: Power Cable 4AWG (20mm2), SPK Cable 8AWG (8mm2)


• Frequency Response (+0, -3dB: 1W into 4 ohms) for CH-1/2/3/4: 10 - 60kHz


• Frequency Response (+0, -3dB: 1W into 4 ohms) for Subwoofer: 8 - 400 Hz


• THD+N (10W into 4 ohms): <0.02%


• THD+N (600W into 4 ohms): <0.07%


• Damping Factor for CH-1/2/3/4: >500


• Damping Factor for Subwoofer: >1000


• Signal to Noise (Rated Power into 4 ohms): >105dB (CH1-4)


• Signal to Noise (Rated Power into 4 ohms): >104dB (Mono)


• Weight: 3.3 kg

Dimensions

• Heat Sink (WxHxD) mm: 297 x 51 x 192
