Apraksts

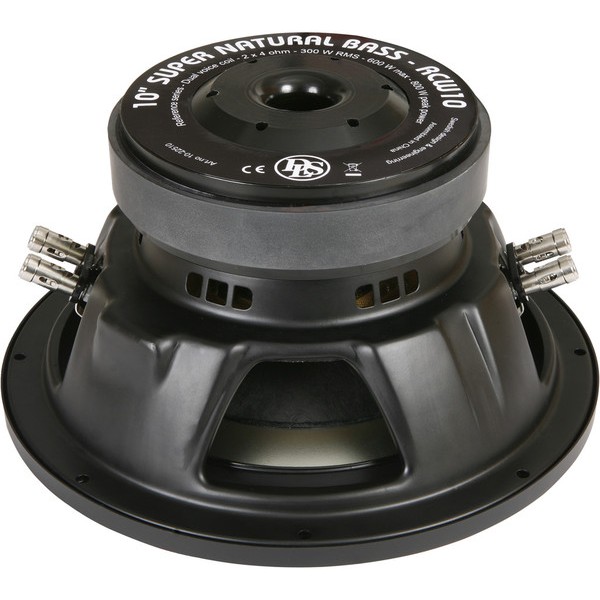

- Aluminum" one-cone body" without dust cap.
- Litz wires integrated in the spider for better reliability.
- Fat rubber suspension.

Dual 4 ohm voice coils, Use single voice coil connection or connect in parallel to 2 ohm for maximum output power from your mono amplifier.










Specifications
































































Woofer size 10" (25 cm)
Impedance 2 x 4 ohm
Power handling capacity 300 W RMS
Max power handling capacity 600 W
Peak power 800 W
Frequency range 25 - 1000 Hz
Magnet size 160 mm (6,3")
Sensitivity 84,4 dB (1W/1m)
Outer diameter of woofer 266 mm (10,5")
Mounting depth 133 mm (5,23")
Mounting hole 235 mm ( 9,25")
X-max +- 9 mm (0,35")
Weight 5,3 kg (11,7 lbs)
T/S parameters
single V/C





































Fs  28,4  Hz   Re  2x3,2  Ohm   Qms  3,33
Vas  36,9  liter   Vas  1,3  Cuft   Qes  0,81
Qts  0,65     Sd  353  cm²   BL  10,2

T/S-Parameters
(in parallel)




































Fs  28,2  Hz   Re  2x3,2  Ohm   Qms  3,43
Vas  37,6  liter   Vas  1,32  Cuft   Qes  0,42
Qts  0,37     Sd  353  cm²   BL  9,95
