Match UP 10DSP – 24V Edition

Compatibility:

Only for operation on 24 Volts vehicle electrical systems!





Technical data:



UP 10DSP – 24V Edition

Output power RMS

- @ 4 Ohms Channels A - H: 8 x 65 Watts

- @ 2 Ohms -

- @ 1 Ohm -

- bridged @ 4 Ohms -

- bridged @ 2 Ohms -

- Subwoofer output @ 4 Ohms Channels I - J: 2 x 90 Watts

- Subwoofer output @ 2 Ohms Channels I - J: 2 x 160 Watts

Amplifier technology Class GD

Inputs 8 x Highlevel speaker input

1 x Optical SPDIF (12 - 96 kHz)

1 x Remote In

Input sensitivity Channels A - F: 4 - 16 Volts

Channels G - H: 4 - 16 or 8 - 32 Volts

Input impedance RCA / Cinch -

Input impedance highlevel 9 - 33 Ohms with ADEP.3

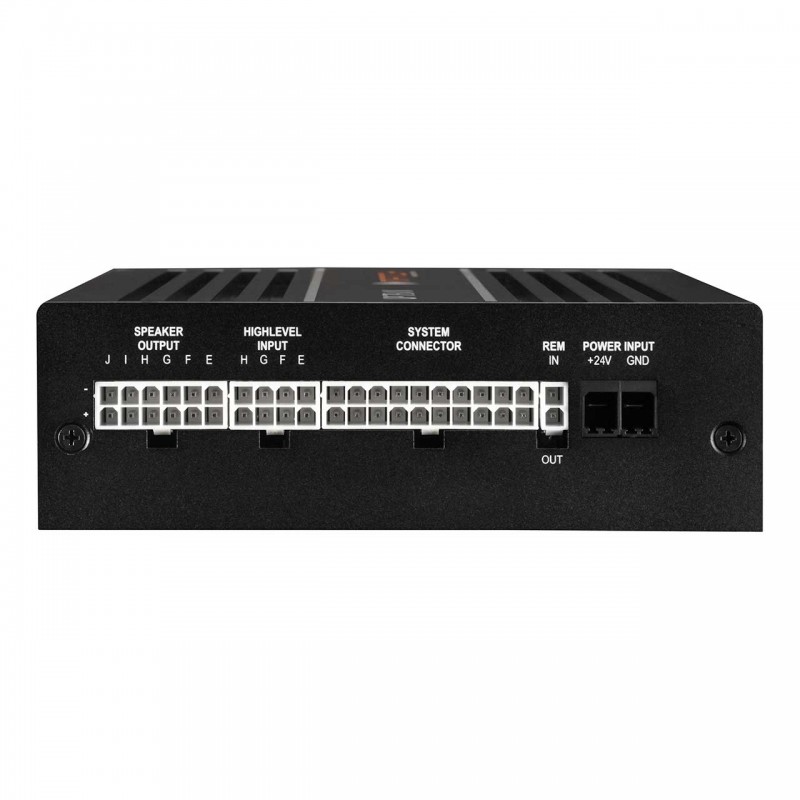

Outputs 10 x Speaker output

1 x RCA / Cinch

1 x Remote Out

Output voltage RCA / Cinch 3 Volts

Frequency response 10 Hz - 22,000 Hz

DSP resolution 64 Bit

DSP power 295 MHz (1.2 billion MAC operations/second)

Sampling rate 48 kHz

DSP type Audio signal processor

Signal converters A/D: BurrBrown

D/A: BurrBrown

Signal-to-noise ratio digital input 105 dB (A-weighted)

Signal-to-noise ratio analog input 103 dB (A-weighted)

Distortion (THD) 0.03 %

Damping factor 100

Operating voltage 18 - 36 Volts (max. 5 sec. down to 12 Volts)

Power rating DC 24 V ⎓ 32 A max.

Idle current 210 mA

Max. remote output current 500 mA

Operating temperature range -40° C to +70° C

Fuse 2 x 25 A LP-Mini-fuse (APS)

Additional features Class GD technology with dynamically controlled

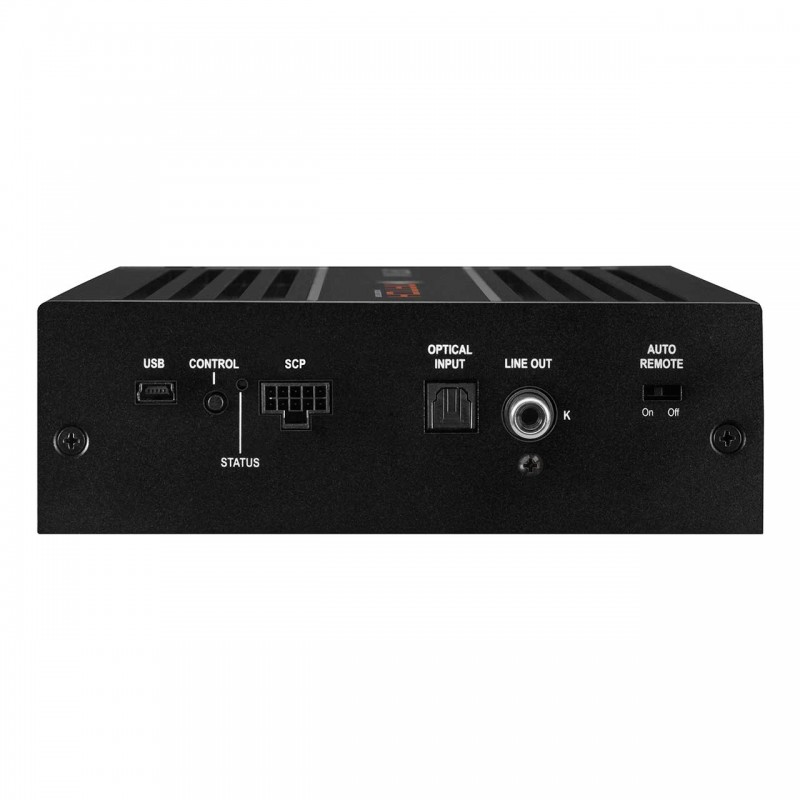

power supply, 32 Bit CoProcessor, ADEP.3 circuit, Start-Stop capability, Smart Control Port, USB, MEC slot, Auto Remote switch, galvanically isolated Line Out

Dimensions (H x W x D) 46 x 145 x 163 mm /

1.81 x 5.71 x 6.42″



Scope of delivery:



1 x MATCH UPGRADE amplifier UP 10DSP – 24V Edition

2 x Connection cable

1 x Mounting plates & material

1 x USB cable

1 x Instruction manual
