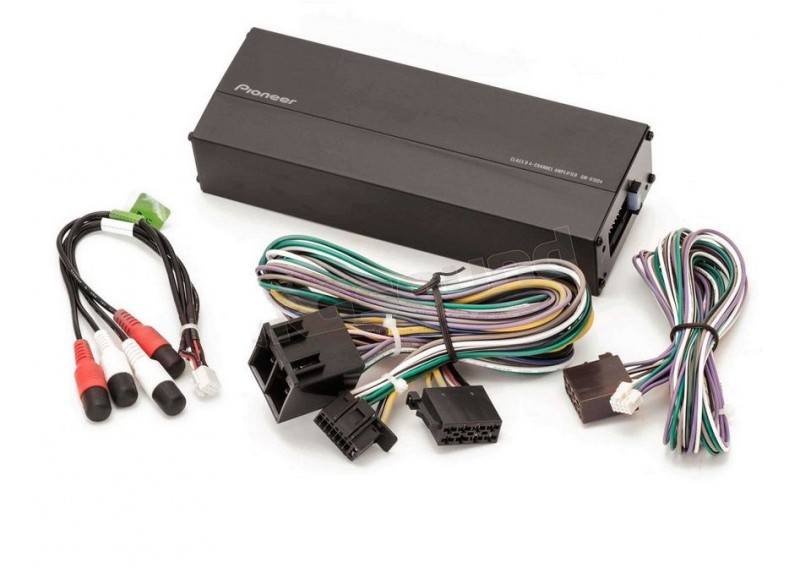

Pioneer GM-D1004 4-Kanālu Auto Pastiprinātājs

    Maximum Output Power

    4 x 100 W (4Ω)

    4 x 100 W (2Ω)

    2 x 200 W (4Ω bridge)

    RMS Power Output

    4 x 45 W (20 kHz - 20 kHz / 4Ω)

    2 x 90 W (1 kHz / 4Ω bridge)

    4 x 45 W (1 kHz / 2Ω)

    74 dBA (ref: 1 W into 4Ω)

    CEA 2006 Power (THD + N = 1%)

    Frequency response 10 - 40000  Hz

    Distortion < 0.05  %

    S/N ratio > 90 dB

    LPF 80 Hz (-12 dB/oct)

    HPF 80 Hz (-12 dB/oct)

    RCA terminals

    Speaker Terminals ISO-type

    Speaker line input sensor Turn-on sensor

    Max. current consumption (A/4Ω) 15 A

    Chassis size (W x H x D) 181 x 38 x 64 mm

    Unit weight 0.55 kg
