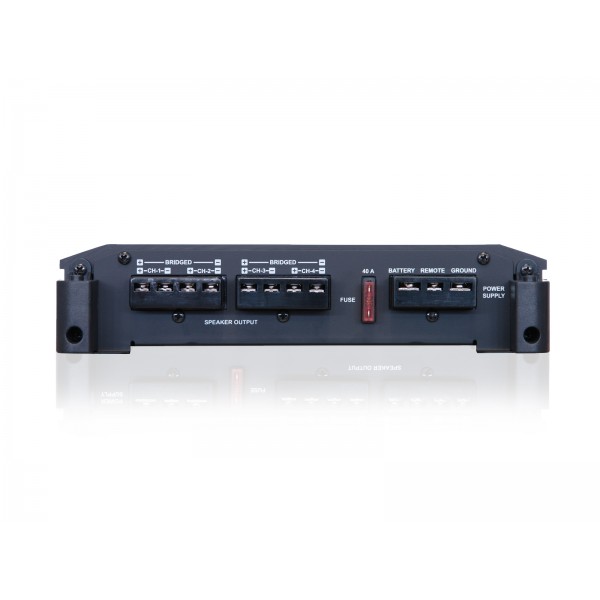

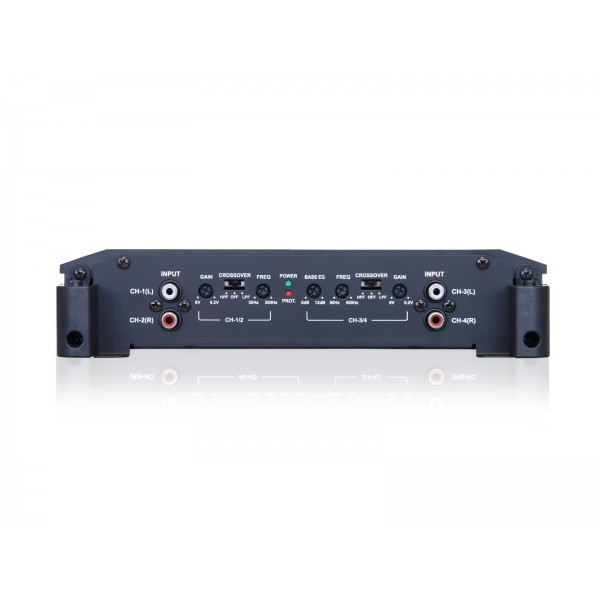

Alpine BBX-F1200

Max Power Output Ratings

• Total Max Power: 600W

RMS Power Ratings

• Per Channel into 4ohms (≤1%THD+N): 4 x 50W


• Per Channel into 2ohms (≤1%THD+N): 4 x 70W


• Bridged into 4ohms (≤1%THD+N): 2 x 130W

Sound Tuning

• Crossover Frequency (Variable, OFF/LPF/HPF Selectable)

  1/2 Ch: LP/HP:  50Hz – 500Hz

  3/4 Ch: LP/HP:  50Hz – 500Hz


• EQ (Equalizer): Bass EQ Fixed Frequency 45 Hz, Q=0.5, Variable Gain  0dB to +12dB (3/4 Ch only)

Dimensions

• Footprint: 330 mm x 52 mm x 240 mm

General

• Power Requirements: 14.4 V DC (11 V to 16 V)


• Input Sensitivity: 0.2 - 8.0 V


• Frequency Response: 5 Hz - 50 kHz (+ 0,-3 dB)


• Speaker Impedance: 4 or 2 Ω


• Signal to Noise: S/N Ratio (IHF A Weighted, Reference: rated power into 4ohms) 95 dB


• Weight: 2.7 Kg
