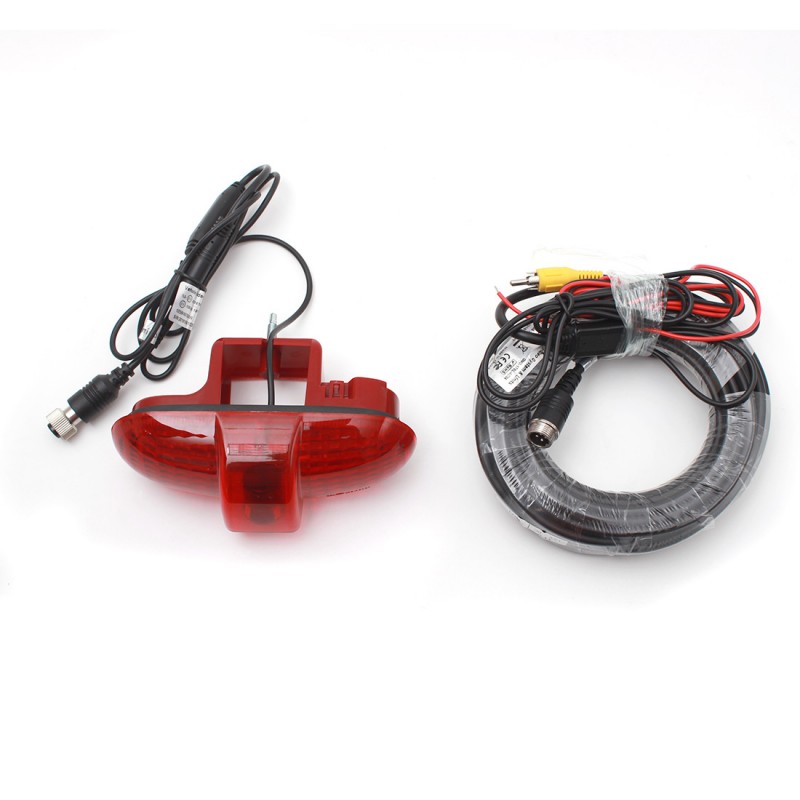

Atpakaļskata kamera bremžu lukturī Opel Vivaro A, Renault Trafic, Nissan Primastar REN-05

Suitable for cars:

• RENAULT Trafic II. (3 / 2001-2014)


• OPEL Vivaro I. (8 / 2001-2014)


• OPEL Combo (10 / 2001-1 / 2012)

Technical parameters:

• CCD 1/3" scanning chip


• lens focal point: f: 2.8mm


• TV system: NTSC


• video output: 1.0V / 75Ohm


• sensing angle: 170°


• weather protection: IP69K


• camera connector: 4-pin screwdriver


• monitor connector: CINCH (RCA)


• cable length: 10m


• number of scanning pixels: 510x492


• horizontal resolution: 420 TV lines


• white balance: automatically


• minimum lighting: 0.5 LUX


• signal-to-noise ratio:> 48dB


• Electronic shutter: 1/60 to 1/100000 sec.


• power consumption: <3W


• supply voltage: 12V


• operating temperature from -30 °C to + 70 °C


• homologated: yes

Dimensions:

• base 141 x 55 mm - oval


• embedded depth: 50mm

Installation:

The camera is integrated in the central brake light located in the left wing door, replacing the original brake light. The brake light signaling is provided with integrated LEDs. The connector is identical to the original connector.
