AI-SONIC S2-A100.4

RMS POWER (2ohm) 12v 1%THD 4 x 165W

RMS POWER (4ohm) 12v 1%THD 4 x 110W

BRIDGED POWER (4ohm) 12v 1%THD 2x330W

T.H.D 0,02% 4ohm, 0.04 % 2ohm

BANDWIDTH: 10Hz-40KHz

S/N RATIO(A-WEIGHTED): 105dB

INPUT SENSITIVITY: 0.5-6V

LOW PASS: x1: 50Hz-500Hz x10: 500Hz-5KHz

HIGH PASS: x1: 12Hz-250Hz (FRONT)

x2Q: 250Hz-5KHz (FRONT)

x1: 50Hz-500Hz(REAR)

x10: 500Hz-5KHz(REAR)

SUBSONIC: 12Hz -5KHz

CROSSOVER SLOPE: 12dB/oct

BASS BOOST: 0/6dB(@45Hz)

MODE: 2CH/4CH

POWER FUSE: 2x40A

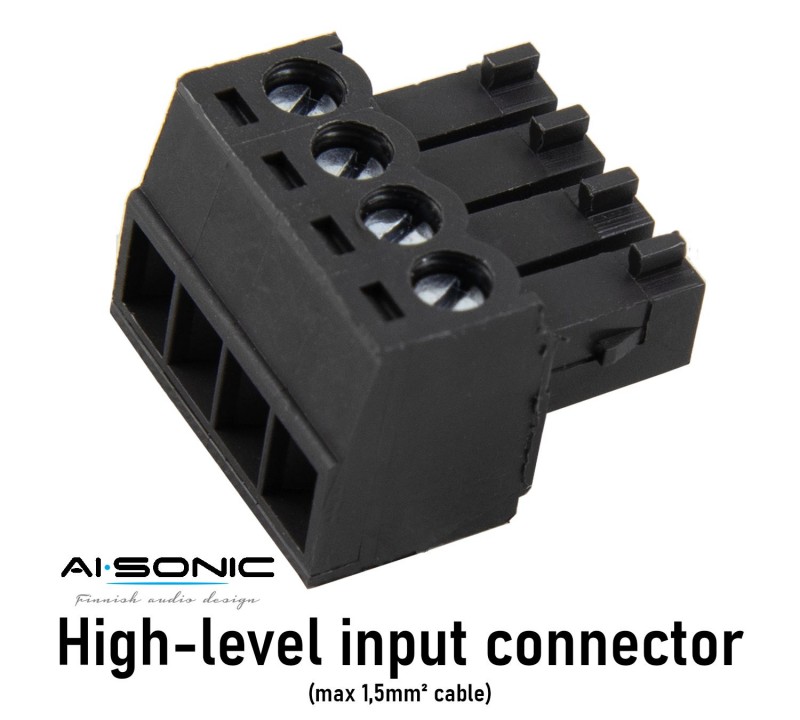

HIGH-LEVEL VOLTAGE: 0.75-9V



Cable fitting size:

+12V = 20mm2

GND = 20mm2

REM = 6mm2

SPEAKER = 6mm2



Current Draw (Max): 75A



DIMENSIONS: W: 183mm / (7.2IN)

H: 60mm / (2.4IN)

L: 444mm / (17.5 IN).
