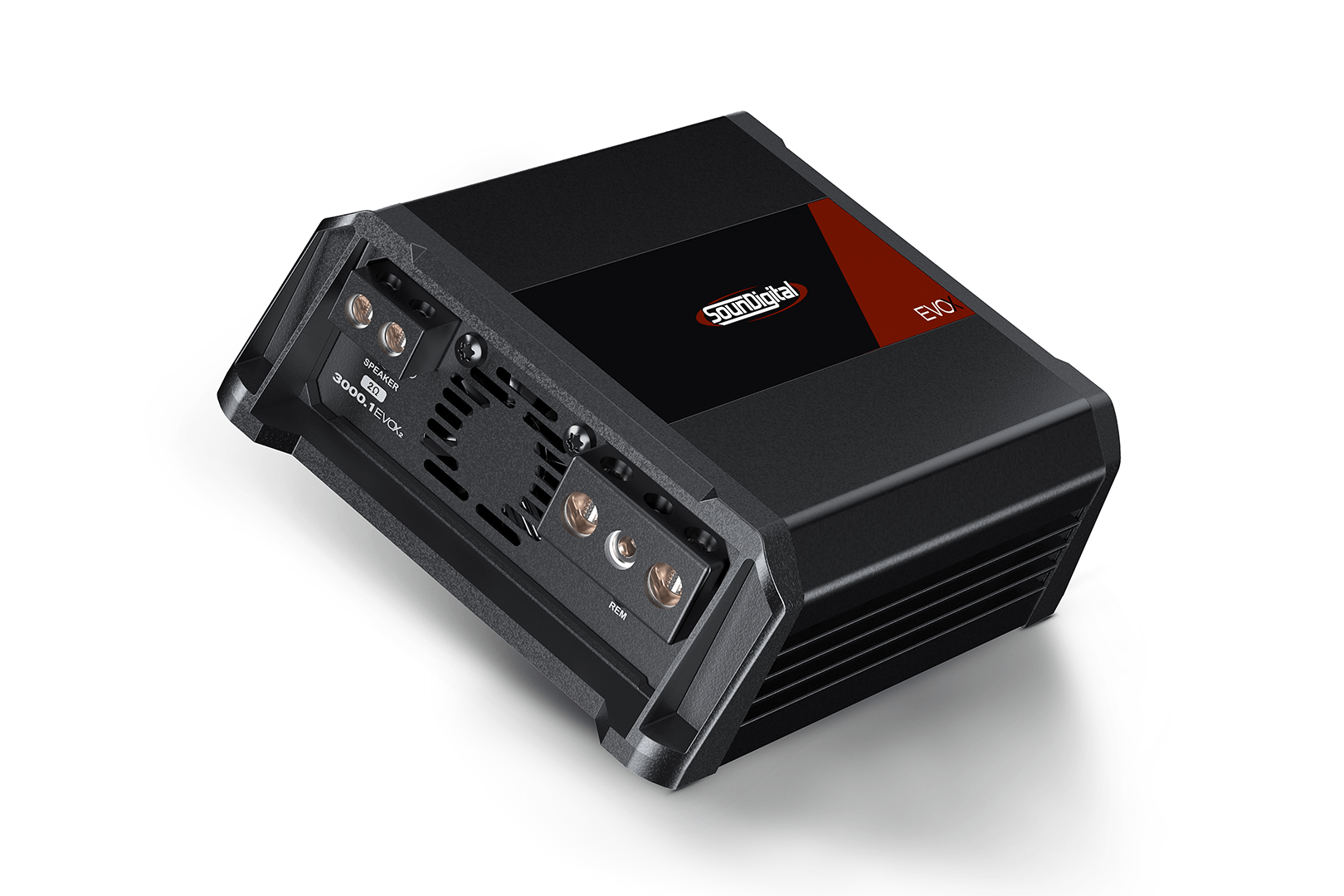

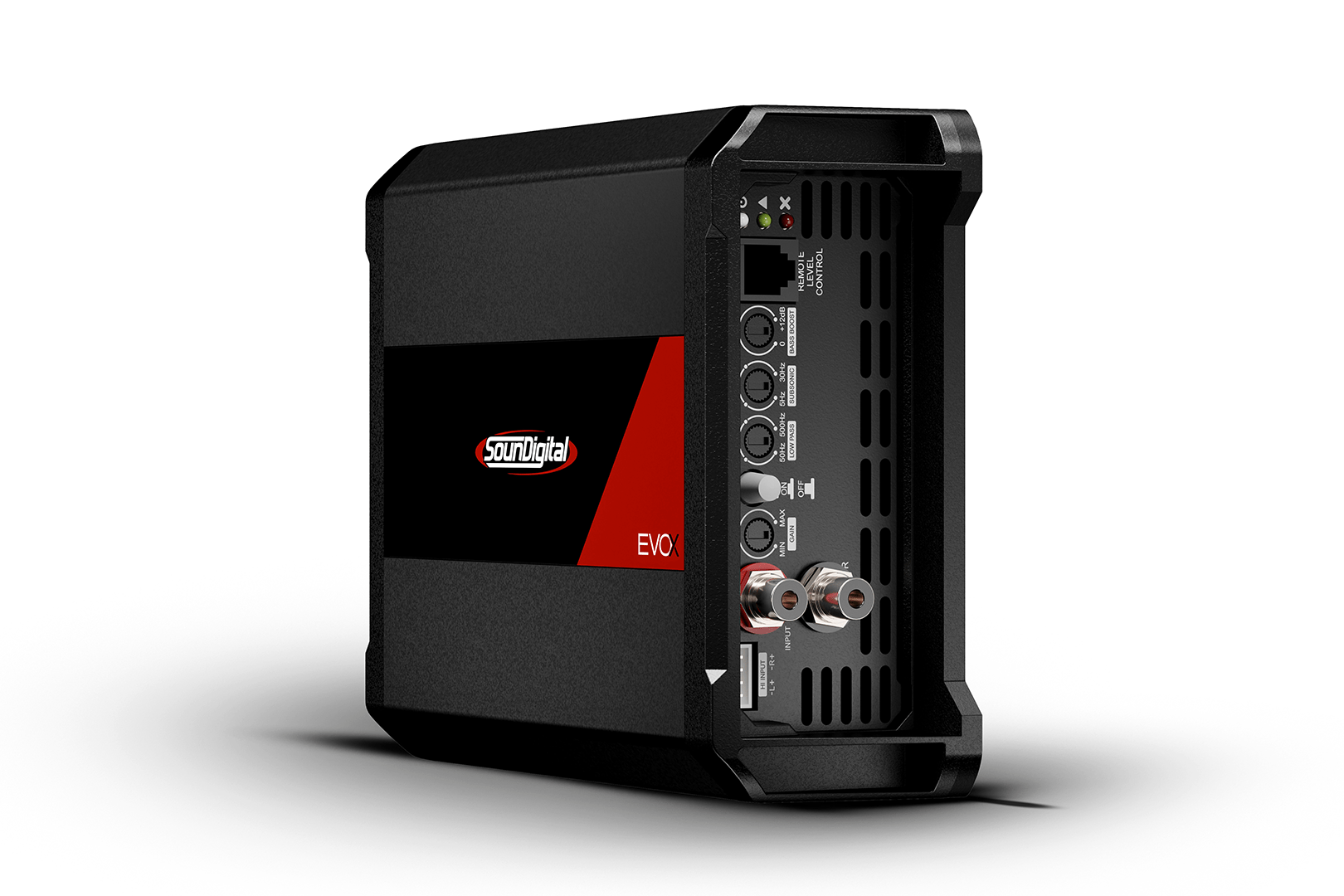

SounDigital SD3000.1 EVOX2 1 ohm

Power @ 1Ω: 1 X 3000W RMS

Power @ 2Ω: 1 X 1980W RMS

Power @ 4Ω: 1 X 1307W RMS



Frequency Response (-3dB):

5Hz – 25kHz



Subsonic Filter (12dB/octave):

5Hz ~ 40Hz



Low Pass Filter (12dB/octave):

50Hz ~ 500Hz



Bass Boost:

0dB ~ 12dB @ 50Hz



Operating Voltage:

8V ~ 16V



SNR:

1Ω: 92dB

2Ω: 90dB



Input Sensitivity (RCA):

0.2V ~ 2V



Input Sensitivity (High Level input):

1.4V ~ 14V



Current Draw (Music):

121A



Current Draw (Max):

242A



Total Efficiency:

86%



Damping Factor (@100Hz nominal impedance):

3000



Power Cable:

35mm² / 2AWG



Speaker Cable:

1Ω: 2 x 6mm² / 9 AWG

2Ω: 2 x 4mm² / 11 AWG



Recommended Fuse* (music):

150A



Recommended Battery (minimum):

150Ah



Width:

5.3 in / 13,6 cm



Length:

8.9 in / 22,8 cm



Height:

2.1 in / 5,5 cm
