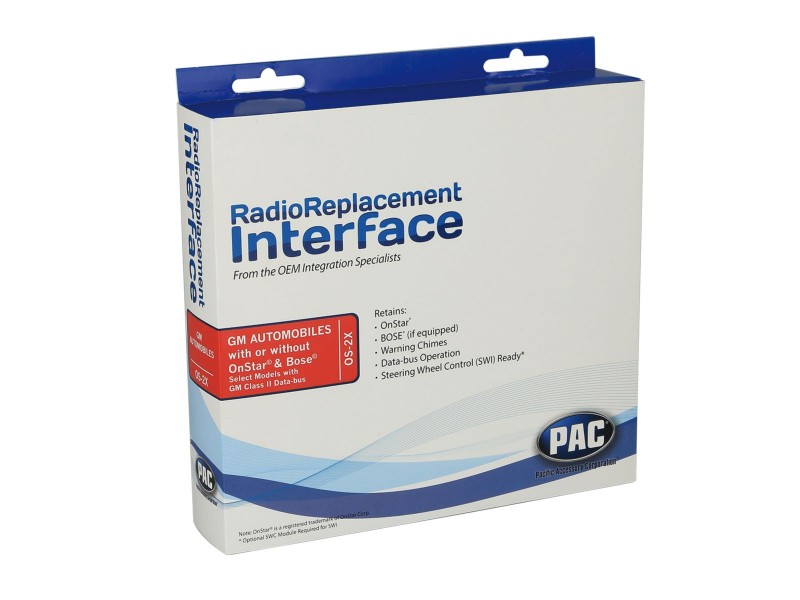

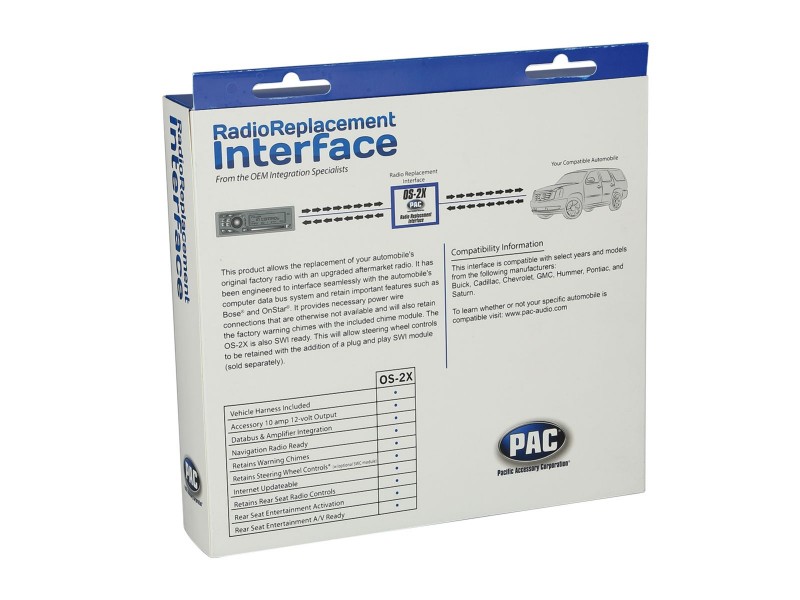

CAN-Bus adapter GM different vehicles 24Pin/12Pin Amp (41-1237-002)

CAN Bus ClassII



connector: 24 Pin / 12 Pin grey GM

connector: OEM Rear Seat Entertainment > RCA red/white



vehicles with ON-Star

vehicles with/without BOSE OEM amplified system

vehicles with/without OEM Rear Seat Entertainment



vehicles without front PDC



blue/white: +12V switched amp remote



SWC funktion additional SWC different US vehicles/Opel GT analog/CAN Bus: 41-1000-002



Vehicle application:



Buick

Buick Century 2004 - 2005

Buick Lacrosse 2005  -2007

Buick Rainier 2004 - 2007

Buick Rendezvous 2003 - 2007

Buick Terraza 2005 - 2007



Cadillac

Cadillac Escalade 2003 - 2006

Cadillac Escalade ESV 2003 - 2006

Cadillac Escalade EXT 2003 - 2006



Chevrolet

Chevrolet Avalance 2003 - 2006

Chevrolet Cavalier 2000 - 2005

Chevrolet Colorado 2004 - 2011

Chevrolet Corvette 2005 - 2013

Chevrolet ExpressVan 2004 - 2007

Chevrolet Malibu 2001 - 2003

Chevrolet Monte Carlo 2000 - 2005

Chevrolet S-10 Pickup 2003 - 2004

Chevrolet Silverado 2003 - 2006

Chevrolet Silveradeo Classic 2007

Chevrolet SSR 2003 - 2006

Chevrolet Suburban 2003 - 2006

Chevrolet Tahoe 2003 - 2006

Chevrolet Trailblazer 2002 - 2009

Chevrolet Uplander 2005 - 2008

Chevrolet Venture 2003 - 2005



GMC

GMC Canyon 2004 - 2011

GMC Enoy 2002 - 2009

GMC Savana 2003 - 2007

GMC Sierra 2003 -2006

GMC Sierra Classic 2007

GMC Yucon 2003 - 2006

GMC Yucon XL 2003 - 2006



Hummer

Hummer H2 2003 -2007

Hummer H3 2005 - 2010

Hummer H3T 2009 - 2010



Isuzu

Isuzu Ascender 2003 - 2008



Oldsmobile

Oldsmobile Alero 2001 - 2004

Oldsmobile Bravada 2002 - 2004

Oldsmobile Silhouette 2000 - 2004



Pontiac

Pontiac Aztek 2001 - 2005

Pontiac Grand AM 2001 - 2005

Pontiac Grand Prix 2004-2008

Pontiac Montana 2000-2006

Pontiac Sunfire 2000-2005



Saab

Saab 9-7X 2005 - 2008



Saturn

Saturn Relay 2005 - 2007



Following signals are provided:



Park brake

Reverse

Speed sense

Ignition R.A.P



OEM Rear Seat Entertainment

BOSE OEM amplified system (BOSE Premium amplified system no fader)

chimes

PDC rear

On-Star
