Helix CB C460.2-S3

Power handling RMS / Max. P 50 / 75 Watts

Frequency response 90 Hz - 22,000 Hz

Impedance Z 3 Ω

Sensitivity SPL 90 dB @ 2.83V / 1m

86 dB @ 1W / 1m

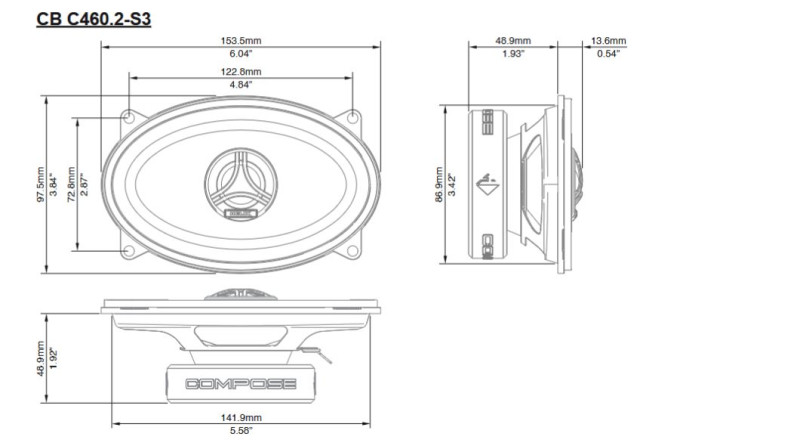

Outer diameter ø 153.5 x 97.5 mm / 6.04 x 3.84”

Installation diameter ø 141.9 x 86.9 mm / 5.58 x 3.42”

Installation depth 48.9 mm / 1.93”



Midwoofer

Impedance Z 3 Ω

DC resistance Re 3.1 Ω

Resonance frequency Fs 120 Hz

Mechanical Q factor Qms 6.18

Electrical Q factor Qes 1.14

Total Q factor Qts 0.96

Compliance Cms 204 μm/N

Equivalent air volume Vas 1.7 L

Force factor B*l 4.2 Tm

Cone area Sd 77 cm2

Moving mass Mms 8.7 g

Mechanical resistance Rms 1.06 kg/s

Voice coil diameter ø 25 mm

Voice coil winding height



8.9 mm

Max. linear excursion Xmax +/- 2.5 mm



Tweeter

Voice coil diameter ø 20 mm



Features

Tweeter Silk dome and neodymium magnet

Midbass

Injected polypropylene cone



Crossover Integrated, 6 dB highpass



Scope of delivery

2 x CB C460.2-S3

1 x Mounting material
