Alpine INE-F904DC

 FEATURES

Tuner

    Memory Presets: Preset Stations (FM: 12 / MW: 6 / LW: 6)

    Memory: Auto Memory

    Seek Mode: Local / DX Selection

RDS

    RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT

DAB Tuner

    DAB+ Tuner Built-in

    DAB+/DMB Supported

    DAB+ Slideshow Service

    DLS (Dynamic Label Service)

    DAB Service Following

    RDS Fallback (where available)

    Service Preset: 18 Preset Memory

    Auto Ensemble/Service Memory

    Service Search Function

    PTY Search Function

    Alphabet Search Function

    Antenna Power Supply Selection

BLUETOOTH®

    Built-in BLUETOOTH® Module

    Wide Band Speech Technology

    HFP (Hands-Free Profile) Compatible

    Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible

    Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible

    Connection: SSP (Simple Secure Pairing) Supported

    Individual Profile Connection Hands Free Phone and Music Streaming

    Phone Book: Phone Book Synchronization

    Speed Dial: 4 Preset Memory (per phone)

    Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name

    Call History Display: Outgoing Calls / Incoming Calls / Missed Calls

    Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume

    Signal Strength Indicator

    Battery Level Indicator

    Menu Language Selection: 24 Languages

    Firmware Updatable

    Microphone Included

Made for iPod® / iPhone®

    Connection: KCU-471i Required (Sold separately)

    Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook

    Alphabet Search

    Artwork Display

    Direct Up / Down: Playlist / Artist / Album / Genre / Composer

    M.I.X. (Shuffle) Play: Song, Albums, All

    Repeat

    Battery Charging

Connectivity

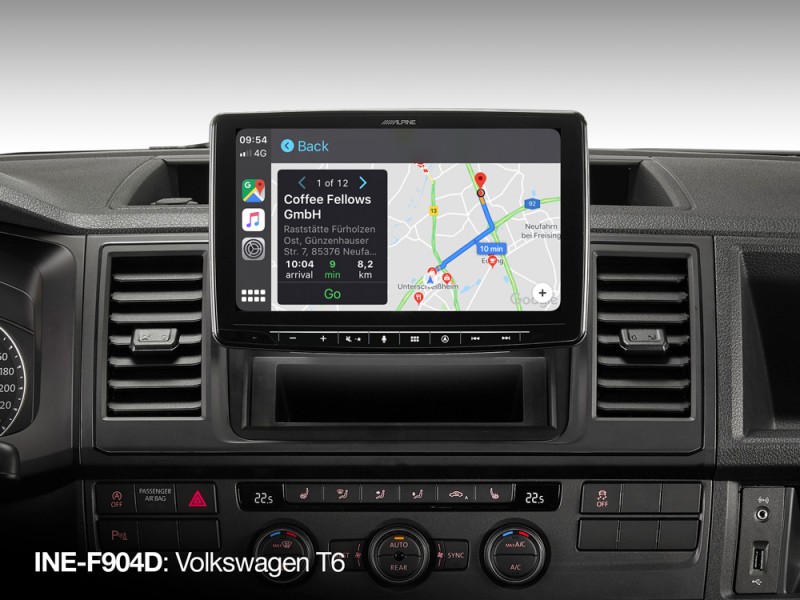

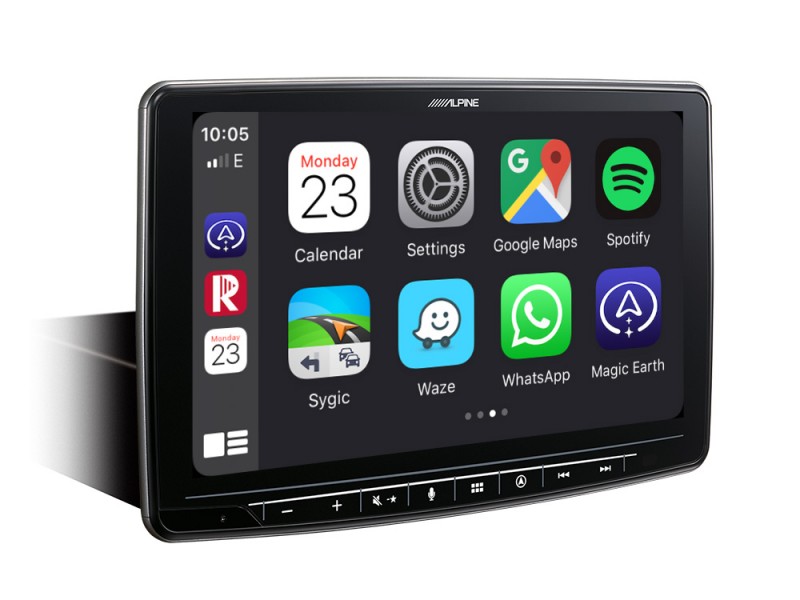

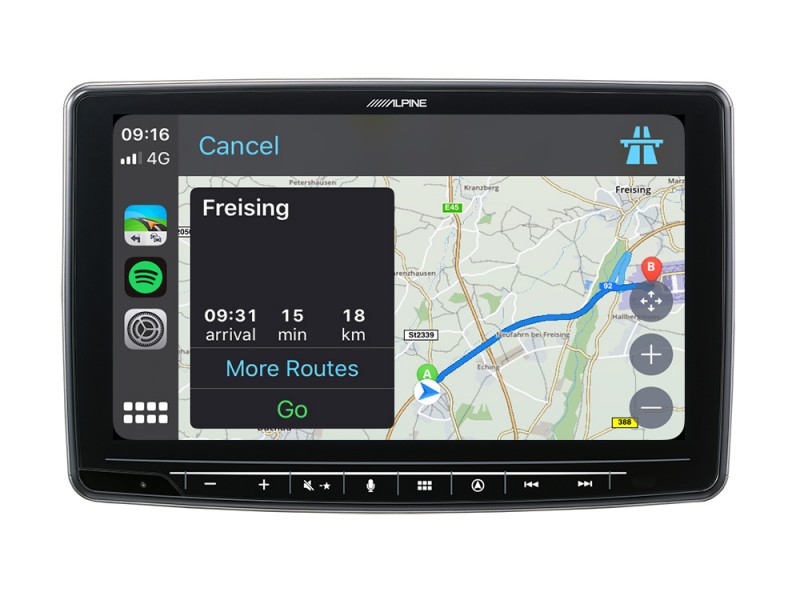

    Works with Apple CarPlay (requires CarPlay enabled iPhone)

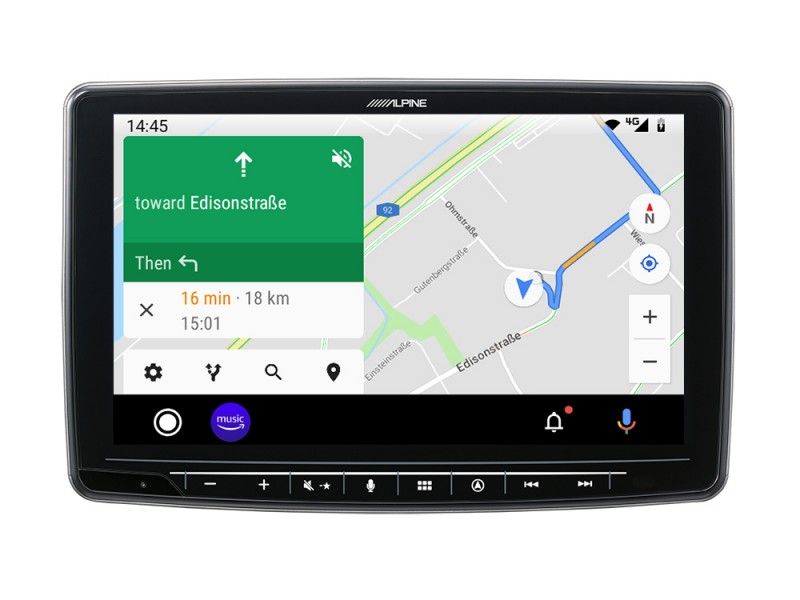

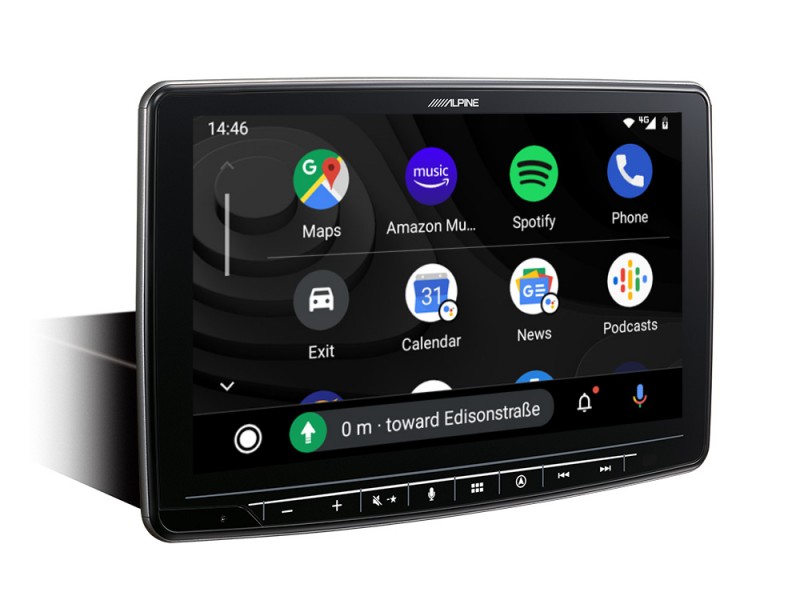

    Works with Android Auto (Requires Android Auto enabled smartphone)

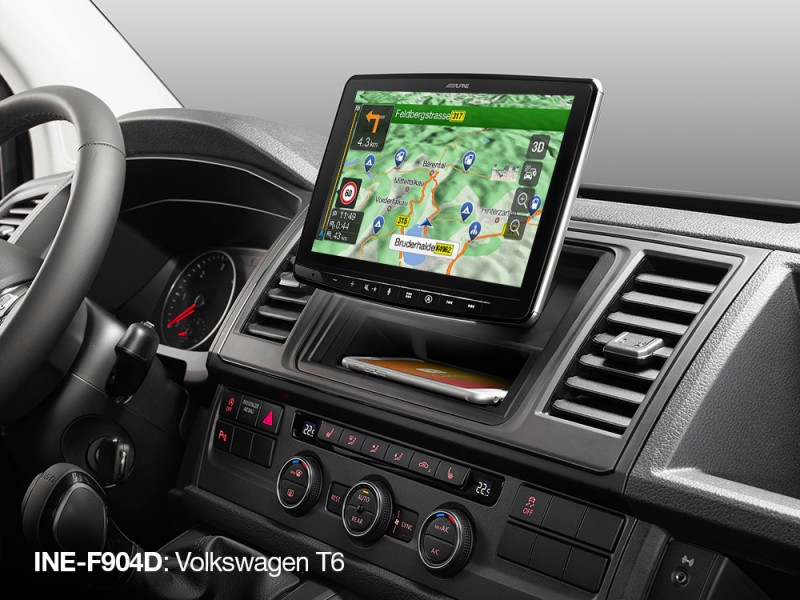

Navigation Functions

    Map Coverage: 46 Countries (Western and Eastern Europe) by TomTom maps

    3 years free-of-charge map update

    Menu Language: 29 Languages

    Voice Guidance Language: 29 Languages for Voice Guidance, 15 Languages for Text-to-Speech (TTS)

    Advanced Address Search

    Post Code Search

    Free Form Search

    Partial Name Search

    Advanced POI Functions

    Smart Routes: Smart Routes using historic traffic patterns

    Advanced Route Planning

    Eco Route Search

    7 Alternative Route Recommendation

    Advanced TMC Mode

    Map Display Mode: 2D Heading Up, 2D North Up, 3D

    3D City Mode: 3D Building/Icon Display

    Elevation Map Display: 3D maps with elevation mode

    3D Motorway Junction View: Junction View with Sign Post

    Drive Lane Suggestion

    Tunnel Mode

    Highway Mode

    Voice Guidance Mixing

    Text-to-Speech

    Direct Phone Call from POI data

    3 Positioning Sensors: GPS / Glonass, Gyroscope, Vehicle Speed Pulse

USB Media Connection

    USB Connection: USB Extension Cable Included

    Music Playback: FLAC/MP3/WMA/AAC compatible

    Video Playback: MP4 compatible

    File / Folder Name Search

    Tag Info Search

    Folder Up / Down

    M.I.X. Random Play

    Repeat

Sound Tuning

    Bass Engine SQ

    Bass Engine™ Pro

    Subwoofer Level Adjustment

    Subwoofer Phase Select

    4V High Voltage PreOut

    Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical

    Dual HD EQ (9-band Parametric Equalizer front/rear)

    6 Channel Digital Time Correction

    Digital Crossover Setting

    Customized Sound Setting by Car Type

    MediaXpander HD

    Application Volume Level Setting

    Sound Setting Data Download

    Easy, Step-by-Step Sound Customization

    Alpine TuneIt App ready

General

    Power Output: 4 x 50 W High Power Amplifier

    Advanced Power IC

    Display: 9-inch Capacitive WVGA High Resolution Display

    White LED Backlighting System

    Control Type: Touch, Drag, Flick

    My Favorites Function

    Automatic Setting Change for 2 Users

    AUX-In: 1 A/V AUX Input (3.5mm micro jack)

    Steering Wheel Remote Control Function

    Vehicle Display Interface Ready (UART connection)

    Camera Connection & Built-in Controls for Multi-View Cameras

    Camera Guide Line Adjustment

    Rearview Camera Display Automatic Boot-up

    Menu Language: 24 Languages (for AV / Bluetooth),

    Clock

    Auto Dimmer

    Anti-theft security code

    Firmware Updatable

    Power Antenna Lead

    Remote Turn-On

    HDMI Input (Alpine Special HDMI connector required)

    Engine Start-Stop unaffected

Installation

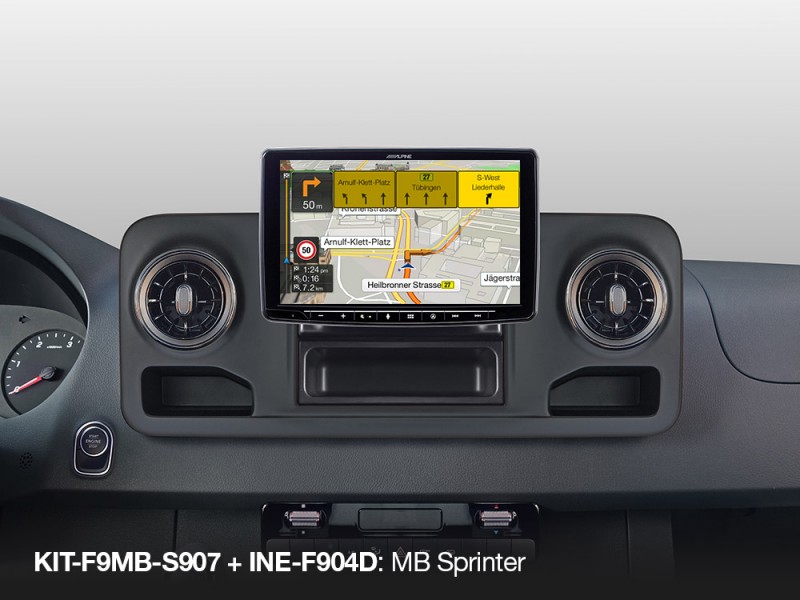

    Perfect F.I.T. Kit Solutions available

SPECIFICATIONS

Screen

    Screen Size: 9-inch Capacitive WVGA

    LCD Type: Transparent Type TN LCD

    Operation System: TFT Active Matrix

    Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)

    Illumination System: White LED Backlighting

    Effective Number of Picture Elements: 99.99%

    Colour System: NTSC, PAL

Max Power Output Ratings

    Max Power Output: 4 x 50 W

FM Tuner

    Tuning Range: 87.5 - 108.0 MHz

    Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)

    50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)

    Alternate Channel Selectivity: 80 dB

    Signal-to-Noise Ratio: 65 dB

    Stereo Separation: 35 dB

    Capture Ratio: 2 dB

MW Tuner

    Tuning Range: 531 - 1,602 kHz

    Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf

LW Tuner

    Tuning Range: 153 - 281 kHz

    Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf

USB

    USB Requirements: USB 2.0

    Max. Power Consumption: 1,500 mA (CDP Support)

    USB Class: Mass Storage Class, Play From Device

    File System: FAT 16/32

    MP3 Decoding: MPEG-1/2 AUDIO Layer-3

    WMA Decoding: Windows Media™ Audio

    AAC Decoding: ACC-LC format ′′.m4a′′ file

    FLAC Decoding

    Number of Channels: 2-Channel (Stereo)

    Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate

    Total Harmonic Distortion (at 1kHz): 0.008%

    DynamicRange(at 1kHz): 95 dB

    Signal-to-Noise Ratio: 100 dB

    Channel Separation (at 1kHz): 85 dB

GPS / Glonass

    GPS / Glonass compatible navigation antenna included

BLUETOOTH®

    BLUETOOTH® Version: Bluetooth V2.1+EDR

    Output Power: +4 dBm Max. (Power class 2)

    HFP (Hands Free Profile)

    OPP (Object Push Profile)

    PBAP (Phone Book Access Profile)

    HSP (Head Set Profile)

    A2DP (Advanced Audio Distribution Profile)

    AVRCP (Audio/Video Remote Control Profile)

    SPP (Serial Port Profile)

Sound Tuning

    Subwoofer Level Adjustment: 0 to +15

    Subwoofer Phase Setting: 0° or 180°

    BASS ENGINE SQ: 5Mode, Level 0 to +6

    HighPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz

    HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.

    HighPassFilter (Gain): -12 to 0 dB

    LowPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz

    LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.

    LowPassFilter (Gain): -12 to 0 dB

    Time Correction: 0.0 - 9.9ms (0.1ms step)

    Dual HD EQ Front + Rear

    Parametric Equalizer (Band 1): 20 - 100 Hz

    Parametric Equalizer (Band 2): 63 - 315 Hz

    Parametric Equalizer (Band 3): 125 - 500 Hz

    Parametric Equalizer (Band 4): 250 - 1k Hz

    Parametric Equalizer (Band 5): 500 - 2k Hz

    Parametric Equalizer (Band 6): 1k - 4k Hz

    Parametric Equalizer (Band 7): 2k - 7.2k Hz

    Parametric Equalizer (Band 8): 5.8k - 12k Hz

    Parametric Equalizer (Band 9): 9k - 20k Hz

    Parametric Equalizer (Gain): -14 to +14

    Application Volume Level Setting: -14 to +14

HDMI Section

    Input Format 480p / 720p

General

    Power Requirement: 14.4 V. DC (11-16V allowable)

    Pre Output Voltage (Before Clipping): 4 V / 10k ohms

    Maximum Mounting Angle: 30°

Dimensions

    Din Size: 1DIN chassis and 9” Capacitive Touch Screen

    Chassis Size (W x H x D) mm: 178 x 50 x 160 mm

    Nose Piece Size (W x H x D) mm: 235.2 x 152.2 x 19 mm
