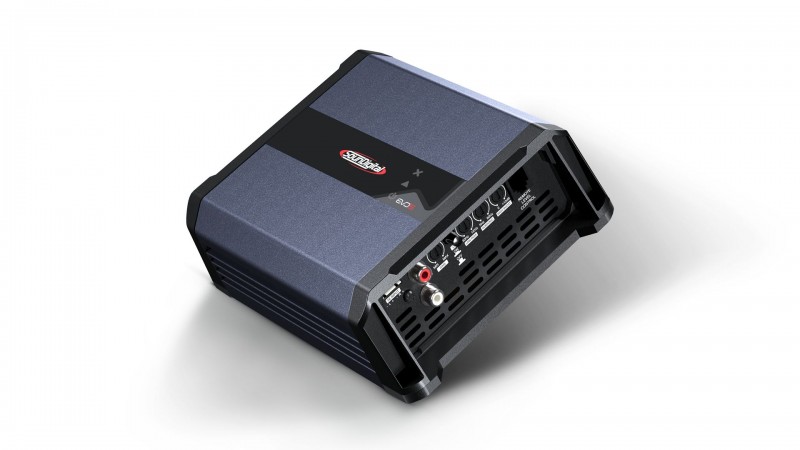

SounDigital 1200.1-1 EVO5 1 ohm

Power @ 4Ω: 1 X 522 WRMS

Power @ 2Ω: 1 X 792 WRMS

Power @ 1Ω: 1 X 1200 WRMS

Frequency Response (-3dB):

5Hz ~ 25kHz

Subsonic Filter:

5Hz ~ 80Hz

Low Pass Filter:

50Hz ~ 1kHz

Bass Boost:

0dB ~ 12dB @ 50Hz

Operating Voltage:

9V ~ 16V

Signal-Noise Ratio:

95dB

Input Sensitivity:

0.2V ~ 2V

Current Draw (Music):

1Ω: 54A

2Ω: 52A

Current Draw (Max):

1Ω: 108A

2Ω: 105A

Total Efficiency:

1Ω: 88%

2Ω: 91%

Damping Factor:

2000

Power Cable:

16mm² (5 AWG)

Audio Output Cable:

1Ω: 2 x 4 mm² (6 AWG)

2Ω: 2 x 2,5 mm² (13 AWG)

Recommended Fuse (Music):

70A

Recommended Battery:

70Ah

Width:

13.6 cm / 5.4 in

Length:

18 cm / 7.1 in

Height:

5.48 cm / 2.1 in

Weight:

1.12 Kg.
